Main application:

Stratum structure divide

Well wall stratum crack

Karst development discrimination

Distinguish fractured development zone

Determine the karst distribution position

Long time underground borehole monitoring

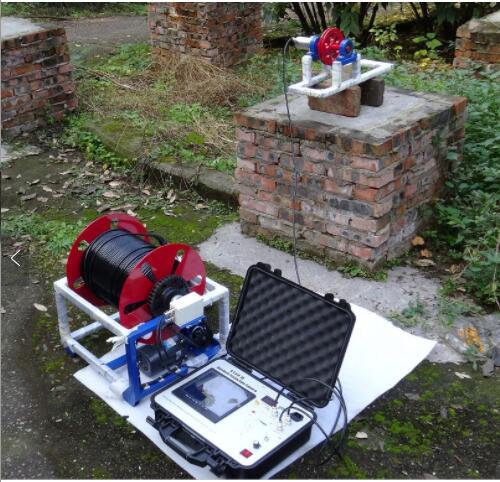

Underwater well camera inspection Borehole Camera and water well camera for Selling

System component:

Main instrument, well logging probe, winch and cable, ground displayer, DVR

Underwater well camera inspection Borehole Camera and water well camera for Selling

Technical specification:

Power: AC220V±10% 50 HZ

Inspection Depth: 02000m

Depth counter: High precision photoelectric counter, accuracy 0.05mm

Probe: High temperature: 90150°C Diameter 80mm

Low temperature 70°C       Diameter 80mm

Length: 460mm                 Pressure: 020Mpa

(Option according to customer requirements)

Temperature display: Temperature realtime record according to probe submerged

Depth

Waterproof Sony Camera:

Inductor sensor: 1/3"  CCD

Minimum illumination color 0.01Lux

Resolution:  ≥  850 Line camera
