Applications:

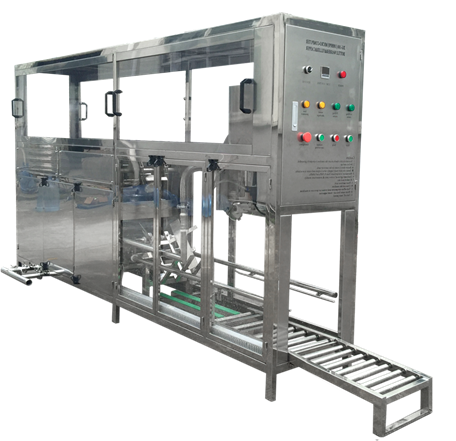

• the equipment is applied with 5gal bottles(bottles of 1, 2, 3, 4 and 6gal can also be applied, but the sample bottle shall be provided). as the equipment integrates the process of bottle washing, cap mounting, cap pressing and finished product delivering.

Advantages
1. Protection for power leakage and short circuit
2. Lower-pressure protection: when incoming air's pressure is≦0.5Mpa, the equipment will be automatically stopped.
3. Water-shortage protection: when level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped.
4. Low water level protection water tank (water tank with filler's water supply): when the water level of the tank is lower than hat of the liquid switch, the equipment will be automatically stopped.
5. Special filling principle-dual filling(at the early filling stage, the two filling valves work simultaneously, after some time, the auxiliary filling valve stops working, while main filling valve keeps working), avoid water waste.
6. Filling time adjustable 0.1S-1S, ensuring the precision of filling amount.
7. We can add other function as customer's requirements, such as hot water washing, cap washing, daily counter, user-friendly interface control, etc.
8. Washing, filling, capping integrated, high quality of stainless steel.
9. Precise filling avoid spill and wastage, micro-computer controlled.
Process flow
An empty barrel--Feed  Bottle Manually--Auto De-capping  Machine--Two Station External Brusher--Two Station Bottle Auto Loading System--XG-100(300BPH)washing-filling-capping machine--LE
