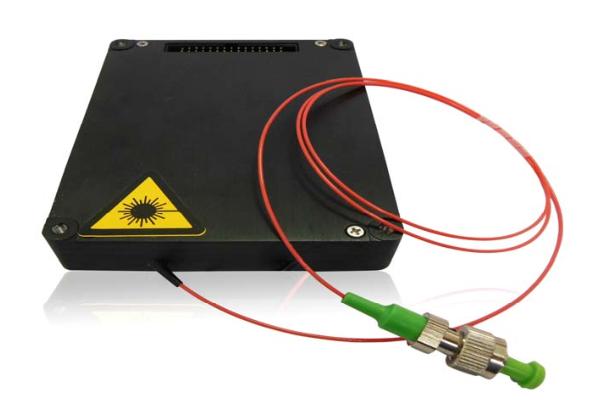

Techwin (China) 1064nm Short Pulse Fiber Laser for LiDAR with High Peak Power
Our products are similiar to keopsys, NKT Photonics, NP Photonics, IPG Photonics, BKtel Photonics.
Product Description:
Techwin 1064nm pulse fiber laser for LiDAR is a high peak power, high pulse energy
Fiber laser source. Using MOPA configuration and all-fiber optimized design offer the
High peak power and near diffraction-limited quality output beam. Techwin 1064nm
Pulse fiber laser for LiDAR is ideal sources for LiDAR applications of 3D scanning,
Telemetry and range finding.
Techwin 1064nm pulse fiber laser for LiDAR employ module package with compact
and rugged design, integrated with external trigger and monitor output for
Synchronization. It is easily deployed and maintenance-free, ensuring a long-life and
Cost-effective operation. the user also can adjust pulse width and repetition rate of the
Laser by connecting computer. It is suitable for system integration.
Features:
High peak power: up to 10kW
Average power: 5W
Repetition rate adjustable: 30-500 kHz
Pulse energy: 100uJ
Excellent beam quality
Applications:
LiDAR
3D scanning
Range finding
Target detection
Telemetry
1.Pulse width is adjustable;
2.Frequency is adjustable;
3.the output power stability is measured under 25℃, 30mins after warm-up;
4.the beam quality is related to the output power.
