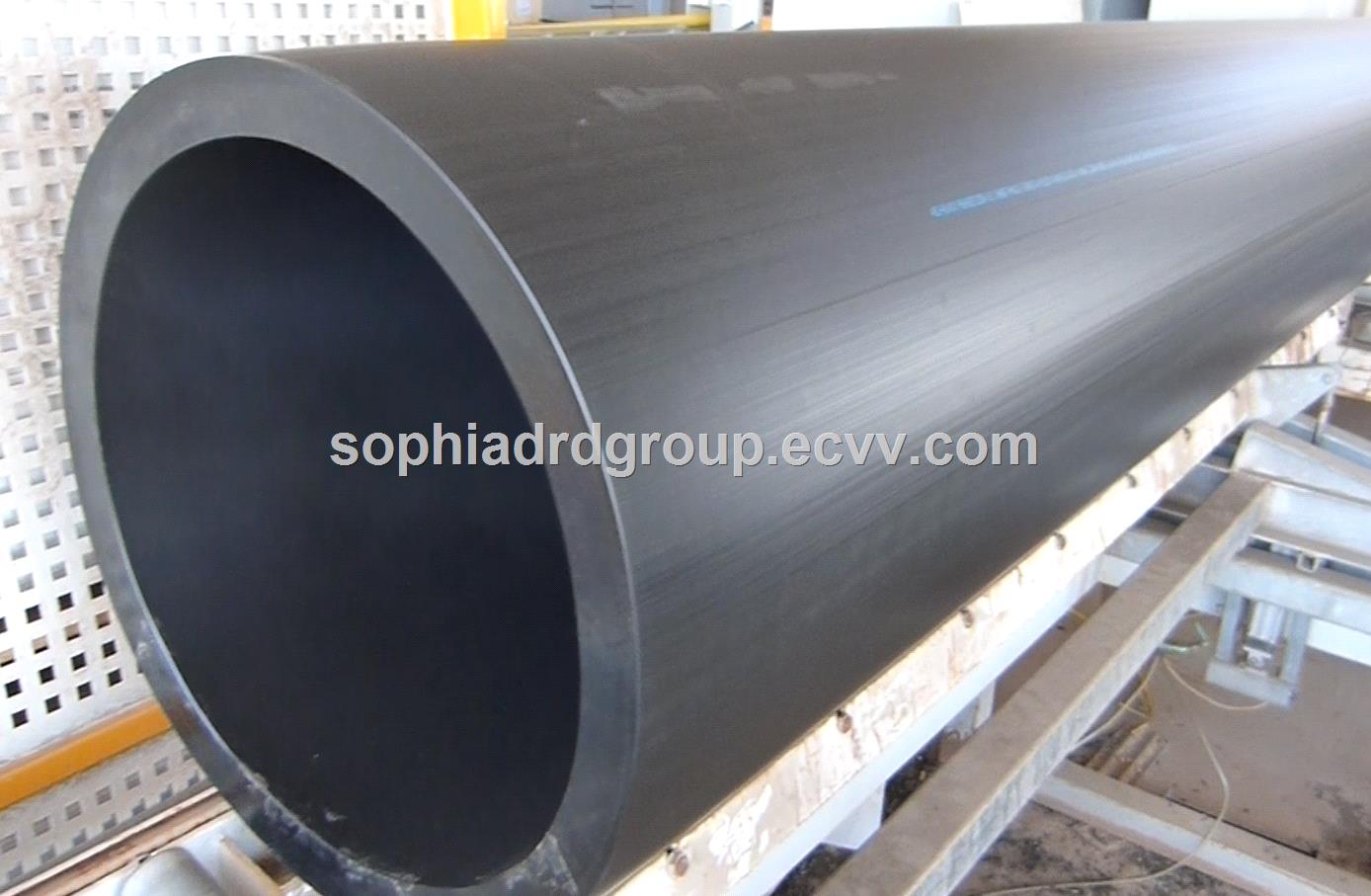

Product name: Factory Outlet HDPE Pipe 1 inch Black Plastic Water Pipe Roll for Water Supply

Diameter: 20mm 1600mm

Standard: ISO4427, as/NZS4130, DIN8074, GB/T13663-2000

Materials: PE100, PE80

Color: Black with blue line, White, Blue, Orange or as client's requirement.

Fittings offered: All

Specification:

PE100	0.4MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	20MPa	25MPa
PE80	0.32	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1.2.5MPa	16MPa	20MPa
Outside Diameter	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9	SDR7.4
	Wall Thickness
20	-	2.0	2.0	2.0	2.0	2.3	2.3	3.1
25	-	2.0	2.0	2.3	2.3	2.3	2.8	3.5
32	-	2.0	2.3	2.3	2.4	3.0	3.6	4.4
40	-	2.3	2.3	2.4	3.0	3.7	4.5	5.5
50	-	2.3	2.4	3.0	3.7	4.6	5.6	6.9
63	2.3	2.5	3.0	3.8	4.7	5.8	7.1	8.6
75	2.3	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	2.3	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	2.7	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	3.1	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	3.5	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	4.0	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	4.4	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	4.9	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	5.5	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	6.2	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	6.9	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11.0	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	19.1	23.9	29.7	36.8	45.4	55.8
560	13.7	21.4	26.7	33.2	41.2	50.8	62.5
630	15.4	24.1	30.0	37.4	46.2	57.2	70.3
710	17.4	27.2	33.9	42.1	52.2	64.5	79.3
800	19.6	30.6	38.1	47.4	58.8	72.6	89.3
900	22.0	34.4	42.9	53.3	66.2	81.7
1000	24.5	38.2	47.7	59.3	72.5	90.2
1200	29.4	45.9	57.2	67.9	88.2	-
1400	34.3	50.6	66.7	82.4	102.9	-
1600	39.2	57.9	76.2	94.1	117.6	-

Features of HDPE water pipe:

1. Nontoxic:

HDPE pipe material is nontoxic and tasteless. It belongs to green building materials, never scalling, which can effectively improve the water quality.

2. Corrosion resistance:

High resistance to attack from various types of chemicals. No electrochemical corrosion.

3. No Leakage:

HDPE pipe is connected in the ways of butt fusion, socket fusion and electrofusion and the strength of joint point is higher than tube itself.

4. Higher flow capacity:

the smooth inner wall is easy for pipeline transportation. under the same condition, delivery capacity can be increased by at least 30%.

5. Convenient for construction and installation:

HDPE pipe could be installed in a variety of trenchless ways, so it is very convenient for

Construction and installation.

6. Lower system and maintenance costs:

HDPE pipe is not only convenient to transport and install, but also reduce the worker's

Labor intensity and improve work efficiency.

7. Longevity of working life:

More than 50 years under pressure use.

8. HDPE pipe is recycled and Environment-friendly.

Application of HDPE water pipe:

1. Urban tap water pipe network system:

Large diameter HDPE pipe is health non-toxic, not fouling, more suitable for urban water supply main conduit and buried tube, safety, hygiene, convenient construction.

2. Replaceable cement tubes, iron pipe and steel tube: Used for old nets renovation project, don't need large area excavation, low cost, can be widely used in old town of pipe network reconstruction.

3. Industrial materials duct: Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.

4. Landscaping water supply network: Landscaping need lots of water pipe, HDPE pipe toughness and low cost, make it become the best choice.

5. Sewage discharge pipes: HDPE pipe have unique corrosion resistance, can be used in industrial wastewater, sewage discharged pipe,low costs and maintenance costs.

6. Ore, mud transfers: HDPE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.

7. Agricultural irrigation pipe: HDPE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for agricultural irrigation.
