| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Outline Dimension: | 4640x2250x2250mm |
| Charging Capacity: | 1600L |
| Brand Name: | Famous |
| Condition: | New |
| Discharge Way: | hydraulic |
| Working Cycle Period: | 60s |
| Water Supply Mode: | water pump |
| Reclaiming capacity: | 1000L |
| Mixing Power: | 37kw |
| Model Number: | FS128 |
| Place of Origin: | China (Mainland) |
| Model: | JS1000 concrete mixer |
| Theoretical capacity: | 50m3/h |
| Aggregate sizes: | 60/80mm |
| Mixing blade: | 2*8 pcs |
| Weight: | 9880kg |
| (L x W x H)mm: | 4640x2250x2250 |
Quick Details
Specifications

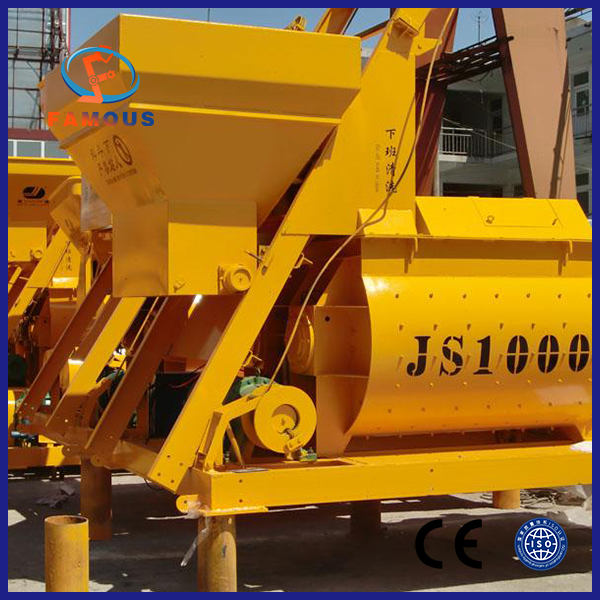

JS1000 Concrete Mixer is twin shaft compulsory concrete mixer. It can mix dry concrete, plasticity concrete, wet concrete, light aggregate concrete and various mortars. There are high manganese wear-resisting cast steel lining boards and mixing blades inside the mixer, which is durable and convenient to replace. Combining with different PLD concrete batching machines, various kinds of concrete batching plant can be formed.
Parameter Model |
JS1000 | |
Discharge volume |
1000L | |
Charging volume |
1600L | |
Theoretical capacity |
≥50m3 | |
Aggregate sizes |
≤60/80mm | |
Working circle |
60s | |
Mixing blade |
Speed |
25.5r/min |
Quantity |
28 | |
Mixing motor |
Model |
Y225S-4 |
Power |
37 kw | |
Lifting motor |
Model |
YEZ160L-4 |
Power |
11 kw | |
Pump motor |
Model |
KQW65-100 |
Power |
3 kw | |
Weight |
9880kg | |
Dimensions |
4640x2250x2250 | |
