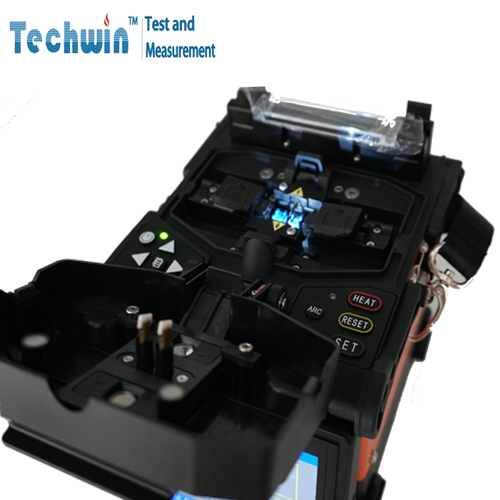

Techwin (China) Fusion Splicer TCW-605E for automatically

We will try our best to provide products similar to Fujikura Fusion Splicer like Core Alignment Fusion Splicer 90S and the 70R+ mass fusion splicer, and Sumitomo Fusion Splicer like TYPE-72C High Definition Core Aligning Fusion Splicer, T-57 Automatic Adaptive Core Fusion Splicer and T-400S Active Clad Alignment Fusion Splicer., FITEL Fusion Splicer, INNO Fusion Splicer, ILSINTECH Fusion Splicer, FiberFox Fusion Splicer.

theTCW-605E SeriesAdopt high-speed image processing Technology and special precision- positioning technology, Automatically finish the whole process of fiber fusion in 8Seconds typically, TFT LCD monitor displays all steps of Fiber fusion clear at a glance. Widely used for SM and MM Quartz Fiber with diameter 80 150μm(300μm optional), coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less. Ideal tools for construction and maintenance of fiber and Cable in both field and laboratory applications. Support English, Spanish, Portuguese, French, Italian, German, Arabic, Russian, Korea, Japanese, etc.

the Uses:

   the TCW605E Series Fusion Splicer have been using in  English, Spanish, Portuguese, French, Italian,     German, Arabic, Russian, Korea, Japanese, etc.

     Widely used for SM and MM Quartz Fiber with diameter     80-150μm(300μm  optional),  coating  layer  diameter     0.1-1.0mm and bare fiber length 16mm more or less.

     Ideal tools     for construction and maintenance of fiber and     Cable in both field and laboratory applications.



Detailed Introduction:

     Not only a Fusion Splicer, but also your partner who make your job easy and happy

     5.0 inch TFT color LCD monitor with anti-reflective coating

     the advanced core to core fiber profile alignment system(PAS)

     ARC Calibration FREE system  .  ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary

     X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times

     8 seconds splicing time, 30 seconds Heat-Shrinking

     Battery capacity was display in real time, precisely

     Built-in high capacity battery, support 200 cycles(splicing /tube heating), to meet one days' work

     Long Electrode Lifetime, up to 4000 times

     the new wind-cover design, enhance the ability to prevent the dust & wind, Max. Wind velocity of 15m/s

     Two Splicing modes: auto, manual

Technical Specifications  :

Optical Specifications	TCW-605E
Fiber Types	Single mode (ITU-T G.652), multimode (ITU-T G.651), dispersion shifted (ITU-TG.653), non-zero dispersion shifted (ITU-T G.655) and other SMF including ITU-T G657 fibers
Average Splicing Loss	0.02dB with G.652 and G.657, 0.01dB with G.651 and 0.04dB with G.653 and G.655
Splicing Time	Typical splicing time:8s
Heating Time	Typical heating time:30s
Return Loss	60dB or greater
Fiber Coating	100μm to 1000μm
Fiber Cladding	80μm to 150μm(300μm optional)
Fiber Cleave Length	8    16mm(coating diameter<250m), 16mm  ( Coating diameter 250    1000m  )
