| Use: | instrument |
|---|---|
| Communication: | Wireless |
| Style: | instrument |
| Brand Name: | ACEMIC |
| Material: | plastic and metal |
Quick Details
Specifications
FEATURES
UHF 600-952MHz frequency range( region dependant)
PLL Synthesized, pre-set 100 selectable frequencies
Antenna diveristy guarantee maximum range up to 80 meters
Pre-set 100 (10*10) frequency seletable.
IR synch downloading the frequency from receiver
LCD display shows the RF level, AF level, channel and frequency
Patented design, rubber cover protect the instrument
Reciver powered by 2*1.5AA battery or 9V adaptor

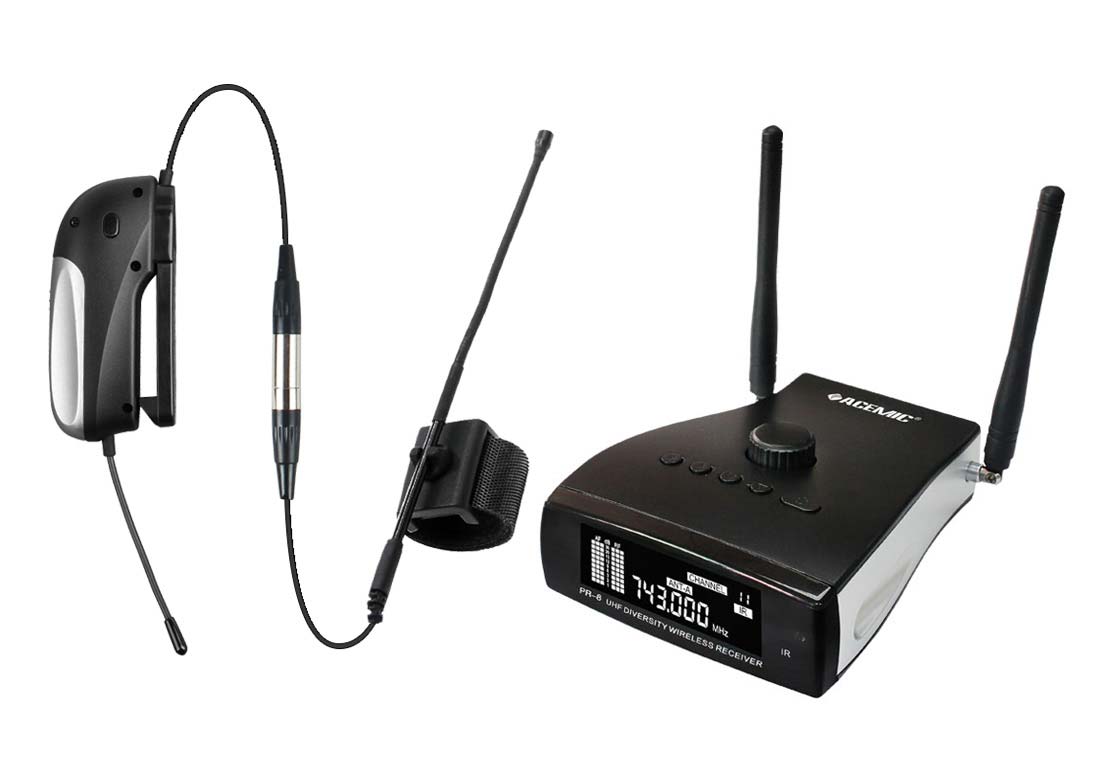

Designed for flute wireless audio transmission
SPECIFICATION
Comprehensive Performance
Frequency Range: 600-952MHz
Modulation Mode: FM
Dynamic Range: >100dB
Frequency Response: 60Hz-17KHz±3dB
Total Harmonic Distortion: <0.5% at 1KHz
Signal/Noise Ratio: ≥108dB
| RECEIVER Frequency Range: 600-952MHz Receive Sensitivity: -110dBm (sinad ≥30dB) Signal/Noise Ratio: >105dB Power Supply: DC9V/ 500mA Audio Output: 1*6.35mm jack socket |
TRANSMITTER Frequency Range: 600-952MHz RF Power: 10mW Microphone Type: Condenser Directivity: Cardioid Deviation: ±48KHz Antenna: 1/4 wave Length wire type Battery Voltage: 1.5V (1x1.5V AA Battery) Power Consumption: 10 hours, battery-dependent |
