| Item Type: | Flood Lights |
|---|---|
| Light Source: | LED |
| Brand Name: | Moonlight LED floodlight housing |
| Certification: | CE,EMC,Energy Star,ETL,FCC,RoHS,UL,VDE |
| Lamp Body Material: | Aluminum Alloy |
| Light Source: | LED |
| Item Type: | SMD LED floodlight housing |

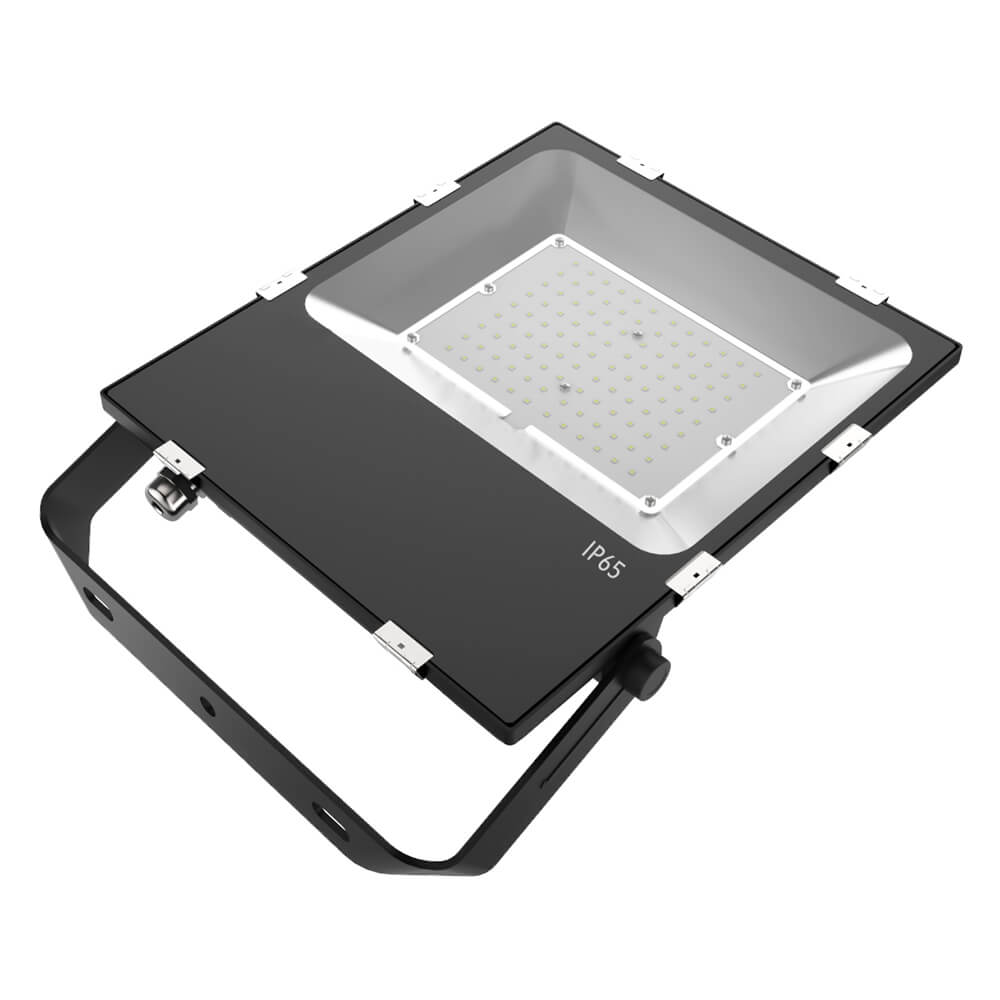

| Model Number: | LED Floodlight Housing MLT-FLH-CL-II |
| Place of Origin: | China (Mainland) |
| IP Rating: | IP65 |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Beam Angle(°): | 120 |
| Color Temperature(CCT): | Pure White |
| CRI (Ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 120 |
| Lamp Luminous Flux(lm): | 12000 |
| Lamp Power(W): | 100 |
| Input Voltage(V): | 90-305 |
| LED Light Source: | LED |
| Model No.: | LED Floodlight Housing MLT-FLH-CL-II |
| Dimension of Housing: | 40.3cm(L)*29.6cm(W)*6cm(H) |
| Fixture Material: | Die-casting Aluminum Alloy |
| Diffuser Material: | High Transmittance Tempered Glass |
| Surface Finish Color: | Black or Customized color |
| Effective MCPCB Mounting Size: | 184mm(L)*155mm(W) |
| Recommended LED Power: | 80W-100W |
| Beam Angle: | 120 |
| Mounting Method: | Ceiling/Wall/Pedastal/ Mounting Options |
Quick Details
Specifications
Feature
2 Durable Aluminum alloy die-casting housing for heavy-duty lighting applications.
2 Casting-integral Heat sink with fins increased air flow velocity providing maximum passive thermal Management.
2 Easy Drainage fins system.
2 Adjustable Mounting bracket for direction changing.
2 LED Driver can be mounted in direct contact with the casting to promote low Operating temperature and long life.
2 Plastic Electrostatic spraying to resist corrosion, chipping and fading.
2 High Light transmittance tempered glass.
2 Silicon Gaskets.
2 Stainless Steel bolts and for fastening
2 IP65 Rated, protect from all dust and harsh weather.
2 Standard Black finish.
2 Multiple Mounting solution for different installation applications.
2 Easy to Assemble, install and linemen friendly maintain.
Parameter
Model No. |
MLT-FLH-CL-II |
Dimension of Housing |
40.3cm(L)*29.6cm(W)*6cm(H) |
Fixture Material |
Die-casting Aluminum Alloy |
Diffuser Material |
High TransmittanceTempered Glass |
Surface Finish Color |
Black or Customized color |
Effective MCPCB Mounting Size |
184mm(L)*155mm(W) |
Recommended LED Power |
80W-100W |
Beam Angle |
120° |
Mounting Method |
Ceiling/Wall/Pedastal/ Mounting Options |
Application
this heavy-duty, Modern design, energy-efficient and cost-effective LED floodlight housing Fixture is typically used as 80W-100W LED floodlight. LED floodlights are Specifically designed for various kinds of places, including office Buildings, monuments, facades, columns, flag poles, bridges, commercial, mixed Retail, apartments, schools, campuses, stadiums, squares, billboards, parking Lots, building exterior wall, etc. They focus light more directly to create Powerful illumination at a long range. this makes them perfect for outdoor Lighting applications such as LED landscape lighting, statue lighting, Architectural lighting, LED sign lighting, building facade lighting, tree Uplighting, wall wash lighting, outdoor accent lighting, and garden lighting.
