The following example is for you reference.


1.Brief Introduction:





2.Techincal parameters:





3.Performance features:

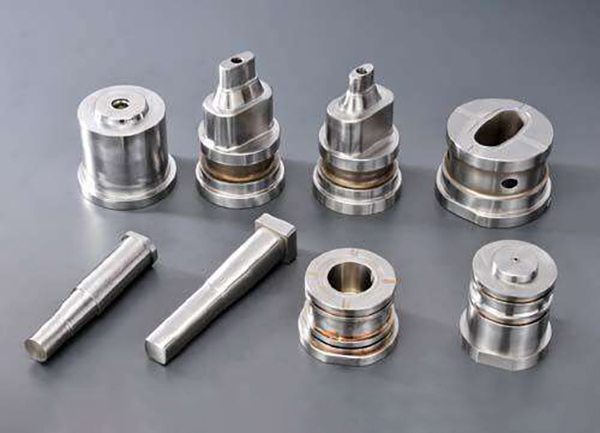

 Materials for CNC Precision machining parts

We can process product materials are:

An aluminum alloy series: all aluminum and aluminum alloy (ASTM Grade from 1050-7475), commonly used are: 2011,5052,6061,7075, etc.

(2) Copper Alloy Series: all copper and copper alloy, copper, copper, brass, bronze, phosphor (the ASTM grades from C11000 to C38000), commonly used: C11000, C22000, C26000

(3) Stainless Steel Series: all the basic machining stainless steel, the ASTM grades (JIS grade corresponds to the basic, together with the SUS can): 201,301,303,304,314,316,420,430,630

Steel series: all the basic machining steel can be processed, for example: 20 # steel, 45 steel, easy to cut iron (common SUM24L, SUM22, Y12, Y15)

CNC Precision machining parts accuracy

Machining accuracy: IT6 level, such as the 10mm dimensions, tolerances can be done 0.009mm, 20mm size tolerances can be 0.013mm

 Maximum size of Precision parts suit to CNC machining

Lathe parts (turning parts , such as axes, coupling,bushing, thread rod , etc.) following the outer diameter of 300mm, length less than 150mm

Milling parts (box, cylinder, etc.) 800mm long, 330mm wide, 120mm high
