Tube Plate Integrated Optical Fiber Laser Cutting Machine

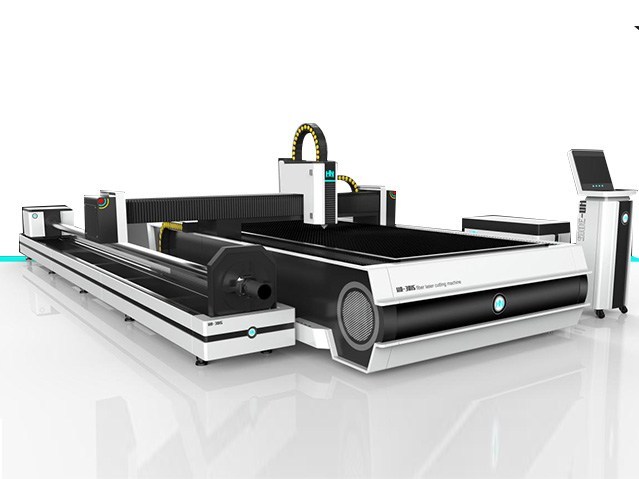

Tube plate integrated optical fiber laser cutting machine

this model integrates square tube,circular tube,oblate tube and plate cutting in one,with multifunction and high practicality.
Gantry structure and dual drive,Germany imported rack & pinion drive system.Excellent cutting performance and stability.
Self-centering jig system ensure stable process of conveying pipes,so that it can ensure high accuracy and high quality of products.
Fiber laser tube cutting machine with high accuracy of machining dimension,can take the place of traditional processing equipment,such as sawing and punching.
Saddle-shaped pipe type support beam is with high precision calibration,no deformation during 6mm pipe cutting.

Technical Parameters:

NO.	Model	Name	Quantity	Remarks
1	HN-3015C	Medium tube plate integrated fiber power laser cutting machine	1 set
2	3000W	Laser generator	1 set	Max
3	Water chiller	Special water chiller for fiber laser generator	1 set	Hanli
4	Laser head	High accuracy professional fiber laser head	1 set	ItalyTAG (Acemit)
5	Control system	Cypcut	1 set	Cypcut
6	Z axis	Japan High speed Yaskawa servo motor	1 set	750W Yaskawa servo motor
	Y axis	Japan High speed Yaskawa  servo motor	2sets	1800W Yaskawa servo motor
	X axis	Japan High speed Yaskawa  servo motor	1 sets	1000W Yaskawa servo motor
	W axis	Japan High speed Yaskawa servo motor	2 sets	1000W Yaskawa  servo motor
	L axis	Japan High speed Yaskawa  servo motor	1 sets	1000W Yaskawa  servo motor
7	MVB-090-007-P1	French Motovario	6 set	French Motovario
8	Electric components	Imported	1 set	Omron, Schneider
9	HGH30	Imported	1 set	TaiwanABBA
10	CHTGH-020-10	Imported	1 set	TaiwanAPEX
11	Proportional valve	Imported	1 set	Japanese SMC
12	HN-3M-160mm	the length  of rotary:3000mm the max diameter of rotary:160mm	1 sets
13	Spare parts	Lens Cutting nozzle	5 pieces



Application:

Fiber laser tube cutting machine meets the parts processing requirements of most industries, working accuracy is stable. at present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
