Quick Details
Specifications

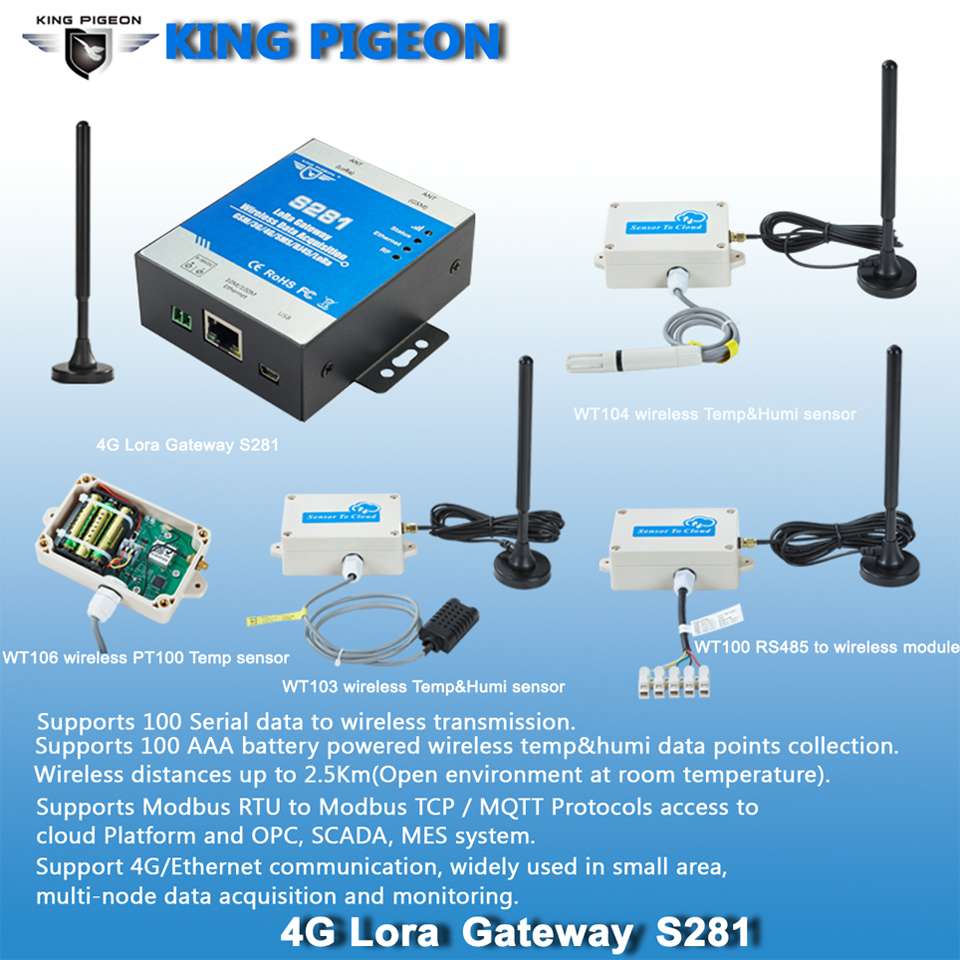

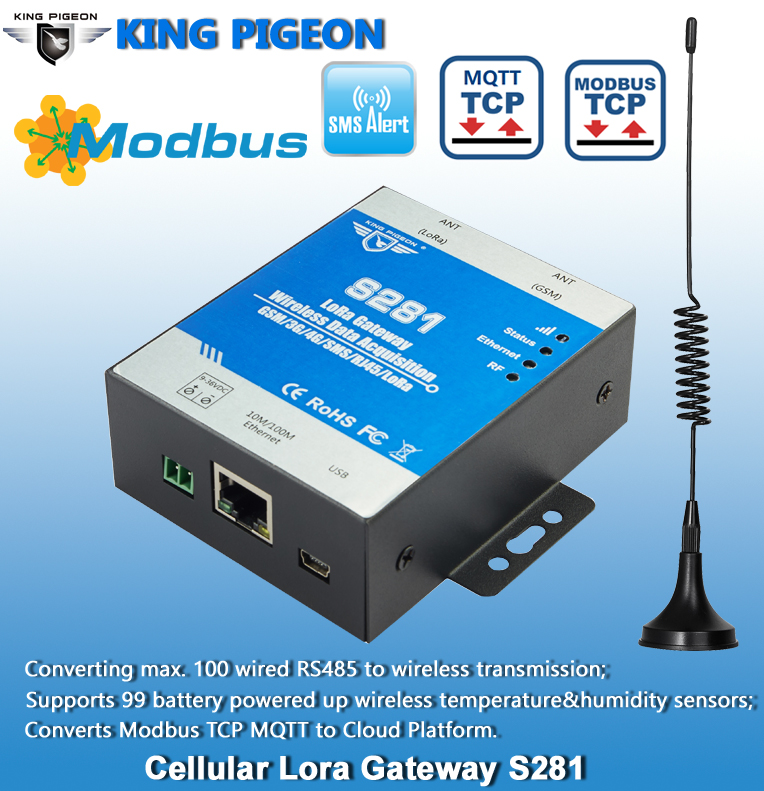

the Lora Gateway S281 is the latest Lora technology for industrial internet of things solutions. It supports upto 99 wireless temperature humidity modules, the wireless temperature humidity sensor powered up by normal AAA battery, and 99 wireless serial port modules with a monitoring radius of upto 2500m. It is widely used in agricultural greenhouse temperature and humidity collection and monitoring, chemical plant temperature and humidity collection and monitoring, electroplating plant temperature and humidity collection and monitoring, hospital sites and fruit and vegetable storage warehouses and other places temperature and humidity collection and monitoring. Supports SMS,GPRS,3G, 4G Lte Cellular Networks. Compatible Modbus TCP and MQTT IoT Protocols and can intergrate to the KPIIOT IoT Cloud Platform and OPC, SCADA and MES systems to build an industiral IoT Solution.
Features:
Embedded ARM CortexTM-M4 32-bit RISC core real-time operating system, software watchdog and hardware watchdog to
Prevent false downtime.
Wide working voltage design, support 9~36VDC power supply, and with wrong wiring protection design.
Modular structure design, GSM/3G/4G network upgrade can be upgraded by simply replacing the module.
Support remote SMS restart device and configure device parameter.
through local configuration software, remote SMS, APP to set parameters, easy to operate, easy to use.
Support 10 user numbers for receiving specific SMS alarm information of device daily report, drop line, serial port data
Overrun, and abnormal trigger.
Built-in powerful timer function, support timely automatic report, timely SMS daily report, timely online, timely restart and Other functions.
Modbus TCP protocol and Modbus RTU protocol are compatible with transparent transmission.
Ethernet transformer isolator, 2KV electromagnetic isolation, housing isolation protection.
Time-division multiplexing, multichannel mounting, less interference, more mounting nodes, and up to 100 temperature and
Humidity collection points.
Real-time monitoring of slave device battery power to ensure that device data is not dropped.
Technical Parameter:
Power:Working Voltage 936V DC
Power Consumption: Normal:130mA@12V,Max:150mA@12V
Power Protection Anti wrong wiring,Air ESD:15KV,surge:4KV
ESD:8KV,surge:4KV(10/1000us)
LoRa Parameter Communication Frequency:420HMz-450MHz(Can customize 868MHz and 915MHz)
Indoor Communication Distance: 1km
No Obstacle Communication Distance: 2km
Transmit Power <24dBm
Receiving Sensitivity<-120dBm
Communication Speed:1.0Kbps
Cellular Network:2G GSM/EDGE:850,900,1800,1900MHz
3G GSM/EDGE:850,900,1800,1900MHz UMTS:850,900,2100MHz
4G(E)GSM/EDGE:900,1800MHz WCDMA:B1,B5,B8 FDD:B1,B3,B5,B7,B8,B20 TDD:B38,B40,B41
4G(AU)GSM/EDGE:850,900,1800MHz WCDMA:B1,B2,B5,B8 FDD:B1,B2,B3,B4,B5,B7,B8,B28 TDD:B40
4G(A)WCDMA:B2,B4,B5 FDD:B2,B4,B128
4G(V)FDD:B4,B13
4G(J)WCDMA:B1,B3,B8,B18,B19,B26 FDD:B2,B4,B12 TDD: B41
4G(CE)GSM/EDGE:900,1800MHz WCDMA:B1,B8 TD-SCDMA:B34,B39 FDD:B1,B3,B8 TDD:B38,B39,B40,B41
SIM/UIM Card:Support 1.8V/3V SIM/UIM,Inbuilt 15KV ESD protection
Software Parameter Protocol:IPV4,TCP/UDP,DHCP,DNS,Modbus RTU,Modbus TCP
User Configuration:PC software configuration,support WIN XP,WIN 7,WIN8,WIN 10
Number of Supported nodes: Max 200
Transparent Transmission:Support
Modbus Protocol: Support Modbus RTU,Modbus TCP
Log in message:Support customized log in message
Heartbeat Message: Support customized Heartbeat message
Memory:Max can save 2000 history records and 500 alarms
Certificates:MTBF:≥100,000hrs
EMC:
EN 55022: 2006/A1: 2007 (CE &RE) Class B
IEC 61000-4-2 (ESD) Level 4
IEC 61000-4-3 (RS) Level 4
IEC 61000-4-4 (EFT) Level 4
IEC 61000-4-5 (Surge)Level 3
IEC 61000-4-6 (CS)Level 4
IEC 61000-4-8 (M/S) Level 4
Others: CE,FCC,ROHS,3C
Environment Working Temperature&Humidity:-4585℃,595% RH
Store Temperature&Humidity:-45105℃,595% RH
Others:Enclosure
Metal:Size
8.8cm7.5cm3.0cm(L*W*H)
IP Level: IP30
NW: 235g
Installation: Wall-mounted, rail-mounted
Applications:
Smart agricultural temperature and humidity data acquisition and monitoring.
Smart breeding temperature and humidity data acquisition and monitoring.
Smart factory temperature and humidity acquisition and monitoring.
Other distributed monitoring points.
ATM,POS,PLC,DAQ and other devices' data transmission.
Smart grid data transmission.
Smart traffic data transmission.
Industrial automation data transmission.
Environmental protection data transmission.
Meteorological station Data acquisition and monitoring.
Data transfer of agriculture, water, coal mines, etc.
Smart agriculture, smart fire protection, smart city, intelligent building control and other places.
Other situations where temperature, humidity, and data interaction need to be monitored.
Packing List:
S281 gateway
Packing List:
S281 gateway
3.5mm female jack
Adaptor(12VDC-2A,EU/US/UK/AU Plug optional)
Adaptor(12VDC-2A,EU/US/UK/AU Plug optional)
MINI USB cable
LoRa Antenna(433MHz)
2G/3G/4G SMA Cellular Antenna
