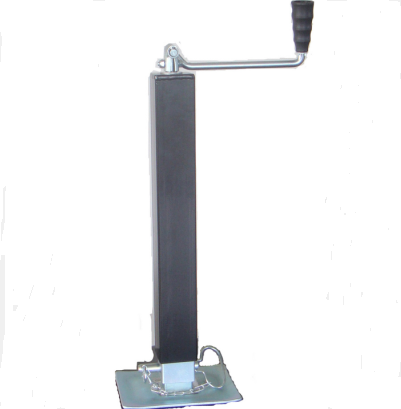

We are producing the Top wind Square Tube Jack, rated 7,000 lbs lift capacity and 8,000 lbs static capacity. the travel is 15".  the Jack features a 2.5 inch outer tube and 2" inner tube. 6" x 8" large foot pad and solid-bar crank handle with red or black claw knob. Finish: black/gray powder-coating.

Specs:

Overall body height:

     o24.50" Closed

     o39.50" Extended

Travel: 15"

Outer tube width: 2.5" Sq.

Inner tube width: 2" Sq.

Footplate dimensions: 6.00" long x 7.90" wide

Handle radius: 7.50"

     Total lift: 28.50"

Screw travel: 15"

Drop leg travel: 13.50"

Lift capacity: 7,000 lbs.

Support capacity: 8,000 lbs.

1-Year warranty
