| Use: | Trailer Parts |
|---|---|
| Brand Name: | NCM |
| Max Payload: | 10K |
| Parts: | Trailer Suspension |
| Use: | use |
| Color: | Black |
| Model Number: | 10K JACK |
| Place of Origin: | China (Mainland) |
| finish: | Black Powder Coating |
Quick Details
Specifications

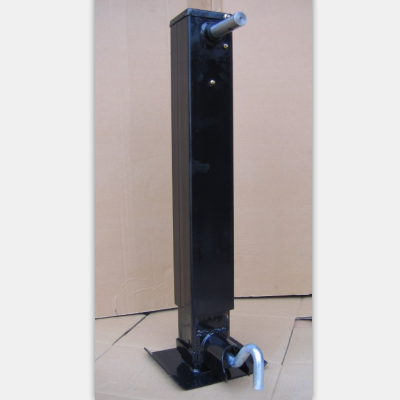

12000lbs Square Sidewind 12.5" Travel Drop Leg Jack W/ Spring Return
We have been supplying the Heavy duty square Jack, 12000lb support capacity, 10,000lb lift capacity,with spring return, front pin or side pin, with/without handle, Finish: black powder-coating.
We have been supplying the Heavy duty square Jack, 12000lb support capacity, 10,000lb lift capacity,with spring return, front pin or side pin, with/without handle, Finish: black powder-coating.
Specs:
Mounting Height:
28" Retracted
53.25" Extended
Total Travel: 25.50"
Screw travel: 12.50"
Drop leg travel: 13"
Lift capacity: 10,000 lbs
Static capacity: 12,000 lbs
Outer tube width: 4"
Inner tube width: 3-1/2"
If you require these kinds of heavy-duty Square Jack -12K lb, Please contact us with us at any time.
