BMS110 cellular solar battery monitoring IoT solution with current voltage monitoring and inverter control via GPRS 3G 4G network
BMS battery monitoring management  IoT solution solar battery monitoring  GPRS 3G 4G

BMS110 cellular solar battery monitoring IoT solution with current voltage monitoring and inverter control via GPRS 3G 4G network

BMS battery monitoring management  IoT solution solar battery monitoring  GPRS 3G 4G

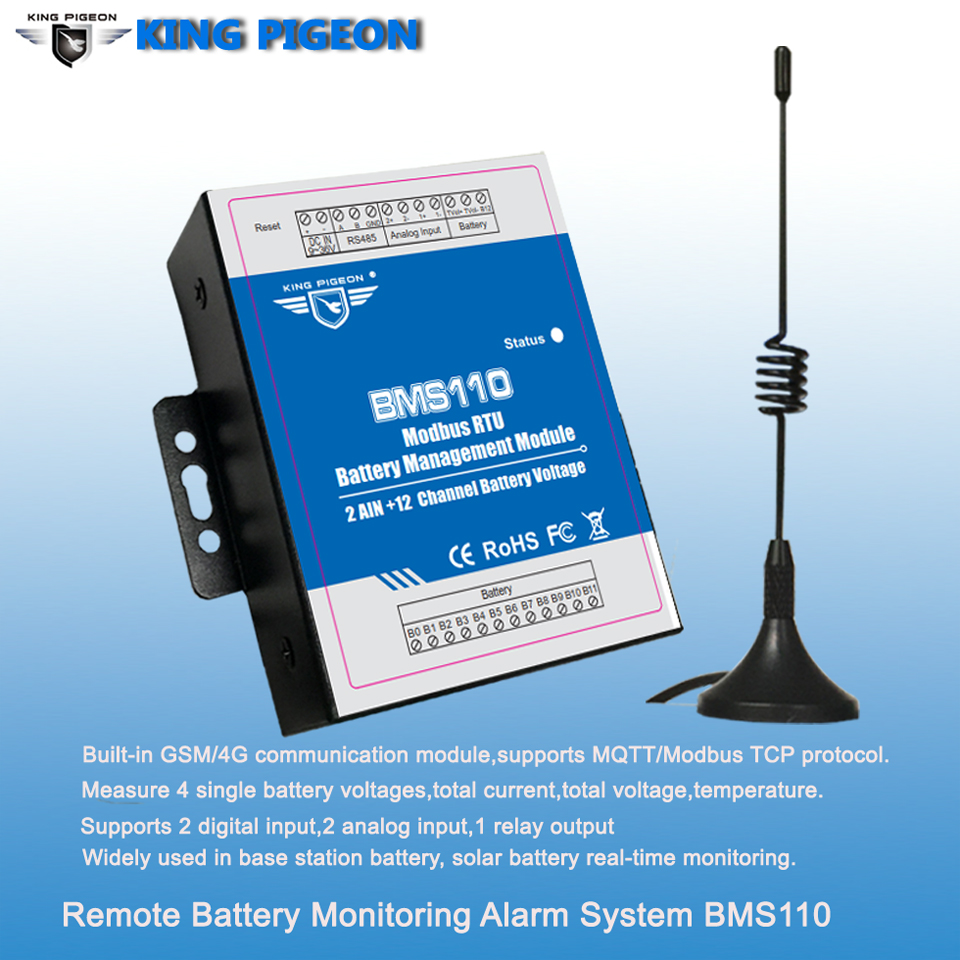

King Pigeon Battery Management System BMS110(2AI+12battery channel+2DI+1Relay) introduction:



BMS110 can be used in various industrial automation measurement and control systems. It can measure 4-20mA and 0-5V transducer signal of pressure, temperature,current,etc.It can measure server room battery management and voltage of each battery in each group.it is with DI Do relay can control inverter .And via GPRS 3G 4G network, can connect to cloud platform and app.



BMS110 model can realize 2 analog input and 13 battery voltage measurement. It is with RS485 serial port, MODBUS-RTU  MQTTcommunication protocol. Power supply is 9-60V DC.BMS100 can be used in various industrial automation measurement and control systems. It can measure 4-20mA and 0-5V transducer signal of pressure, temperature,current,etc.It can measure server room battery management and voltage of each battery in each group. BMS100 use 16-bit high-precision AD acquisition and data processing technology, professional MCU Controller, non-linear processing algorithm.It has high accuracy, stable performance, strong anti-interference ability, etc.
