| Type: | Filling Machine |
|---|---|
| Brand Name: | Shifeng |
| Packaging Material: | Plastic,Wood |
| Packaging Type: | Cartons |
| Application: | Beverage,Food,Medical |
| Condition: | New |
| After-sales Service Provided: | No overseas service provided |
| Place of Origin: | China (Mainland) |
| Voltage: | AC220V 50/60Hz |
| Driven Type: | Electric |
| Automatic Grade: | Semi-Automatic |
| Fillable speed: | 0-50bottles/min |
| Fillable precision: | 1%-2% |
Quick Details
Specifications
the type of Full Pneumatic Semi-automatic Liquid Filling Machine Series are as follow,
You can pick the most suitable machine according to the technical data, and inform me.
Technical Data:
| Items | SFGY-60K | SFGY-120K | SFGY-250K | SFGY-500K | SFGY-1000K | SFGY-2500K | SFGY-5000K |
Fillable range |
5-60ml | 10-120ml | 25-250ml | 50-500ml | 100-1000ml | 250-2500ml | 500-5000ml |
Ideal Fillable range |
25-60ml | 50-120ml | 100-250ml | 200-500ml | 400-1000ml | 800-2500ml | 2000-5000ml |
Air pressure range |
4-6kg/cm3 |
4-6kg/cm3 |
4-6kg/cm3 |
5-8Kg/cm3 |
5-8Kg/cm3 | 5-8Kg/cm3 | 5-8Kg/cm3 |
Fillable speed |
0-50 Bottles/min |
0-50 Bottles/min |
0-50 Bottles/min |
0-50 Bottles/min |
0-50 Bottles/min |
0-35 Bottles/min |
0-15 Bottles/min |
Fillable precision |
1% | 1% | 1% | 1% | 1% | 1% | 1% |
| Net weight | 14kg | 15kg | 20kg | 20.5kg | 26kg | 35kg | 53kg |
| Gross weight | 15.5kg | 16.5kg | 22kg | 26kg | |||
| Host size | 775*235*480 mm |
852*335*480 mm |
890*365*480 mm |
1100*380*480 mm |
1190*420*480 mm |
1315*305*480 mm |
1289*373*480 mm |
| Package size | 1035*290*270 mm |
1035*290*270 mm |
1085*320*280 Mm |
1855*335*280 mm |
1335*290*280 mm |
1585*435*305 mm |
1450*660*420 mm |

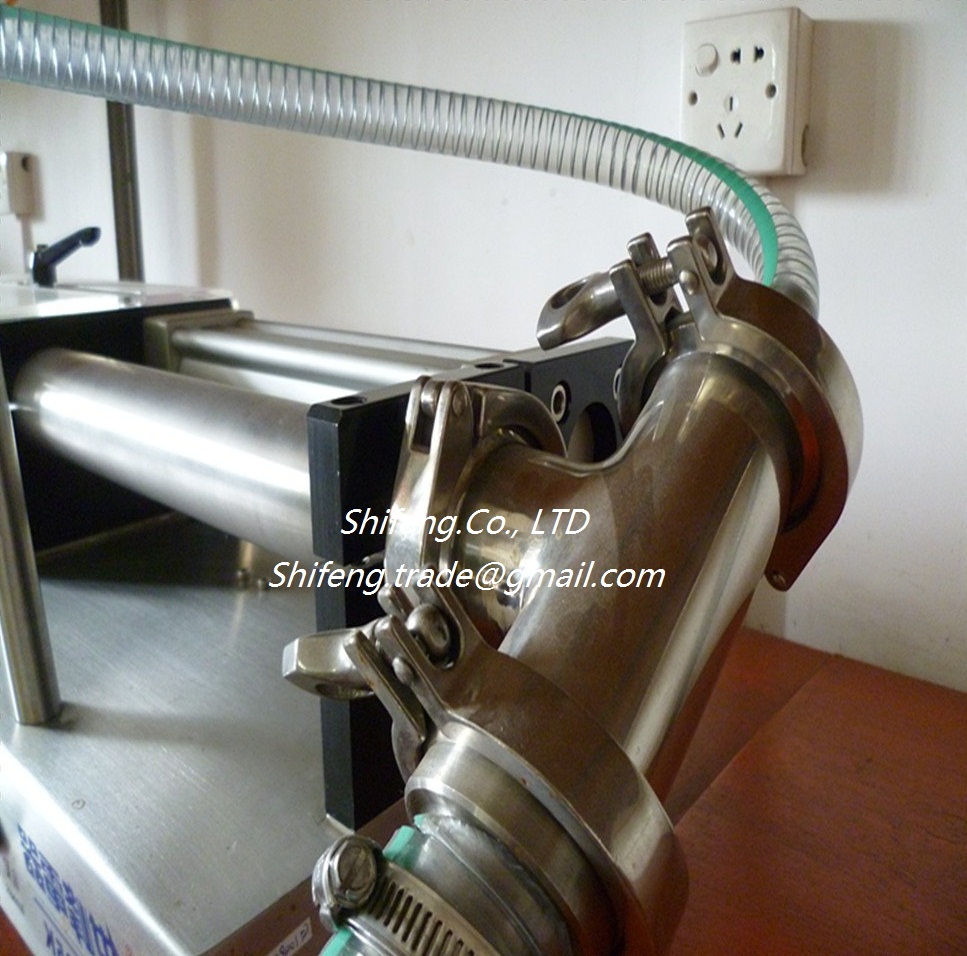

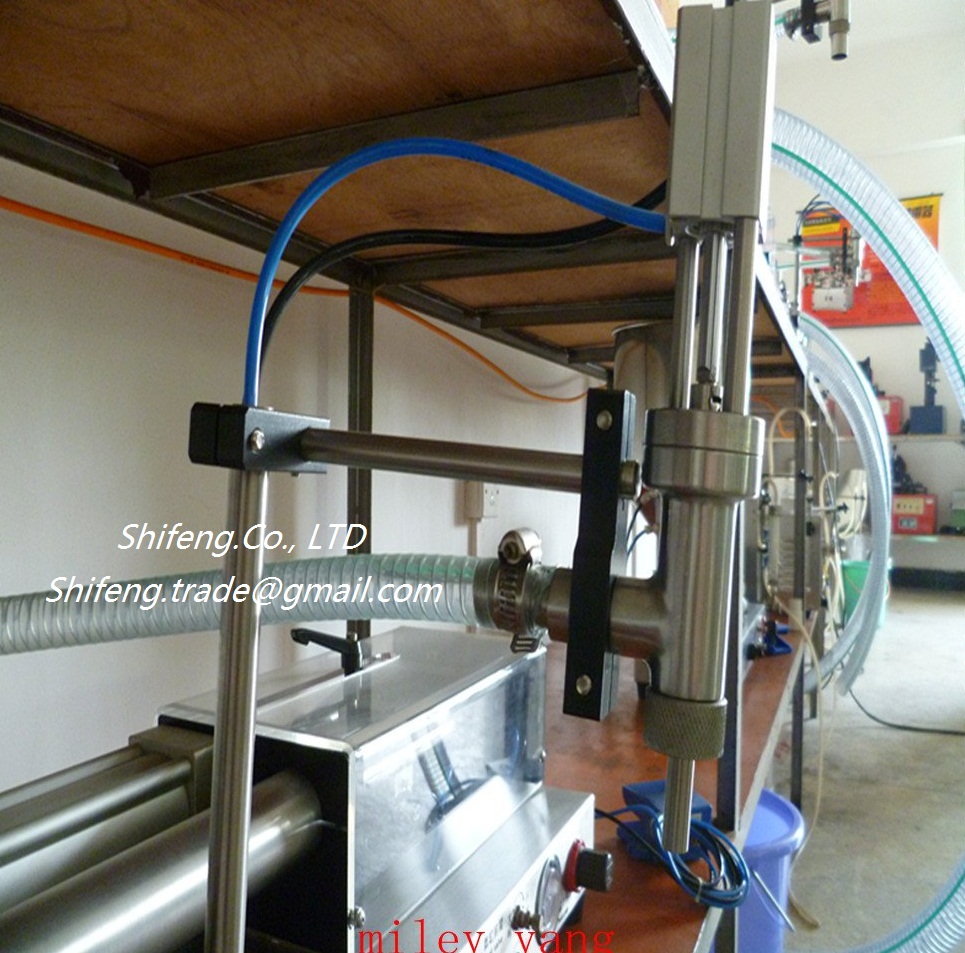

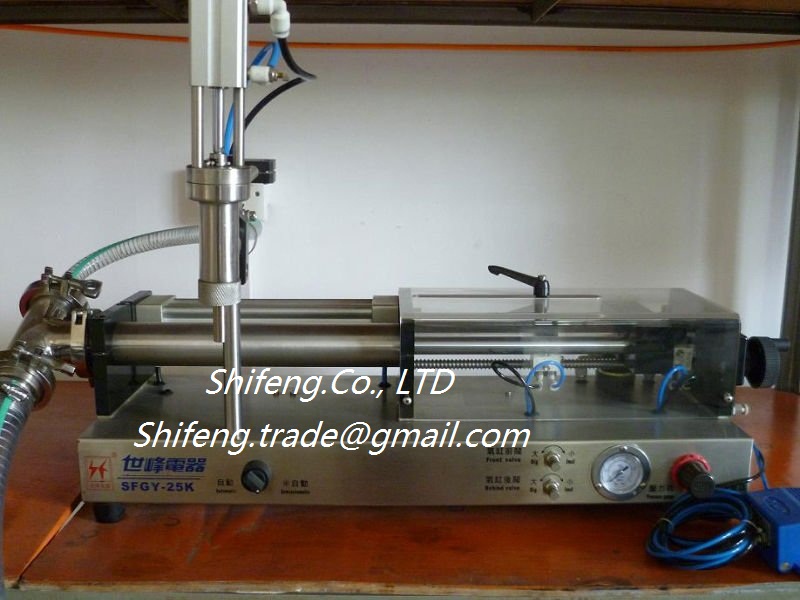

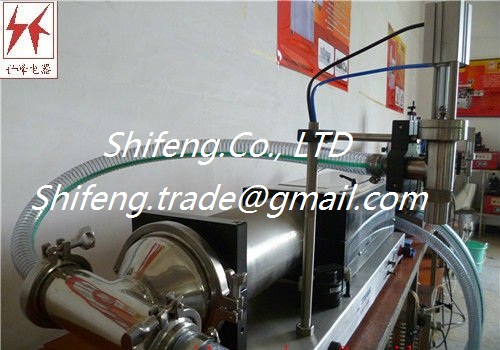

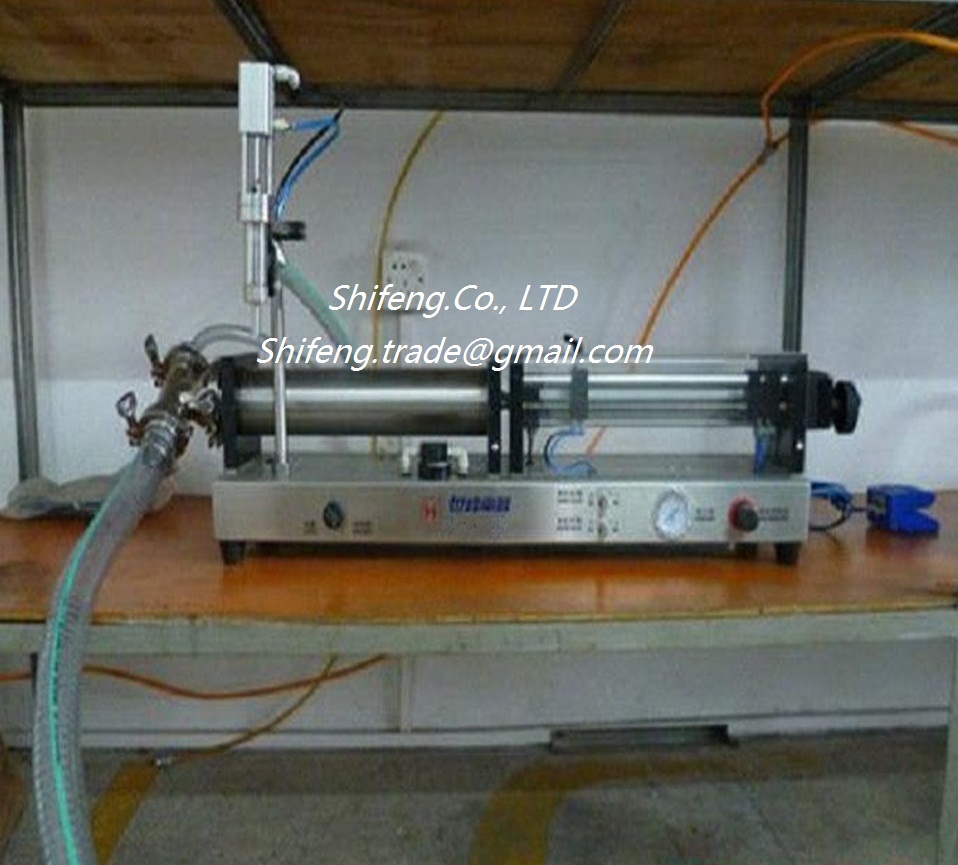

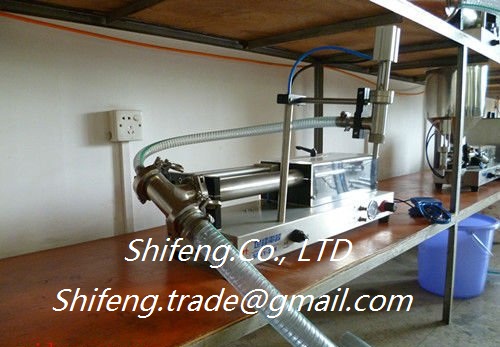

Machine photo:
