| Brand Name: | LANCABLE |
|---|---|
| Interface Type: | RJ-45 |
| Type: | Wired |
| Style: | External |
| Products Status: | Stock |
| Place of Origin: | China (Mainland) |
| Model Number: | BL-E8Kc |
Quick Details
Specifications

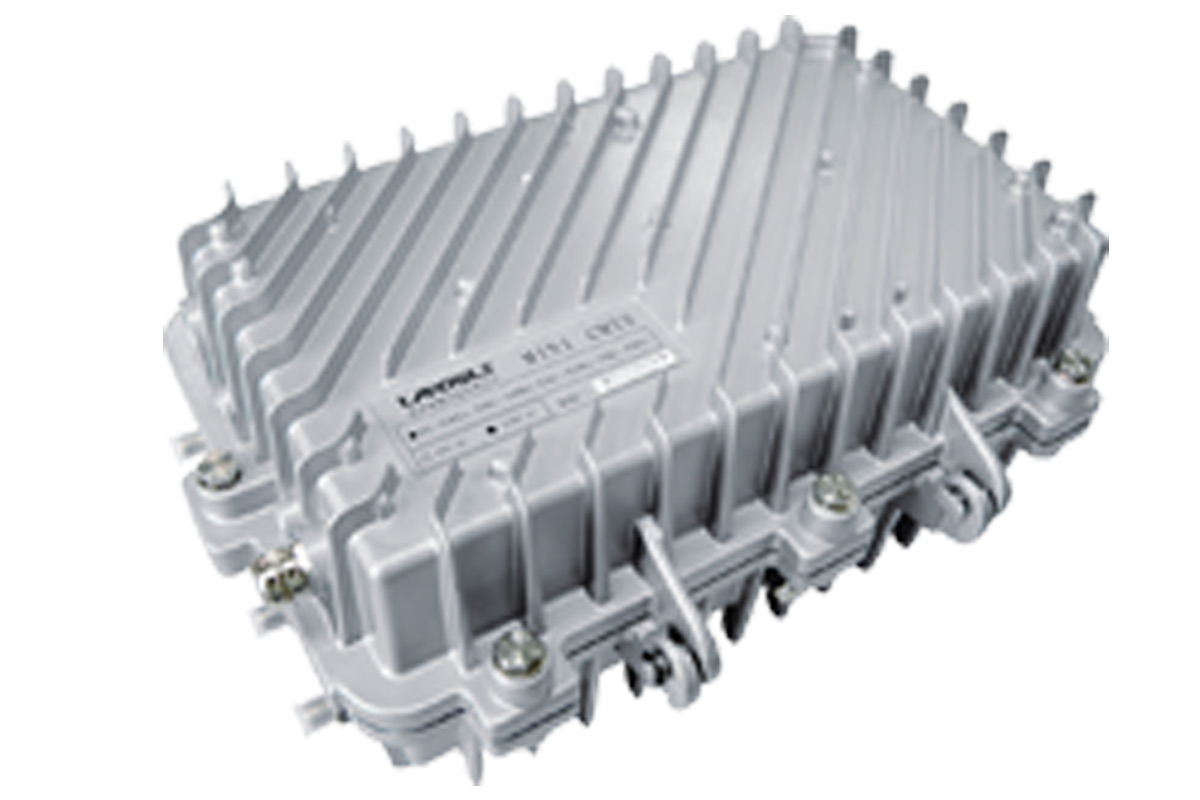

BL-E8Ka/b/c (Outdoor type)
Offers Downstream with 16 channels, up to 800Mbps while upstream with 4channels, up to 160Mbps, so that 960Mbps broadband access can be achieved. Support 511pcs Cable Modem on linesimultaneously,fully compatible with DOCSIS2.0 and DOCSIS3.0.
Features:
- Outdoor IP6 waterproof design, working temperature is -25~75℃;
- CATV Signal is mixed inside miniCMTS. Choose 1RF input & 1RF output or 2RF input & 2RFoutput or 4RF input & 4RF output according to the output of Optical receiver.
- Power Supply: 220V/60V;
- Support 60V over electric, over current is 10A;
- up-link Network interface can be optical or electrical
- ONU as option can be inside
- Support to extend IPQAM inside
|
Items |
BL-E8Ka |
BL-E8Kb |
BL-E8Kc | |
Downstream |
QAM modulation mode |
Annex A,B,C | |||
QAM modulation |
64QAM,256QAM | ||||
Downstream channel |
16 | ||||
Max.Speed |
800Mbps | ||||
Frequency range |
87Mhz-1000Mhz | ||||
Channel bandwidth |
8Mhz/6Mhz | ||||
Balanced MER |
42db | ||||
Noise |
<-20dbmv | ||||
Upstream |
Modulation mode |
QPSK,16QAM,64QAM | |||
Upstream channel |
4 | ||||
Max.Speed |
160Mbps | ||||
Frequency range |
5Mhz-65Mhz | ||||
Output level range |
-13dbmv - 23dbmv | ||||
RF |
Mixing module |
√ |
√ |
√ | |
RF connector |
1RFin+ 1RFout |
2RFin+ 2RFout |
4RFin+ 4RFout | ||
NMS |
Speed |
100/1000Mbps | |||
Interface |
1xRJ45 or1xSFP | ||||
Command Interface(CLI) |
RS232,Telnet,SSH,WEB,SNMP | ||||
Service |
Max. CM amount |
511 | |||
Dynamic load balanced |
Support | ||||
DHCP Relay |
Option 60,Option 82 | ||||
Qos |
Support | ||||
VLAN |
Support | ||||
Power supply |
220V/60V,power35W | ||||
Working condition |
Working temperature:-25℃-75℃, Relative humidity:10%-90% | ||||
Dimension |
384x271x162mm | ||||
