| Type: | COG |
|---|---|
| Brand Name: | DETONE |
| Interface Type: | Parallel or Serial |
| Resolution: | LCM |
| application: | Industrial machine, medical instrument, apparatus and meters |
| Model Number: | LCMD12864G-7 |
Quick Details
Specifications
| Item | Description |

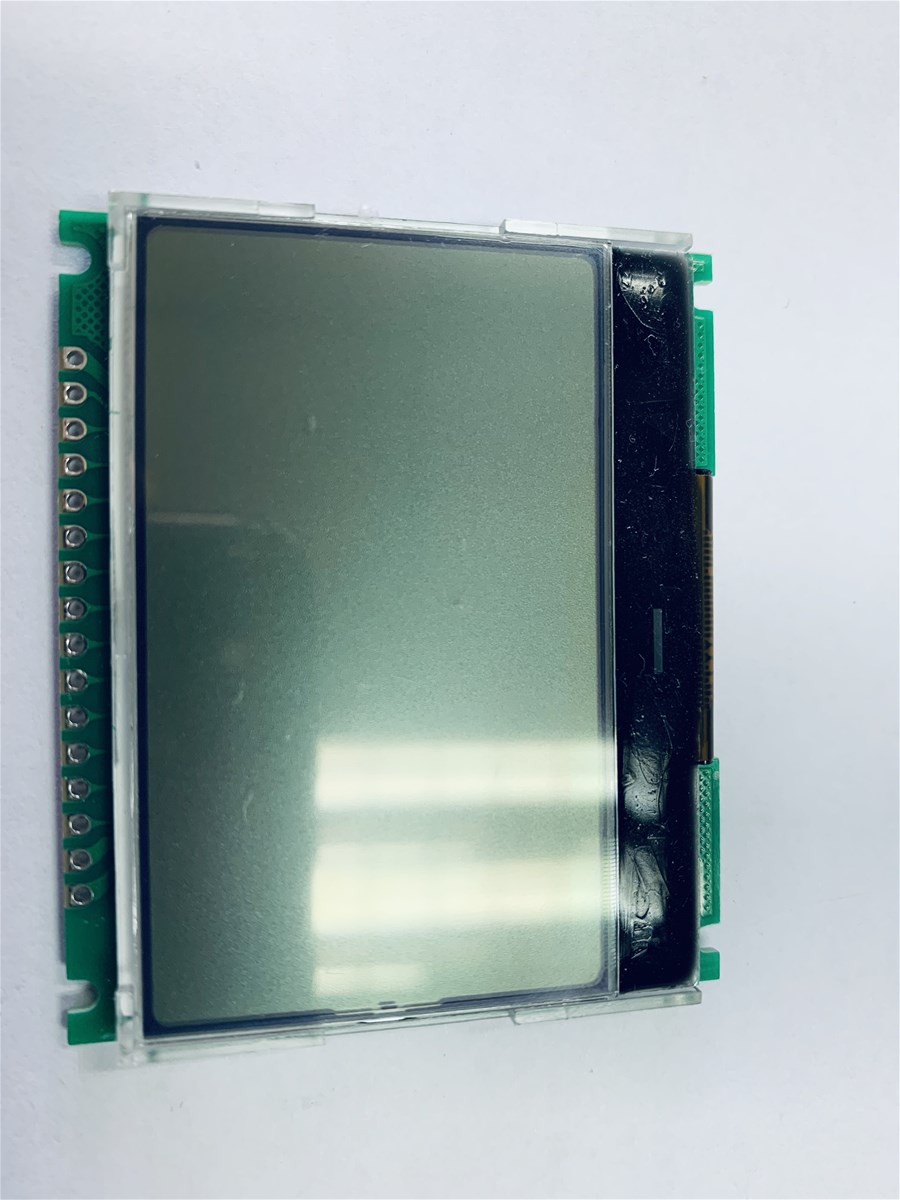

| Product Name | Graphics LCD Module 128x64 dots |
| Model No. | LCMD12864G-7 |
| DotFormat | 128 x 64 |

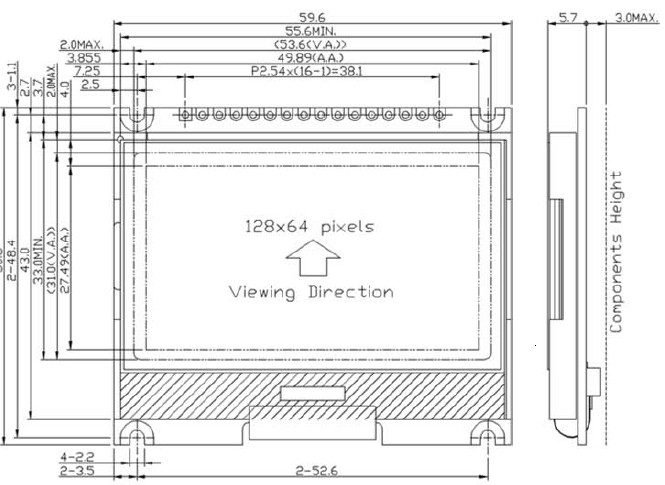

| Outline Dimension(mm) | 59.6X48.4 |
| Assem. Size(mm) | |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Pos |
| Backlight | White LED backlight |
| Driver IC | ST7567 or ST7565 |
| Power supply | 3.3V |

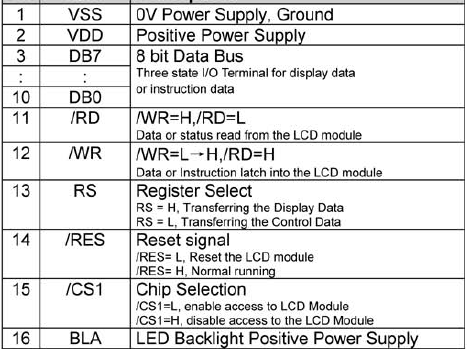

| Interface | Parallel |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
