Sector/cycle scan detection according to control area
Detect the target's range, bearing, altitude, speed, and flight direction
Acquire the target signal effectively, filter interference target
Real-time display of working status and scanning area
the electronic map shows the target's flight track and position in real time
Multiple target detection, single target lock tracking
Filter area whitelist

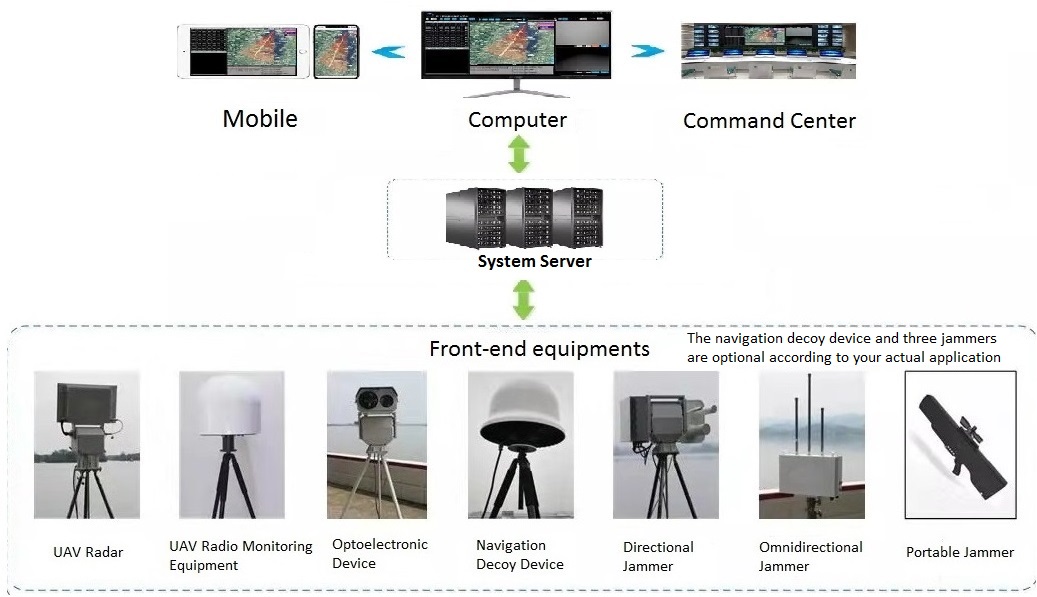

Fast switching scanning task, accurate guidance of photoelectric, interference and other equipment
Radar photoelectric data fusion, high precision positioning
Playback of radar detection history information
Equipment self-check, abnormal report
Standard interfaces and protocols for secondary development components

Product Description

ZY-JKFZ-TDS004 UAV Radar is a low-power detection Radar developed for "low, slow and small" targets. It is used for remote detection and detection of sensitive airspace, providing accurate three-dimensional position information of the target, and achieving full coverage of the surveillance area of 360°.

the UAV detection radar is a special coded continuous wave system, mechanical scanning three-coordinate radar, with low transmission power, high detection resolution, long operating distance, strong anti-interference ability, good portability and other characteristics, suitable for all-weather, all-day, complex electromagnetic environment and geographical conditions, can work continuously and steadily 7*24 hours.



Product Parameters

L Effective Detection Altitude: More than 700m

1. Detection Distance..... 4km(RCS:0.01 ); 7km(RCS:0.01 ); 10km(RCS:0.01 )

2. Working frequency bandKu

3. Azimuth coverage (horizontal)....0~360°

4. Pitching cover (vertical)..-30~70°

5. Detection target velocity.0.2~90m/s

6. Detection range accuracy3m

7. Detection speed accuracy...0.1m/s

8. Azimuth accuracy..1°

9. Pitch Angle accuracy.....2°

10. Power consumption..150W

11. Power supply.AC220V/50Hz

12. Peak power≤8w

L Effective Detection Altitude: More than 2km

1. Detection Distance..... 4km(RCS:0.01 ); 7km(RCS:0.01 ); 10km(RCS:0.01 )

2. System.. 3D

3. Target Identify..  Light/ultralight aircraft, helicopter, uav, glider, paraglider, rotorcraft, hot air balloon, airship, birds,etc.

4. Working frequency band..Ku

5. Min Detecting Speed.. 1m/s

6. Pitching cover (vertical).-30~70°

7. Finding Rate...80%

8. Detecting Target Qty.. 100

9. Protection Grade. IP65

10. Data Rate Detecting.≤6s

11. Detection range accuracy.≤1m

12. Pitch Angle accuracy....≤0.5°

13. Working Ability.. ≥24Hs

14. Tracking Target Qty.. 50

15. Peak transmitted power≤80W

16. Average transmitted power..≤30W

17. MTBF...≥800hs

18. MTTR...≤0.5hs

19. Min. Detecting Distance200m

20.System Power...≤110W/250W

Working Environment

Working Temperature.-30℃65℃

General Specification

Dimensions(LWH)640mm230mm740mm

Installation..Fixed/portable/vehicle-mounted
