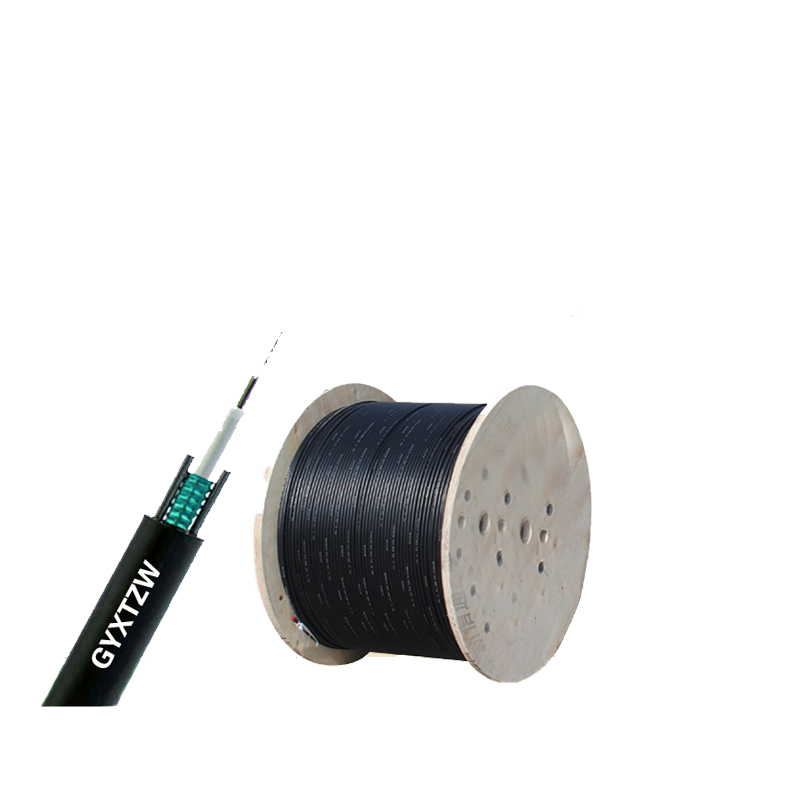

GYXTW cable
Factory direct sale, save the cost of the intermediary link, manufacturers directly to the customer, can generation processing (OEM), the products are suitable for cold construction using the low temperature region, with A grade fiber, GB products, 9/125 mu mu m m single mode fiber or 50/125, 62.5/125, mu m multimode fiber (silica) fast single-mode optical fiber cable transmission distance, the secrecy good, the electromagnetic interference resistance, good insulation, good chemical stability, long service life, low dissipation with good properties and economic benefits.Logistics distribution throughout the country, to ensure timely delivery of goods to customers designated location.the product is guaranteed for 20 years.Can be customized according to customer requirements of various specifications of other cables.
the GYXTW cable is constructed with 250 microns of optical fiber packed into a loose casing made of high-modulus material and filled with a waterproof compound.A layer of double-sided coated plastic steel belt (PSP) is used to cover the casing externally. Water blocking materials are added between the steel belt and the casing to ensure the compact and longitudinal water blocking of optical cable. Two parallel steel wires are placed on both sides to extrude polyethylene sheeting to form the cable.
Model analysis
Cable X -- cable center tube (covered) structure T -- filled structure W -- steel polyethylene bond sheath with steel wire (W sheath for short) [1]
2 product description
Center loose casing protects primary coated fiber
the optical fiber is concentrated in the center of the cable, and the reinforcing parts are distributed on both sides of the cable sheath
3 product features
Small outside diameter, light weight, convenient construction
Optical fiber residual length control stability
after the cable is formed, the additional attenuation of the fiber is close to zero, and the dispersion value does not change
Excellent environmental performance
4. Applicable mode of laying
Low overhead
Low wear tube
Low buried
5 structural features
Center loose casing protects primary coated fiber

There is a water barrier between the steel belt and the cable core
Double surface plastic wrinkle steel tape - polyethylene bonded outer sheath
Double wire parallel reinforcement
6 performance features
Excellent water resistance layer, with good impermeability
Steel belt bonding outer sheath and metal strengthening, excellent tensile performance
Beam tube center design, the fiber optic cable in the resistance to lateral force to minimize the impact
Long-distance communication, inter-office communication, more suitable for the southern region
8 technical parameters
Fiber optic cable core number of fiber optic cable outside diameter
(MM) fiber optic cable weight
Minimum bending radius allowable tension (N) allowable lateral pressure (N/100MM)
Short term long term short term long term
the static and dynamic
10 times the fiber optic cable outer diameter 20 times the fiber optic cable outer diameter 1500 600 1000 300
14-24 10.2 110 1500 600 1000 300
