Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Brand Name: CE ISO
Motor Type: AC Motor
Condition: New
Certification: CE ISO
Weight: 50-650t
Dimension(L*W*H): 2500*1900*2900mm
Model Number: XHP
Place of Origin: China (Mainland)
Capacity(t/h): 60-1200tph
Power(W): 75-630kw
Application: minig
Type: Cone Crusher
color: customized
After sale Service: Technology Support
Quality: International Standard
Test&Installation: Senior Professional Engineers Assigned
Factory visit: Welcomed Warmly

Specifications

Product Description
XHP Multi-cylinder Cone Crusher is designed by our company as a new high-performance crusher for the high hardness materials with latest foreign technology; it has been customized for dfferent material in project with different capacity.

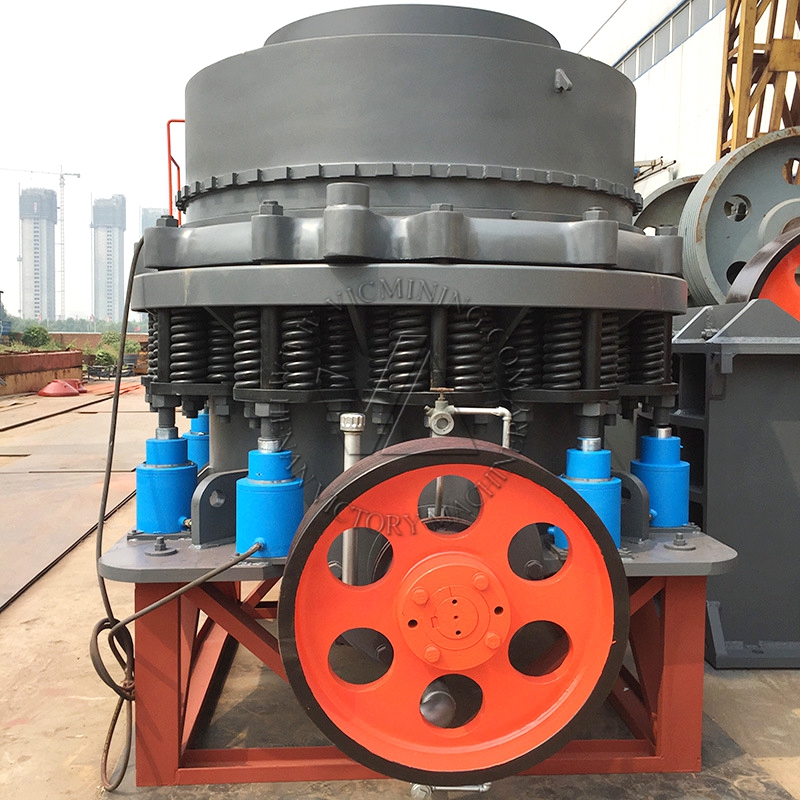

henan top good quality XHP multicylinder cone rock crusher manufacturer
Working Principle
When the cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. the crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. the raw materials are pressed, impacted and finally crushed in the crushing chamber.

  • Main feature

1. Flexible transmission, automatic clearing
2. Energy saving, environmental protection
3. High performance and good product granularity
4. High reliability, easy maintenance and easy operation.
5. Wide range of application

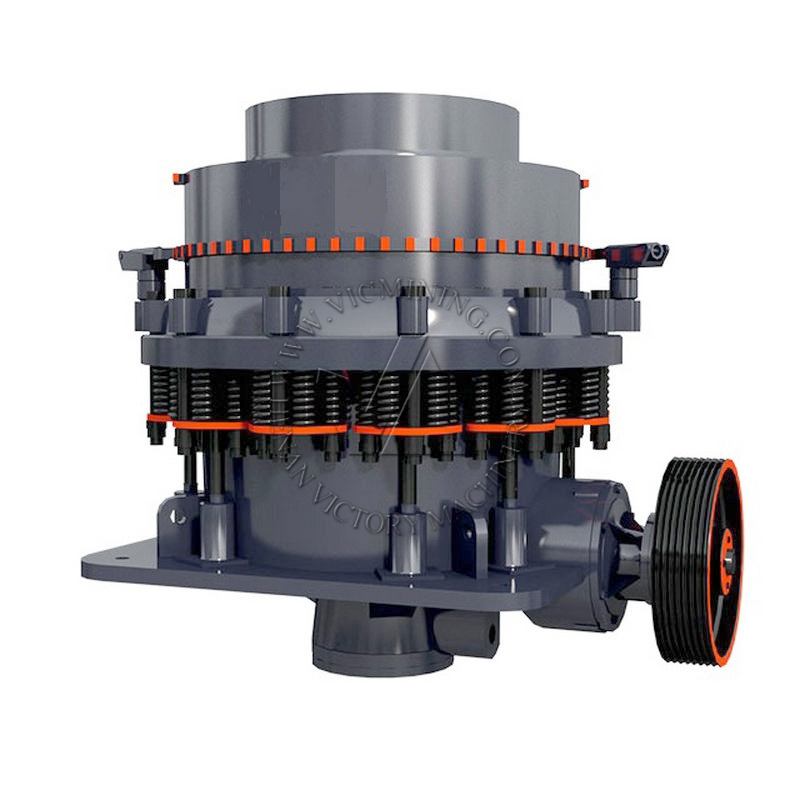

henan top good quality XHP multicylinder cone rock crusher manufacturer

Product Paramenters


Model
Chamber
Standard Type
Short-head Type
Power
(kw)
Capacity
(t/ h)
Feeding Size
(mm)
Min. Discharging Size (mm)
Feeding Size
(mm)
Min. Discharging Size (mm)
XHP-100
C
95
13
77
10
75-110
60-180
M
65
14
58
6
F
48
11
26
6
EF
10
5
XHP-200
C
185
19
76
10
132-200
90-250
M
125
17
54
6
F
95
13
23
6
EF
10
5
XHP-300
BC
230
25
180-250
115-440
C
210
20
75
10
M
150
15
50
8
F
105
10
20
6
EF
20
6
XHP-400
BC
295
30
280-355
140-630
C
250
25
90
10
M
195
20
50
8
F
110
14
40
6
EF
30
6
XHP-500
BC
330
30
355-450
175-790
C
285
25
90
13
M
200
20
55
10
F
133
16
40
8
EF
35
6
XHP-800
BC
353
32
550-630
260-1200
C
297
32
155
13
M
267
25
92
10
F
219
16
33
6
EF
40
6
