Features of VINER Industrial Silicon Carbide SiC heating elements

  Withstands as high as 1600C

  High strength and excellent shock resistance

  Heat source is free of noise and air Pollution

  Anti-oxidization, Anti- corrosion

  Easy Installation and Maintance

  Little Deformation

  More than 8000 hours Long Service Life

Rod Specifications and Resistance Range:

Diameter (mm)	Length of Hot Zone (mm)	Length of Cold Zone (mm)	Overall Length (mm)	Range of Resistance
8	100-300	60-200	240-700	2.1-7.2
12	100-400	100-350	300-1100	0.8-6.0
14	100-500	150-350	400-1200	0.8-5.6
16	200-600	200-350	600-1300	0.8-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-5.0
25	200-1200	250-700	700-2600	0.6-4.5
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.4
40	500-2700	250-800	1000-4300	0.5-3.0
45	500-3000	250-750	1000-4500	0.3-2.5
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-2.5

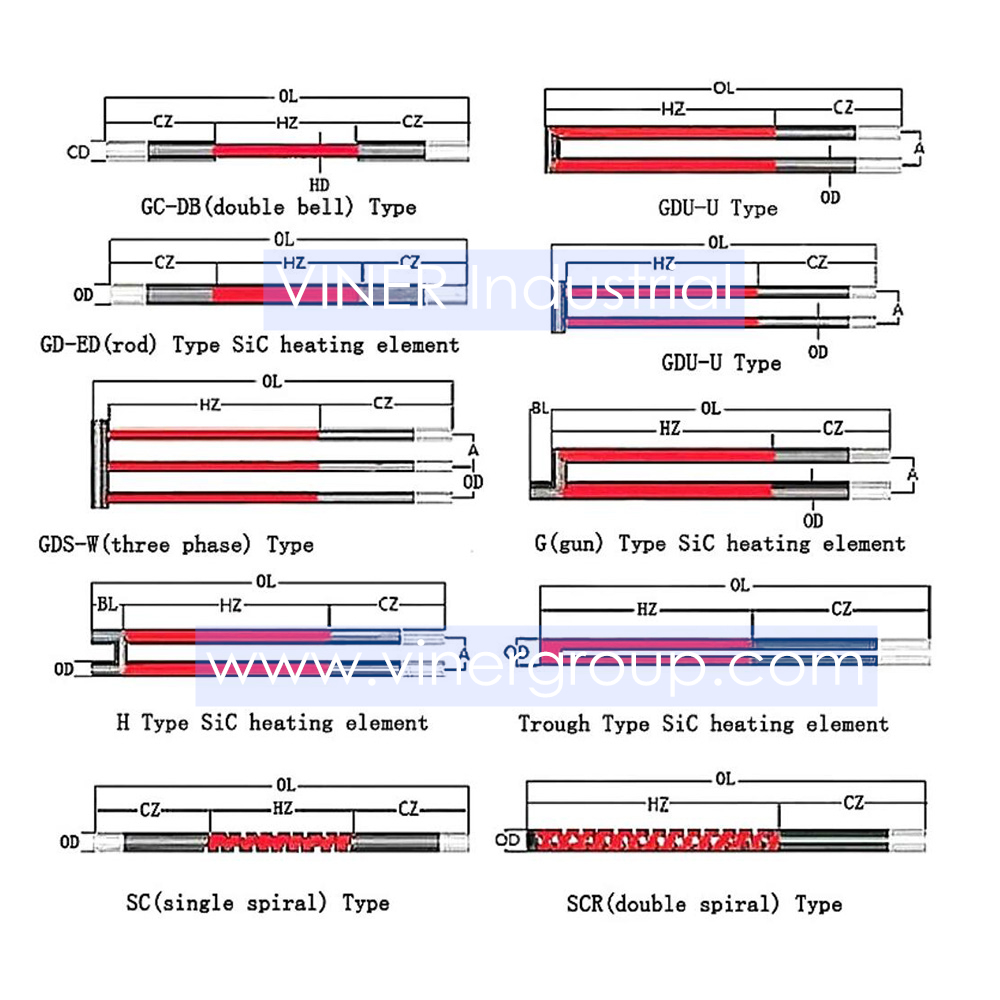

GD( straight)\ U-shape\ W-shape\ single spiral\ double spiral\ Slot

in case of any inquiry or order, please kindly state diameter, length of hot end as well as the total length and electric resistance, thank you.

VINER Industrial Silicon Carbide SiC heating elements Packaging:

in Standard Exporting Wooden Case

VINER Industrial Silicon Carbide SiC heating elements Shipment:

VINER could supply you the follow Shipping way for your choice:

--by DHL/Fedex (Door to door, Home Delivery service)

--by Air to your nearest Airport

--by Sea to your nearest Seaport

--by the sellers' shipping agent
