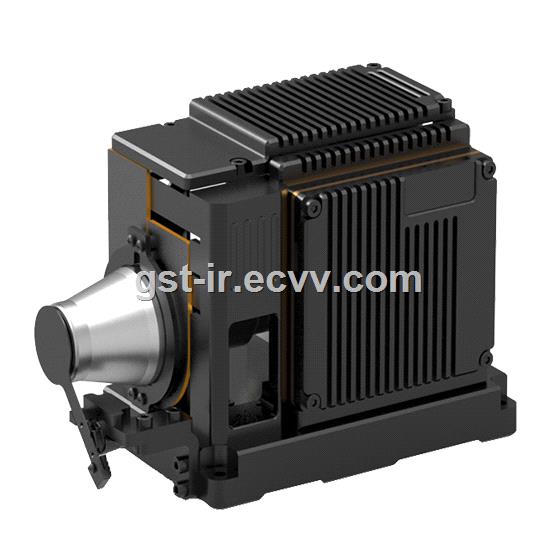

GAVIN series cooled thermal module utilizes GST MCT MID-wave cooled IR detectors and integrates various image processing algorithms to output clear infrared images in the total darkness or bad weather conditions.It can detect and recognize risks and threats at long distance while present more target details at short distance.

Features:
High detection rate and long range mission;
Compact design and high integration;
the image details are clearly identifiable;

Applications:
Handheld Reconnaissance Systems
Remote Monitoring Systems
Search and Track Systems
Aircraft Enhanced Vision Systems(EVS)
EOS Payload
Gas Detection
Nondestructive Testing
Spectral Analysis

Model	GAVIN1212	GAVIN615A	GAVIN615B	GAVIN615L	GAVIN330
Resolution	1280X1024	640X512	640X512	640X512	320X256
Pixel Pitch	12μm	15μm	15μm	15μm	30μm
Cooler	RS058F	RS058	RS046	RS046	RS058
Spectral Range	MWIR(3.7μm~4.8μm)
Cool Down Time(25C)	≤8min	≤7.5min	≤7.5min	≤7.5min	≤7.5min
NETD	≤30mK@20C	≤20mK@20C	≤20mK@20C	≤20mK@20C	≤20mK@20C
MRTD	≤300mK@(1/2α)	≤150mK@(1/2α)	≤150mK@(1/2α)	/	≤150mK@(1/2α)
Frame Rate	50Hz/100Hz	50Hz/100Hz	50Hz/100Hz	1-100Hz	50Hz/100Hz
Key Features	HDMI analog output,                             Cameralink digital video output, AUTO brightness & contract control, Support external synchronization control,                                                           Polarity switch,                                                        RS422 communication	PAL analog output,           Cameralink digital video output, AUTO brightness & contract control,  Support external synchronization control,                              Polarity switch,                              RS422 communication	PAL analog output,           Cameralink digital video output, AUTO brightness & contract control,  Support external synchronization control,                              Polarity switch,                              RS422 communication	Cameralink digital video output, AUTO brightness & contract control,  Support external synchronization control,                              Polarity switch,                              RS422 communication	PAL analog output,           Cameralink digital video output, AUTO brightness & contract control,  Support external synchronization control,                              Polarity switch,                              RS422 communication
Power Consumption	18W(Stable)	12W(Stable)	12W(Stable)	8W(Stable)	12W(Stable)
Power Supply	20~28VDC	20~28VDC	20~28VDC	5V for  imaging board; 12V for cooler	20~28VDC
External Interface	J30JZ 25pin HDMI Special Output Interface	J30JZ 25pin	J30JZ 25pin	QSH 60pin	J30JZ 25pin
Dimension(mm)	165x86x107	150x67x80	1259267	119x86.8x56.3	14258.577
Weight	≤1600g	≤950g	≤850g	≤420g	≤700g
Operation Temperature	-40°C ~ +60°C
Optical Lens	Continuous optical zoom: 22-660mm F4	Continuous optical zoom: 15-300mm F4 21-420mm F4 35-690mm F4		/	Continuous optical zoom: 15-300mm F4 21-420mm F4 35-690mm F4
