| Interface Type: | PCI Express |
|---|---|
| Transmission Rate: | 10/100/1000Mbps |
| Type: | Wireless |
| Application: | Server |
| Products Status: | Stock |
| Place of Origin: | China (Mainland) |
| Model Number: | LRST9661-2IR |
| Brand Name: | Linkreal |
| Certification: | Ce, Rohs |
| Kind: | Internal |
| Chipset: | Chipset |
| Interface Type: | 2*M.2 Connectors |
| Support Equipment: | 2*M.2 SSD |
| Host Bus Type: | PCIe 2.0 x1 |
Quick Details
Specifications
Product Description:

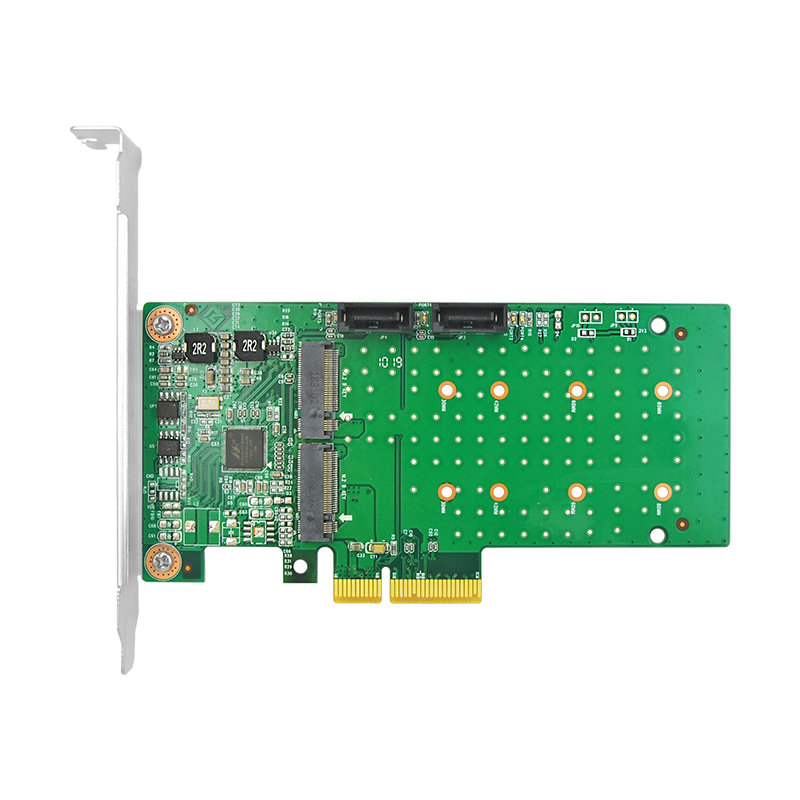

LRST9661-2IR is dual SATA III (6 Gbps) to PCI Express RAID Card. LRST9661-2IR is Serial ATA Advantage HCI controller, bridges PCI Express to two ports of Serial ATA 6Gbps, enables Serial ATA PHY up to 6Gbps high speed interface, supports SRIS (Separate Reference Clock with Independent Spread) function, complies with Serial ATA Revision 3.0 Specification.
Features:
LRST9661-2IR is dual SATA III (6 Gbps) to PCI Express RAID Card. LRST9661-2IR is Serial ATA Advantage HCI controller, bridges PCI Express to two ports of Serial ATA 6Gbps, enables Serial ATA PHY up to 6Gbps high speed interface, supports SRIS (Separate Reference Clock with Independent Spread) function, complies with Serial ATA Revision 3.0 Specification.
Features:
Compliant with Serial ATA Specification 3.0.
Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
Single virtual channel
SSC support
Serial ATA AHCI Spec. Rev.1.3
Supports two M.2 SATA ports.
ECRC and Advanced Error Reporting capability
Support Native Command Queuing (NCQ).
Support Port Multiplier
Support Gen 1m and 2m SATA PHY
RAID Level:0,1
HARDWARE | |
Model |
LRST9661-2IR |
Number of Drives |
2 Internal |
I/O Controller |
ASMedia1061R |
Bus Type |
PCI Express 2.0 x1 |
Compatible Drive Types |
2 M.2 SATA SSDs |
Interface |
2 M.2 B Key |
CONNECTORS(S) | |
Drive Connectors |
2*M.2 SATA Connectors |
Host Connectors |
PCIe 2.0 x1 |
ENVIRONMENTAL | |
Humidity |
0% 90% |
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
Storage Temperature |
-10°C to 65°C (14°F to 149°F) |
PHYSICAL CHARACTERISTICS | |
Dimension |
136mm*69mm |
Product Weight |
46g |
WARRANTY INFORMATION | |
Warranty |
2 Years |
PACKAGING INFORMATION | |
Shipping (Package)Weight |
3.0oz [86 g] |
WHAT'S in the BOX | |
Included in Package |
1 - PCI Express to M.2 SATA adapter |
1 Full profile bracket (installed) | |
1 Low profile bracket | |
