| Technique: | Cold Rolled |
|---|---|
| Type: | Steel Coil |
| Brand Name: | Tiga |
| Thickness: | 0.14-1.5mm |
| Standard: | AISI,ASTM,BS,DIN,GB,JIS |
| Length: | 1000-20000mm |
| Width: | 600-1500mm |
| Special Use: | High-strength Steel Plate |
| Application: | Container Plate |
| Surface Treatment: | Coated |
| Model Number: | PPGL |
| Place of Origin: | China (Mainland) |
| Grade: | Dx51d |
| Surface Pattern: | Matte/Filmed/Printed/Embossed/Normal |
| Treatment of Surface: | Dry/Oiled/Chromate/AFP |
| Thickness: | 0.14-2.0mm (Tolerance: -0.02-+0.01mm) |
| Width: | 600-1500mm or as Customers' Requirement |
| Coil ID: | 508/610mm |
| Alu-Zinc Coating: | 55%Alu,43%Zinc |
| Top Paint: | PE(Regular), SMP, PVDF, HDP |
| Paint of Coating: | 14-25micron(Front), 7-15micron(Back) |
| Color: | Ral Color or as Customers' Sample |
| Coil Weight: | 3-5T |
Quick Details
Specifications

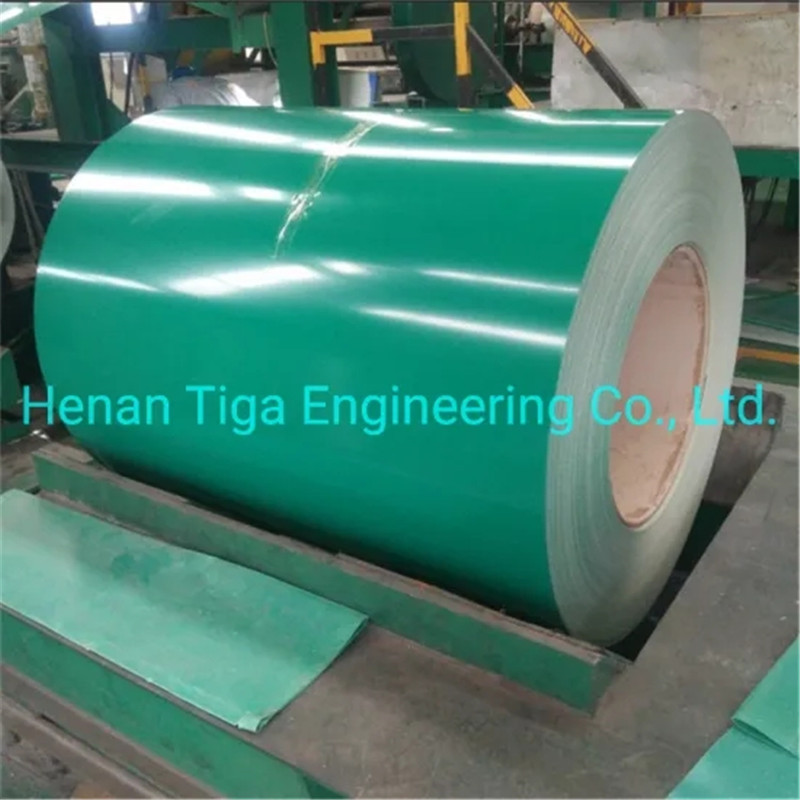

Prepainted Zinc Aluminum Color Coated Matt PPGL Steel Coils Manufacturer
1.Introduction:
Prepainted galvalume steel coils are new materials produced in recent years due to high-end applications in China. It is made of zinc aluminum coated steel coils as substrate which is processed by surface degreasing, phosphating, and complex acid salt treatment, and then it is coated with organic paint to get better anti corrossion property and beautiful surface.
2.Pain Coating type:
1. Regular modified polyester (PE)
2. Self-cleaning (Ever Clean, or Self-Clean)
3. Silicon modified polyester (SMP)
4. Hi-Durable polyester (HDP)
5. Fluorocarbon (PVDF)
3.Coating structures
2/1 2 layers of paint coating on top surface and 1 layers of paint coating on back surface;
2/2 2 layers of paint coating on top surface and 2 layer of paint coating on back surface.
