Diodes - Bridge Rectifiers
Packaging: Bulk
Part Status: Active
Diode Type: Single Phase
Technology: Standard
Voltage - Peak Reverse (Max): KBPC50005-50V KBPC5001-100V KBPC5002-200V KBPC5004-400V KBPC5006-600V KBPC5008-800V KBPC5010-1kV
Current - Average Rectified (Io): 50A
Voltage - Forward (Vf) (Max) @ If: 1.1V @ 25A
Current - Reverse Leakage @ Vr: 5A
Operating Temperature: -55°C ~ 125°C (TJ)
Storage Temperature: -55°C ~ 150°C
Mounting Type: QC Terminal

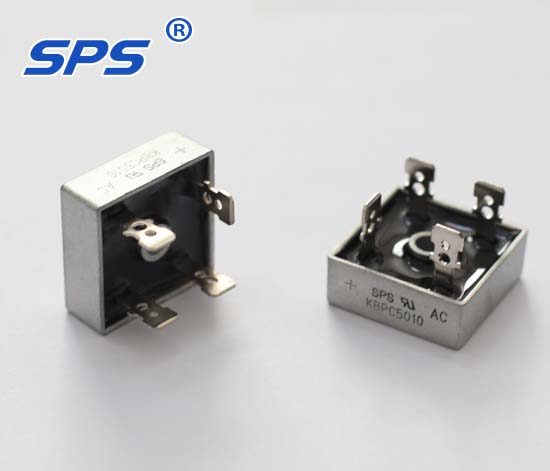

Package / Case: 4-Square, KBPC

Generally, There are 3 numbers in the name of the rectifier bridge, the first Number represents the rated current, A; the last two numbers represent The amount of voltage (number * 100), V
for example: KBL407 is 4A, 700V
KBPC5010 Is 50A, 1000V (005, 01, 02, 04, 06, 08, 10 respectively represent 50V, 100V, 200V, 400V, 600V, 800V, 1000V of the voltage file).

There are four types of rectifier bridge packages: square bridge, flat bridge, round bridge, and patch MINI bridge;
Square bridges are mainly packaged BR3, BR6, BR8, GBPC, KBPC, KBPC-W, GBPC-W, MT-35 (three-phase bridge);
Flat bridges are mainly packaged KBP, KBL, KBU, KBJ, GBU, GBJ, D3K;
Circular bridges are mainly packaged WOB, WOM, RB-1;
the main package of the chip MINI bridge BDS, MBS, MBF, ABS
