Diodes - Bridge Rectifiers
Packaging: Bulk
Part Status: Active
Diode Type: Single Phase
Technology: Standard
Voltage - Peak Reverse (Max): KBPC25005-50V KBPC2501-100V KBPC2502-200V KBPC2504-400V KBPC2506-600V KBPC2508-800V KBPC2510-1kV
Current - Average Rectified (Io): 25A
Voltage - Forward (Vf) (Max) @ If: 1V @ 5A
Current - Reverse Leakage @ Vr: 5A @
Operating Temperature: -55°C ~ 125°C (TJ)
Storage temperature range: -55°C ~ 150°C
Mounting Type: QC Terminal
Package / Case: 4-Square, KBPC

FEATURES
Rating to 1000V PRV
Surge overload rating to 240 Amperes peak
Ideal for printed circuit board
Reliable low cost construction utilizing molded
Plastic technique results in inexpensive product
Lead solderable per MIL-STD-202 method 208
Mounting: thru hole for # 10 screw Mounting

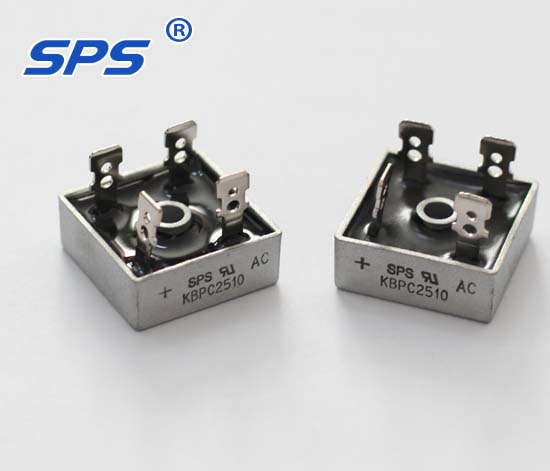

KBPC2510 is a single-phase rectifier bridge.
the mark + is the rectified output DC positive pole, and the diagonal is DC negative pole.
Mark AC or ~ and diagonal for AC input

KBPC2510 is a metal case. the polarity is indicated by the polarity symbol.
Epoxy: UL94V-O rate flame retardant
Polarity: Polarity symbol indicates the case
