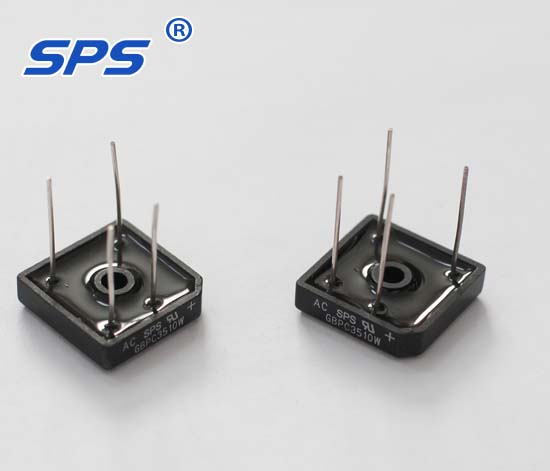

SPS 35A 50V-1000V GPP Bridge Rectifiers GBPC35005 GBPC3501 GBPC3502 GBPC3504 GBPC3506 GBPC3508 GBPC3510 GBPC Package
Categories: Discrete Semiconductor Products Diodes - Bridge Rectifiers
Packaging: Bulk
Part Status: Active
Diode Type: Single Phase
Technology: Standard
Voltage - Peak Reverse (Max): GBPC35005-50V, GBPC3501-100V, GBPC3502-200V, GBPC3504-400V, GBPC3506-600V, GBPC3508-800V, GBPC3510-1kV
Current - Average Rectified (Io): 35A
Voltage - Forward (Vf) (Max) @ If1V @: 1.1V @ 17.5A
Operating Temperature: -55°C ~ 150°C
Mounting Type: through Hole
Package / Case: GBPC
Environmental & Export Classifications: RoHS compliant
FEATURES
Rating to 1000V PRV
High efficiency
Glass passivated chip junction
Electrically isolated metal case for maximum heat dissipation
the plastic material has UL flammability classification 94V-0
Electrically isolated base-2500 Vlots
