Quick Details

Brand Name:	suntay
Alloy Or Not:	Non-alloy
Application:	Rope
Type:	Galvanized
Standard:	AISI,ASTM,BS,DIN,GB,JIS
Special Use:	Free Cutting Steel
Place of Origin:	China (Mainland)
Wire Gauge:	1.0mm-5.0mm
Steel Grade:	45#,60#,70#,80#
Material:	high carbon wire rod
Surface treatment:	hot-dipped Galvanized
single wire size:	1.0-5.0mm

Specifications

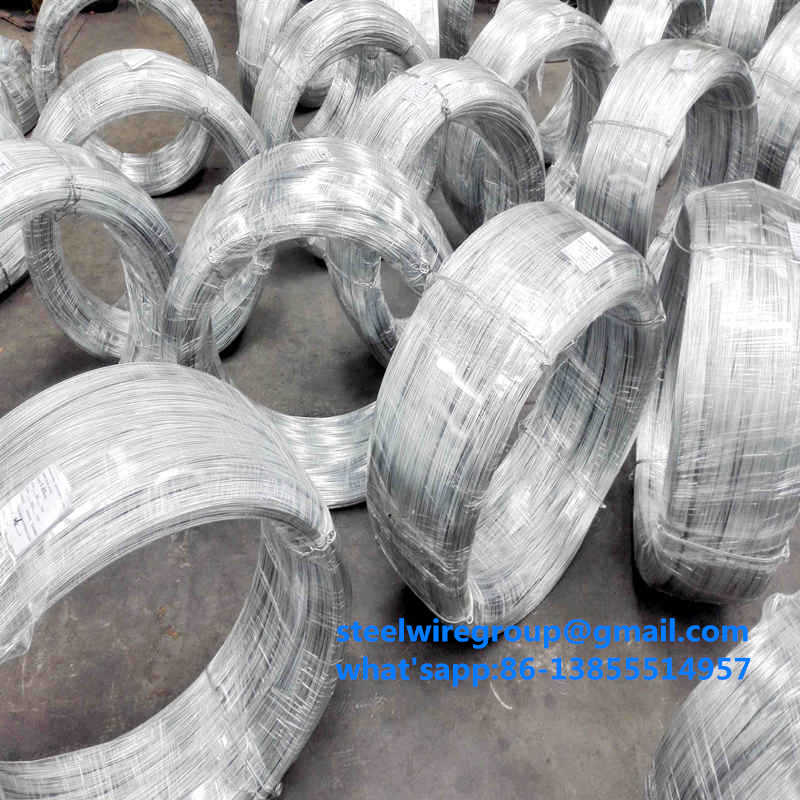

Hot dipped Galvanized Steel Wire for ACSR conductor,Farming and wire rope

Galvanized Steel Core Wire

Galvanized steel wire for ACSR conductors (GOST 9850-72). 1)      Wire diameter:

1-st group 2-nd group

1,85 mm up to 2,20 mm tolerance ±0,03 mm2,30 mm up to 2,65 mm tolerance ±0,04 mm2,80 mm up to 3,50 mm tolerance ±0,05 mm3,80 mm up to 4,50 mm tolerance ±0,06 mm 1,85 mm up to 2,20 mm tolerance ±0,05 mm 2,30 mm up to 2,95 mm tolerance ±0,06 mm3,05 mm up to 3,80 mm tolerance ±0,07 mm3,60 mm up to 4,50 mm tolerance ±0,09 mm

  2)      Zinc coating:

1-st group 2-nd group

1,85 mm up to 2,00 mm 70 g/m²2,10 mm up to 2,40 mm 80 g/m²2,50 mm up to 4,50 mm 100 g/m² 1,85 mm up to 2,20 mm 215 g/m²2,30 mm up to 2,95 mm 230 g/m²3,05 mm up to 3,40 mm 245 g/m²3,60 mm up to 3,80 mm 260 g/m²4,50 mm 275 g/m²

  3)      Mechanical properties:

Wire diameter, mm Class Class B

Tensile strength, N/mm² Stress at 1% elongation, N/mm² Relative elongation, % Tensile strength, N/mm² Stress at 1% elongation, N/mm² Relative elongation, %

Not less

1,852,002,102,20 1450 1310 2,5 1340 1170 3,0

2,302,402,502,652,802,953,053,203,403,50 1410 1280 1310 1140

3,0 3,5

1240 1290 1100

3,603,804,50 1380 1170 4,0

Packing in coil or on reel or in Z2 packingWe will supply as per customers' requirments

1-st group	2-nd group
1,85 mm up to 2,20 mm tolerance ±0,03 mm2,30 mm up to 2,65 mm tolerance ±0,04 mm2,80 mm up to 3,50 mm tolerance ±0,05 mm3,80 mm up to 4,50 mm tolerance ±0,06 mm	1,85 mm up to 2,20 mm tolerance ±0,05 mm 2,30 mm up to 2,95 mm tolerance ±0,06 mm3,05 mm up to 3,80 mm tolerance ±0,07 mm3,60 mm up to 4,50 mm tolerance ±0,09 mm

1-st group	2-nd group
1,85 mm up to 2,00 mm 70 g/m²2,10 mm up to 2,40 mm 80 g/m²2,50 mm up to 4,50 mm 100 g/m²	1,85 mm up to 2,20 mm 215 g/m²2,30 mm up to 2,95 mm 230 g/m²3,05 mm up to 3,40 mm 245 g/m²3,60 mm up to 3,80 mm 260 g/m²4,50 mm 275 g/m²

Wire diameter, mm	Class			Class B
	Tensile strength, N/mm²	Stress at 1% elongation, N/mm²	Relative elongation, %	Tensile strength, N/mm²	Stress at 1% elongation, N/mm²	Relative elongation, %
	Not less
1,852,002,102,20	1450	1310	2,5	1340	1170	3,0
2,302,402,502,652,802,953,053,203,403,50	1410	1280		1310	1140
			3,0			3,5
		1240		1290	1100
3,603,804,50	1380	1170				4,0
