Interface Type: | PCI Express |
---|---|
Transmission Rate: | 10/100/1000Mbps |
Type: | Wireless |
Application: | Server |
Products Status: | Stock |
Place of Origin: | China (Mainland) |
Model Number: | LRSU9A42-AC |
Brand Name: | Linkreal |
Certification: | Ce, Rohs |
Kind: | Internal |
Main Chipset: | ASM1142 & ASM1543 |
Interface Type: | 1*USB3.1 Type-A & 1*USB3.1 Type-C |
Host Bus Type: | PCIe 3.0 x4 |
Quick Details
Specifications
Functional Characteristics
ASM1142 chip, USB3.1 Host controller, bridge PCI Express to 2 port USB3.1. up to 10Gbps bandwidth performance. Backward compatible with USB2.0 function and device. PCIe X4 interface,compatible with slot X8,X16. 2 standard USB3.1 type A interfaces, support 10G/5G/480M USB data transfer rate. Compliant with USB 3.1 Gen2. Support multiple USB devices operating at the same time. Each USB port provides the maximum output: +5VDC/900mA. Support Wake On LAN of USB keyboard or mouse devices. Input power: 15-pin SATA CD-ROM power connection. Support Control, Bulk, Stream, Interrupt, Isochronous. Support USB device hot-plugging
Technical specifications

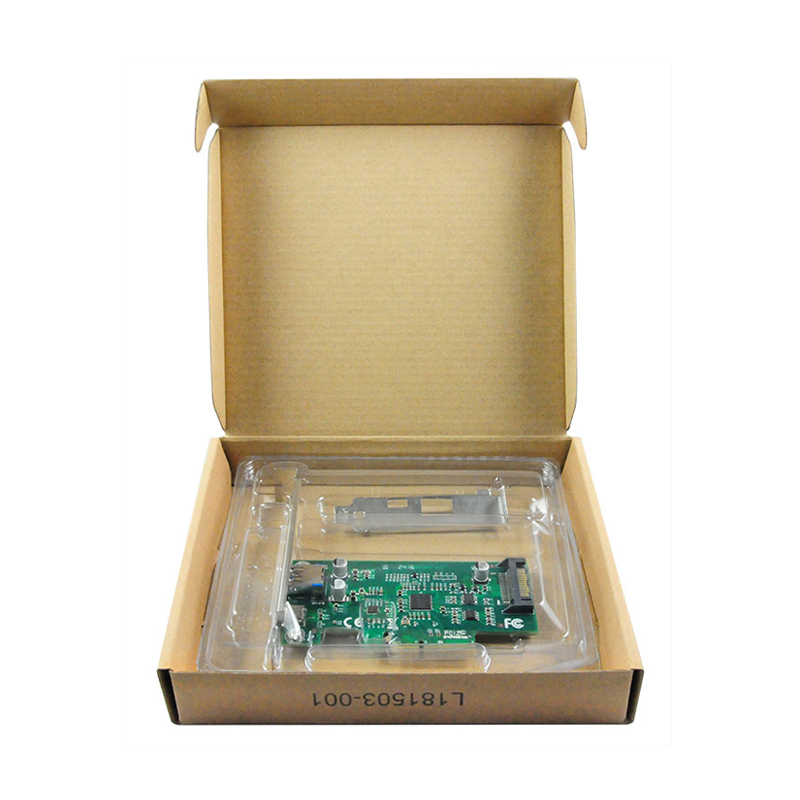

Host Bus Type: PCI-Express 3.0, USB3.1O Controller: ASM1142 Connector: USB3.1 Host Bus Type: x4 channel, and compatible x8,x16 SATA supply voltage: 12V±8% 5V±9% Dimension: 105.4*55.5mm Weight: 60g Power dissipation: 1.5W Working Humidity: 5% 95% Working Temperature: 0°C 60°C (32°F - 140°F) Storage Temperature: -20°C70°C Warranty: 2 Years WHAT'S IN the BOX 1 - USB 3.1 PCIe adapter card 1 - low-profile bracket 1 - full-profile bracket(installed) 1 - Warranty Card
