Functional Characteristics

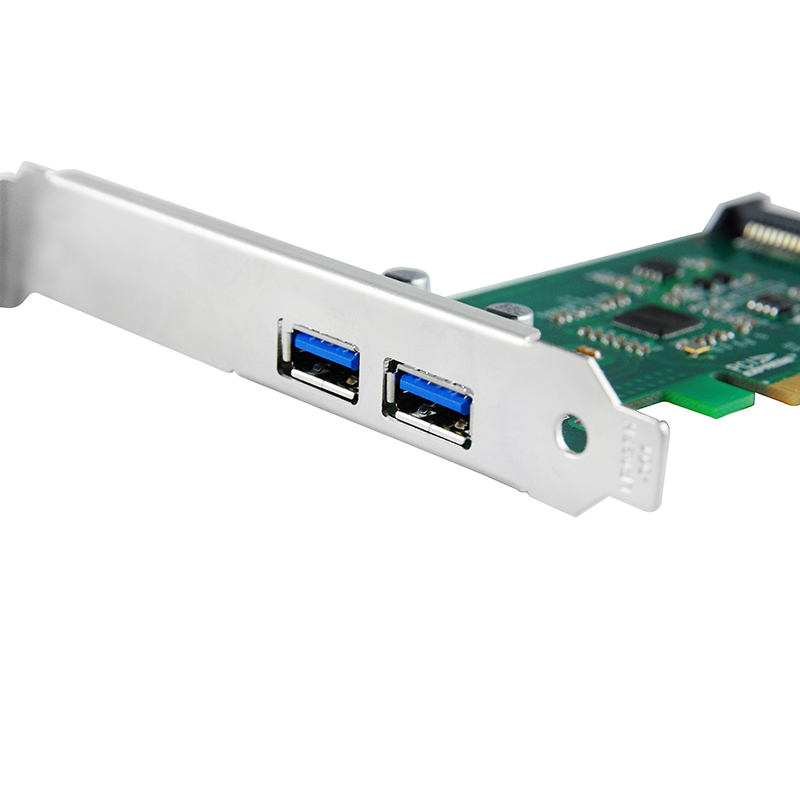

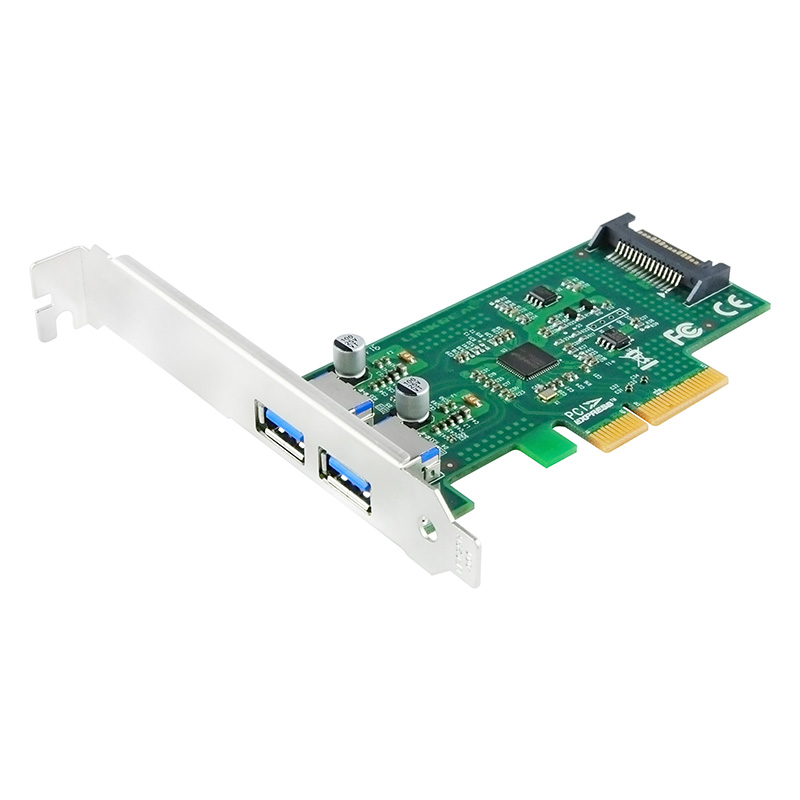

ASM1142 chip, USB3.1 Host controller, bridge PCI Express to 2 port USB3.1. up to 10Gbps bandwidth performance. Backward compatible with USB2.0 function and device. PCIe x4 interface,compatible with x8,x16 slot. 2 standard USB3.1 Type A interfaces, support 10G/5G/480M USB data transfer rate. Compliant with USB 3.1 Gen2. Support multiple USB devices operating at the same time. Each USB port provides the maximum output: +5VDC/900mA. Support Wake On LAN of USB keyboard or mouse devices. Input power: 15-pin SATA CD-ROM power connection. Support Control, Bulk, Stream, Interrupt, Isochronous. Support USB device hot-plugging.

Technical specifications

Connector: USB3.1 Controller: ASM1142 PCIe interface card type: x4 channel, and compatible with x8, x16 slot Supply Voltage: 12V±8% 5V±9% Dimension: 105.4mm*55.5mm Weight: 60g Power dissipation: 1.5W Working Humidity: 5% 95% Working Temperature: 0°C 60°C (32°F - 140°F) Storage Temperature: -20°C70°C (-4°F - 158°F) WHAT'S IN the BOX 1 - USB Type-A Expansion Adapter 1 - low-profile bracket 1 - full-height bracket (installed) 1 - Warranty Card
