| Interface Type: | PCI Express |
|---|---|
| Transmission Rate: | 10/100/1000Mbps |
| Type: | Wireless |
| Application: | Server |
| Products Status: | Stock |
| Place of Origin: | China (Mainland) |
| Model Number: | LRNV9611 |
| Brand Name: | Linkreal |
| Certification: | Ce, Rohs |
| Kind: | Internal |

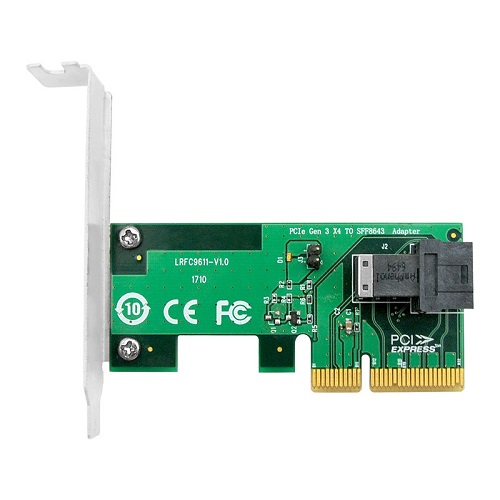

| Product Name: | PCIe 3.0 x4 to NVMe Adapter Card |
| Interface Type: | 1*SFF-8643 |
| Support Equipment: | 1*NVMe SSD |
| Host Bus Type: | PCIe 3.0 x4 |
Quick Details
Specifications
Features
Built-in SFF-8643 plug connector
Allow 2.5" (SFF-8639) NVMe (SFF-8639) SSD to connect to the system via the SFF-8643 cable.
PCI Express Card electro-mechanical * (CEM) specification 2.0
NVM Express 1.0
Support for PCIe 3.0, 2.0 and 1.0
Maximum throughput:
PCIe 3.0 has a throughput of 32 Gbps
PCIe 2.0 has a throughput of 16 Gbps
PCIe 1.0 has a throughput of 8 Gbps
Industry working temperature: - 40 ° C to + 85 ° C
Working humidity: 5%-95% (non-condensation)
the adapter card does not require a driver
PCI Express basic specification revision 3.0
SFF-8643 Min SAS hard disk version 3.5
Operating system support
Windows 7/8/8. 1/10 of 64 - bit
UEFI version 2.3.1 or above
