| Brand Name: | VINER |
|---|---|
| Material: | Alumina Ceramic |
| Application: | Ceramic Decorations |
| Type: | Ceramic Tubes |
| Color: | ivory |
| Model Number: | VN-AT |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

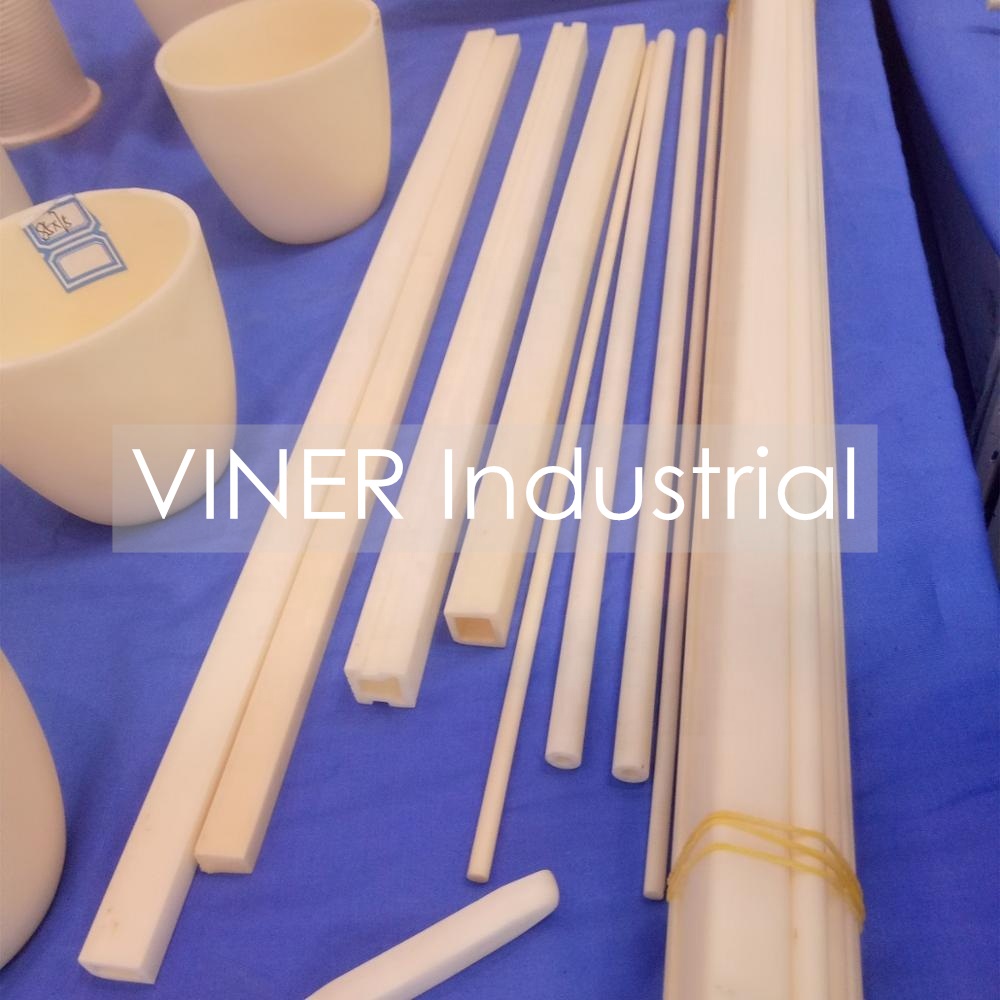

VINER Industrial Alumina Ceramic Tubes are widely used in thermocouple protections and some are used in Furnaces. We could design both open for two ends, and one open, the other Closed. Also we could make with 1 or 2 or 4 or 6 holes in the tubes. The size Ranges from 6mm to 180mm for OD, and the length is from 10mm to 3000mm.
Selection of a variety of high-quality ceramic materials, hot, dry-pressed or injection molding, from High-temperature sintering of alumina ceramic tubes (which can be mechanical or Electronic finishing, the tolerances up to +/- 0.01mm), high hardness, Insulation, wear-resistant, high temperature-resistant, hot and cold Shock-resistant.
VINER Industrial Alumina Ceramic Tube Standard Sizes:
OD/ID:6/3mm, 8/5, 10/7, 12/8, 14/10, 16/12, 20/14, 25/19, 30/25, 40/34, 50/44, 60/53, 70/63, 80/70, 85/75, 90/80, 100/90, 110/100, 120/110, 130/120, 140/130, 150/140, 160/150, 180/170mm
Length:10~3000mm
Note: Other size can be produced according to customers' Requirement. Crucibles with different shape and various kinds and Specifications can be provided by our company.
VINER Industrial Alumina Ceramic Tube Main Performance Index:
Performance Index |
99.7 Alumina |
99 Alumina |
85Alumina |
Al2O3 (%) |
99.7 |
99.3 |
85 |
SiO2 (%) |
<0.1 |
||
Density (g/cm3) |
3.95 |
3.88 |
3.2 |
Water Absorption (%) |
0 |
0.1 |
0.2 |
Cold Compressive Strength (MPa) |
450 |
350 |
200 |
20C Leak Rates (Torr/L.Sec) |
<10-11 |
<10-11 |
<10-11 |
Twisting In High Temperature (mm) |
0.2 Allowance |
1600C 0.2 allowance |
1400C 0.2 allowance |
Bonding In High Temperature |
1700C non-caked |
1600C non-caked |
1400C non-caked |
201000C Coefficient of Thermal Expansion (mm.10-6/C m) |
8.6 |
8.2 |
8.2 |
Thermal Conductivity (W/m.K) |
25 |
25 |
25 |
Electric Insulation Strength (KV/mm) |
20 |
20 |
15 |
20C Direct Current Insulating Resistance (Ohm/cm) |
1014 |
1014 |
1014 |
High-Temperature(1000C MΩ) Insulation Resistance (1300C MΩ_ |
≥0.08 |
≥0.08 |
≥0.08 |
≥0.02 |
≥0.02 |
≥0.02 | |
Thermal Shock Resistance |
1550C 6 times not cracked |
1550C 6 times not cracked |
1300C 3 times not cracked |
Max. Temperature (C) |
1900 |
1800 |
1400 |
VINER Industrial Alumina Ceramic Tube Typical Application:
Alumina ceramic tube is mainly applied to wear, serious scour of material handling occasions, such as coal-fired power generation, metallurgy, coal, mining, industry, and other geological materials pipeline, as well as the use of electronic appliances such as insulation pipe; alumina ceramic rods is widely used in the industry of resistance to temperature and thermostat, as a resistance ceramic matrix and two-metal thermostat used in ceramic-top column.
VINER IndustrialAlumina Ceramic TubeWarranty:
Our Alumina Tubes are Warranted to be free from defects in materials or workmanship for 6months from the date of purchase. this warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
VINER Industrial Alumina Ceramic Products:
the content of 99.7%, 99%, 95% alumina products contains the crucible, sockets, valves, electrodes, spools, wear board, alumina balls, Electronic porcelain, textile porcelain pieces, and other shaped pieces.
Alumina Ceramic Tube
Alumina Ceramic Protective Tube
Alumina Ceramic Crucible
Alumina Ceramic Boat
Alumina Ceramic Plate
Alumina Ceramic Disc
Alumina Ceramic Rod
Alumina Ceramic Ring
Alumina Textile Ceramics
Alumina Ceramic Balls
Welcome to visit manufacture line!! Wait for your Testing our Alumina Ceramic products!!
Company Information
VINER Industrial Specializes in 99.9%, 99.7%, 95%, 90%, 85%, 80% and 60% Alumina Ceramics Tube/Protective Tube/Crucible/Boat/Rod/Ring/Plate/Roller/Tile/Block/Brick/Balls/Insulators Types. Welcome to inquiry for our Alumina Ceramics, our new fresh prices will Be offered to you.
Also different sizes and kinds of high temperature furnaces including Muffle Furnace, Vacuum/Vertical/Rotary/Multi-Position/Multi-Zones Tube Furnace, Vacuum Furnace, Atmosphere Furnace, Crucible Furnace, Loading and Bottom Furnace, Zirconia Sintering Furnace, Vacuum Drying Oven. What is more, VINER Industrial produces and supplies high temperature Kiln Furnace Spare Parts including MoSi2/SiC heating elements, Ceramic Fiber Refractory, Alumina/Zirconia Ceramics, SiC Ceramics, Boron Nitride (BN) Ceramics, Vacuum Flanges, Thermocouple, PID Temperature Controller, Quartz Furnace Tube, Resistance Wire, etc. Ps kindly inquiry us, we will try our best To serve you.
