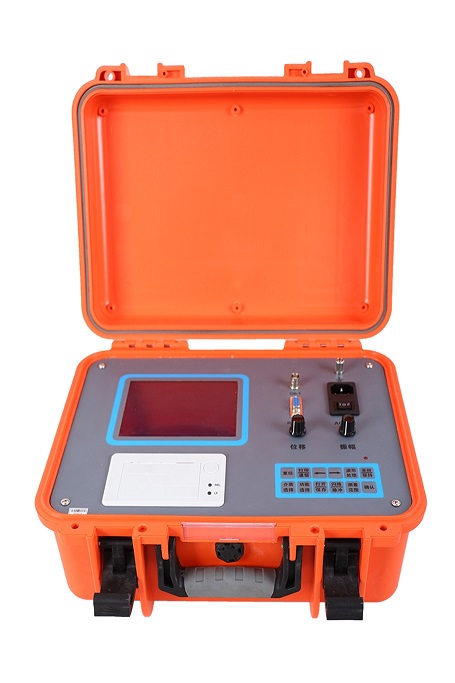

High voltage underground cable fault locator underground cable route tracer

Display: Industrial grade 5.7 "LCD display---Angle view>160,2,SCM centralized control, push button operation, with strong anti -interference ability;.
Measuring method: TDR Measurement method flashover sampling and impulse current method
Pulse amplitude: 100Vp-p
Pulse width: 0.1uS...2uS
Output impedance:50?
Resolution:0.5m
Dynamic range:>75db
Measuring distance: 15m...30km
Dead zone: None
Accuracy of distance measurement:±1%
Power supply: AC 220V+/-10% 50Hz
DC 24V/7Ah, continuous work for 6 hours
Data storage: 10 set
Weight:4.4kg
Dimensions: 350mm*280mm*170mm
Working conditions: temperature: -10 C ~ +45 C Relative humidity:90%
