Cable and pipe fault tester/ cable detector

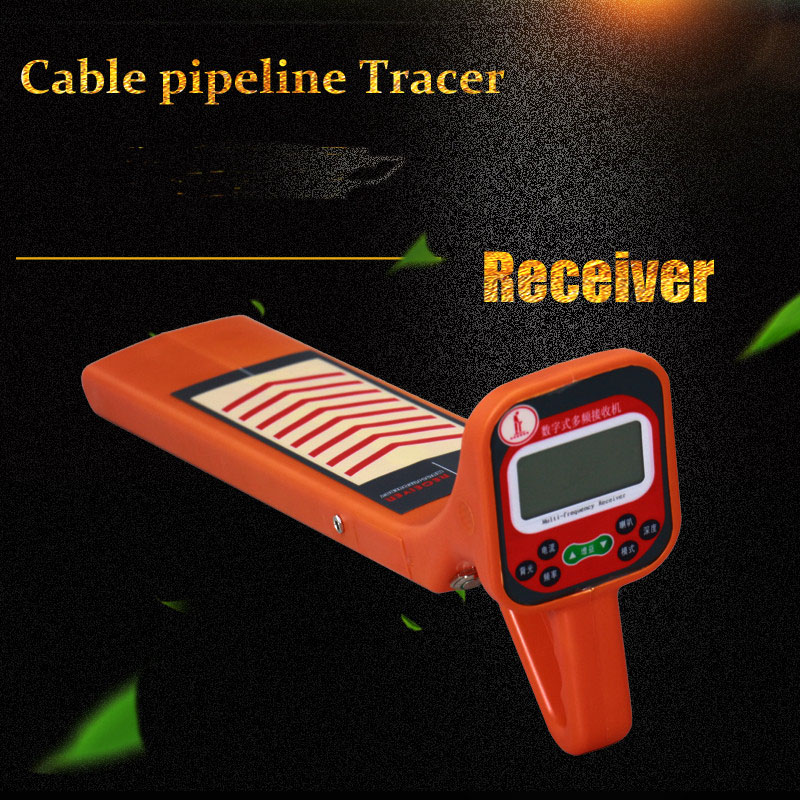

Receiver
Operating frequency: low frequency, RF
Antenna pattern: the trough method (vertical coil), the peak method (horizontal coil)
Sound indication: signal intensity changes with the FM tone
Current indication: Display the current value of the effective cable under test (unit: mA)
Operating temperature: -10 ° C - +55 ° C
Battery Type: 7.4V lithium battery
Battery indicator: graphics
Battery life: continuous > 8 hours: stopped working > 16 hours
Size: 70cm  20cm  11cm
Weight: 3 kg (with battery)
Signal strength, said: ladder, the number range 0 - 999
Gain Control: manually adjust the dynamic range of 100db
Detection depth: Maximum depth of not less than 5m probe
Maximum detection range: direct law insulated cable up to 15km
Depth measurement: according to the depth of three key figures, the maximum depth can be measured up to 2.5 m
Accuracy: LF: ± (1-5)% ≤ 2 5 meter  RF: ± (5-12)% ≤ 2 5 meter

Transmitter
Operating frequency: low frequency, RF
Mode: direct method, coupling method, inductive method
Matched load: 5 ohms -3000 ohms
Impedance display: five digits
Thermal over-current: automatic protection
Power output: low block, MID-range, high gear
Battery Type:7.4V lithium battery
Battery life: working 4-8 hours depending on use frequency, output power
Intermittent work 6-10 hours depending on the frequency of use, output power
Operating temperature: -10 ° C-55 ° C
Dimensions: 16cm  16cm  39cm
Weight: 4 kg (with battery)
