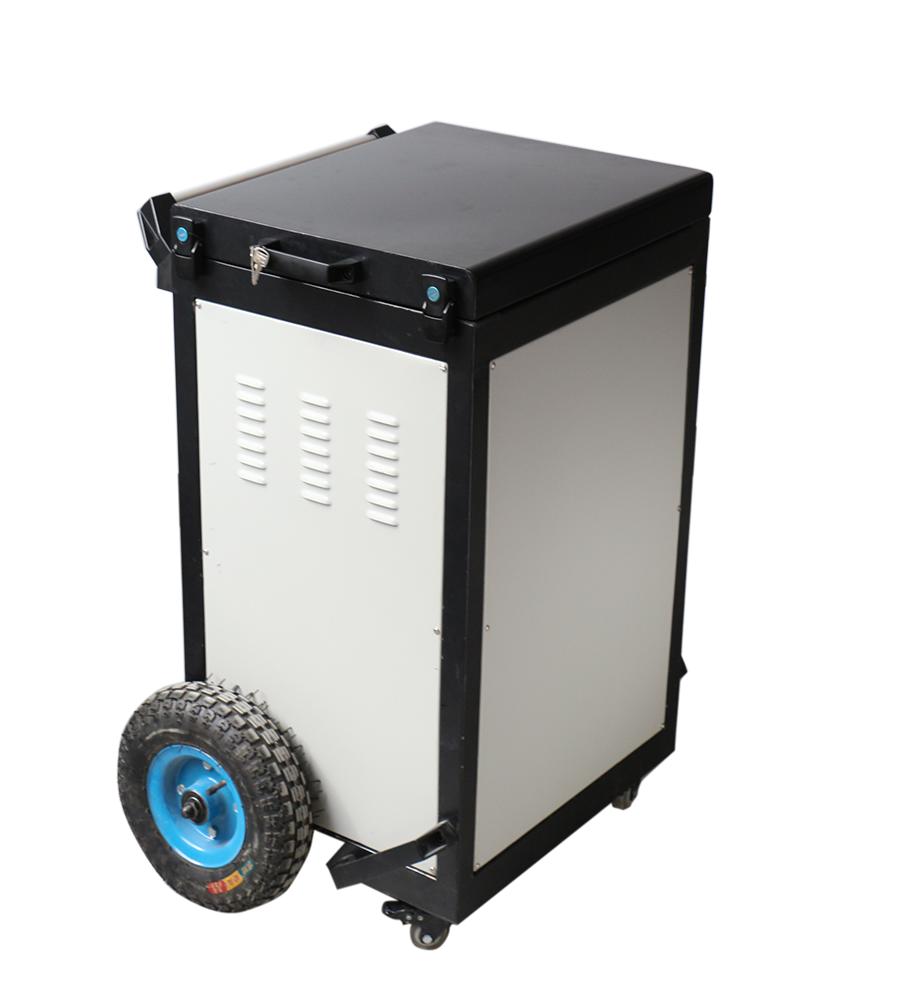

High Voltage HV DC Impulse Generator

the machine has three voltage 8kv,16kv,32kv. the user can select a voltage according to the test situation. It is more convenice for different kind of cable fault testing. the machine also has the function of auto discharging and manual discharging,which provide more selection for user.

Technical data:
the surge HV voltage: 0 ~32kv
High voltage divider: Voltage Accuracy 1.5 grade
Inside capacitor: 4μF/32kV,16μF/16kV,64μF/8kV
Surge time: Auto surge about 4s, also can control by hands.
Surge energy: 2048J
Surge power: 2KVA
Size: 534L444W805H
Weight: not more than 75kg
Power supply: AC 220V + 10% 50Hz/±2Hz
Environment temperature: -20 ~ +50 C
