Loss prevention system device; Security system; Security integration.
IASP; VSCS; ESA; ACS; exit-inlet control system; exit-inlet control system
FEATURES:
Multi. Protection circuits, Gas-Tube+ TVS technology
Dual protection in Common mode and differential mode
TVS array technology, low capacitance
Multi-Strike Capability
RJ45 connector
TECHNICAL PARAMETER:

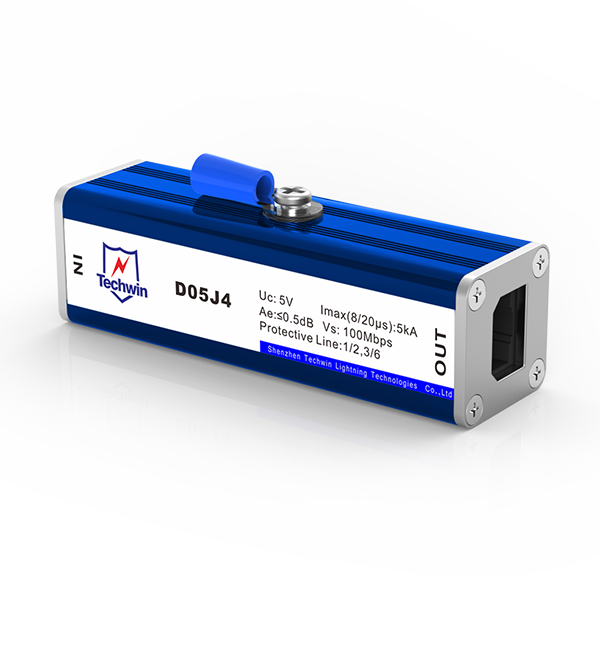

ModelD05J4
Electrical Parameter
Max. Continuous operating voltage Uc5V
Nominal discharge current(8/20s)In3kA
Max. Discharge current  (8/20s)Imax5kA
Limiting voltage (10/700s) up
Line-line25V
Line-ground500V
Adapt transmission rate1000Mbps
Insertion loss0.5dB
Protection line1/2, 3/6,4/5,7/8
Response time tA1ns
Interface formRJ45
Protection way2
Protection port1
Mechanical characteristics
Dimension83(L) 25(W) 25(H)mm
Weight per unit76g
IP CodeIP20
Working conditionsTemperature: -40 to 80℃,
Relative humidity: ≤95
Standards ComplianceIEC61643-1, RoHS
