| Brand Name: | techwin |
|---|---|
| Application: | Signal protector internet |
| Category: | Security project |
| Family: | lightning arrester |

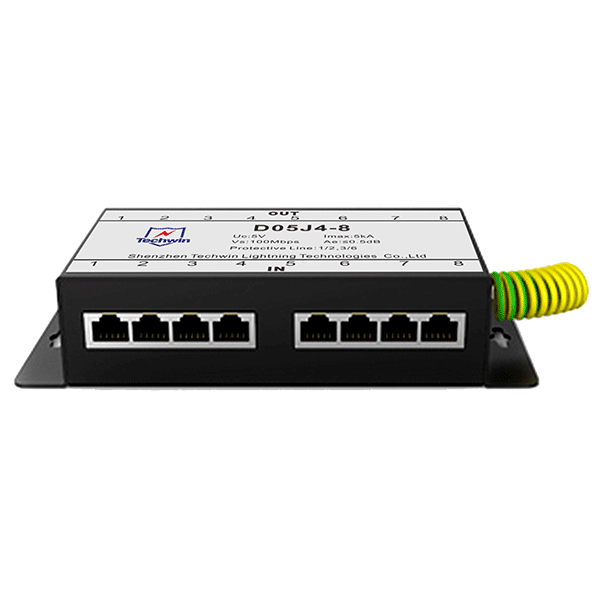

| Function: | Techwin 8 in 1 Switch Surge Arrester |
| Model Number: | D05J4-8 |
| Place of Origin: | China (Mainland) |
| Lightning arrestor: | Blue |
Quick Details
Specifications
APPLICATIONS: CAT5e and CAT5 Compatible 10/100 Base-T Ethernet protection LAN, FDDI,CDDI, ATM PDH, SDH, SPDH Industrial control Guard tour system, Guarding,Burglar Alarm, Parking lot, Car park management, Big data application,CCTV system, Protection for the monitoring system, the leader for safety and security System. RJ45 Ports, IP Camera. 4 ports or 8 ports. 100Bbps | |
FEATURES: Multi. Protection Circuits, Gas-Tube+ TVS technology Dual protection in Common mode and differential Mode TVS array technology, Low capacitance Multi-Strike Capability | |
TECHNICAL PARAMETER: |
|
Model |
D05J4-8 |
Electrical Parameter | |
Max. Continuous operating Voltage Uc |
5V |
Nominal Discharge current(8/20s)in |
3kA |
Max. Discharge Current (8/20s)Imax |
5kA |
Limiting Voltage (10/700s) up |
|
Line-line |
25V |
Line-ground |
500V |
Adapt Transmission rate |
100Mbps |
Insertion Loss |
0.5dB |
Protection Line |
1/2, 3/6 |
Response Time tA |
1ns |
Interface form |
RJ45 |
Protection way |
2 |
Protection port |
8 |
Mechanical characteristics |
|
Dimension |
190(L) 86(W) 44(H)mm |
Weight Per unit |
600g |
IP Code |
IP20 |
Working Conditions |
Temperature: -40 to 80℃, Relative Humidity: ≤95 |
Standards Compliance |
IEC61643-1, RoHS |
