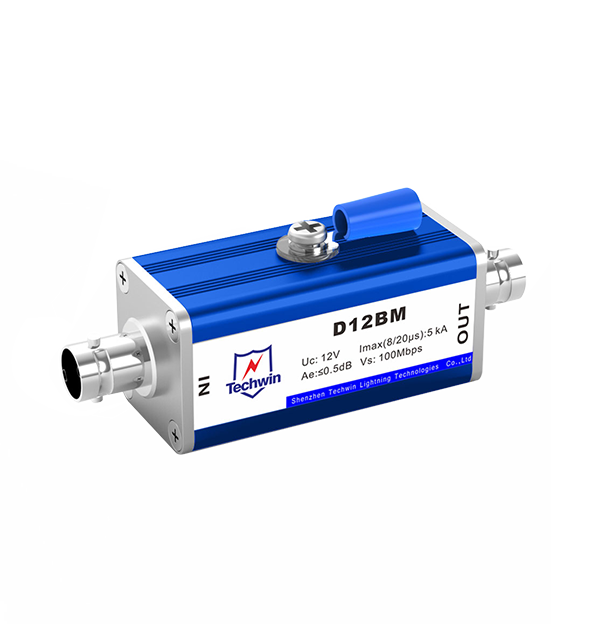

Techwin video Lightning Arrester for analogy camera CCTV system

APPLICATIONS:
Designed for monitor device not to be spoiled by lightning over-voltage, induced over-voltage and static discharge.
Video Camera,CCTV
E1, PDH, SDH, SPDH
Digital hard disk video cassette recorder (DVR)
BNC connector SPD for DVR; NVR
FEATURES:
Multi. Protection circuits, Gas-Tube+ TVS technology
Dual protection in Common module and different module
TVS array technology, low capacitance
Multi-Strike Capability

TECHNICAL PARAMETER:
ModelD12BM
Electrical Parameter
Max. Continuous operating voltage Uc12V
Nominal discharge current(8/20s)In3kA
Max. Discharge current  (8/20s)Imax5kA
Limiting voltage (10/700s) up
Line-line25V
Line-ground500V
Adapt transmission rate100Mbps
Insertion loss≤0.5dB
Response time tA1ns
Interface formBNC
Protection way1
Protection port1
Mechanical characteristics
Dimension54(L) 25(W) 32(H)mm
Weight per unit80g
IP CodeIP40
Working conditionsTemperature: -40 to 80℃,
Relative humidity: ≤95
Standards complianceIEC61643-1, RoHS
