| Brand Name: | Techwin |
|---|---|
| Color: | red |
| mesh size: | 90*54*65mm |
| Mesh wire diameter: | 90*54*65mm |
| Geotextile: | 90*54*65mm |
| Model Number: | M40-1500 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

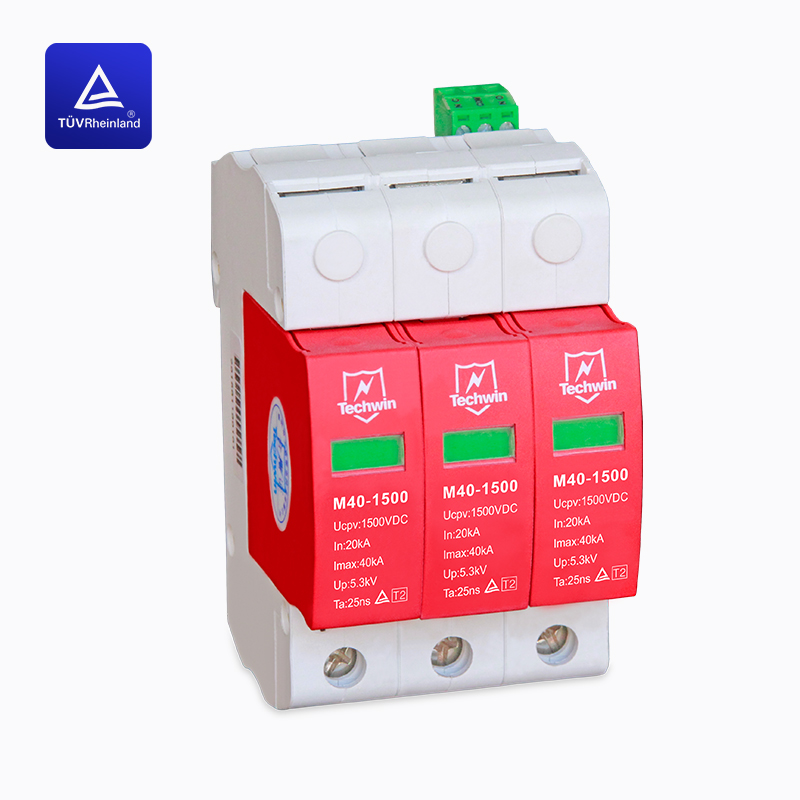

Techwin DIN rail 40kA Class C Surge protection device(SPD)TV certificatedfor Lower than 1500V DC PV system
Model: M40-1500
APPLICATIONS: Suitable for various DC power systems DC power Distribution screen, DC power supply equipment DC Distribution box, electronic information system cabinet Secondary Power supply output PV Junction box PV Invester PV Substation DC Cabinet |
FEATURES: DIN rail Mounting for easy installation Plug Connectors for quick and easy connection or rewiring Thermal Disconnect device Remote Alarm Status Indicator ISO 9001:2008 certificated,ISO14000:2004 Certificated and OHSAS18000:2007 certificated High quality Products with TV, CE, UL certificate First product up to 1500V DC TV certificate
|
TECHNICAL PARAMETER: |
|
Model |
M40-1500 |
Electrical Parameter | |
Max. Continuous operating VoltageUc |
1500VDC |
Nominal Discharge current(8/20s)in |
20kA |
Max. Discharge Current (8/20s)Imax |
40kA |
Limiting Voltage (10/700s)up |
5.3kv |
Response TimeTa |
25ns |
Mechanical characteristics |
|
Dimension |
90*54*65mm |
IP Code |
IP20 |
Working Conditions |
Temperature: -40 to 80℃, Relative humidity: ≤95 |
Mounting |
35mm DIN rail |
Complying Standard |
IEC61643-1, UL 94-V0, RoHS |
Recommend Cross-sectional area |
L/N ≥6mm2 PE≥10mm2 |
