| Output Voltage: | 220v |
|---|---|
| Input Voltage: | 220V |
| Output Type: | Single |
| Output Power: | >500W |
| Brand Name: | Techwin |
| Output Current: | 20/40KA |
| Model Number: | M40B1+N |
| Place of Origin: | China (Mainland) |
| Model: | 40kA Class C surge protection device(SPD)TUV certificated for Single-phase 220V AC system |
| Nominal working voltage Un: | 50/60Hz 220/380V, 230/440V |
| Max. continuous operating voltage Uc: | 385V |
| Nominal discharge current: | 20KA |
| Max. discharge current Imax: | 40KA |
Quick Details
Specifications

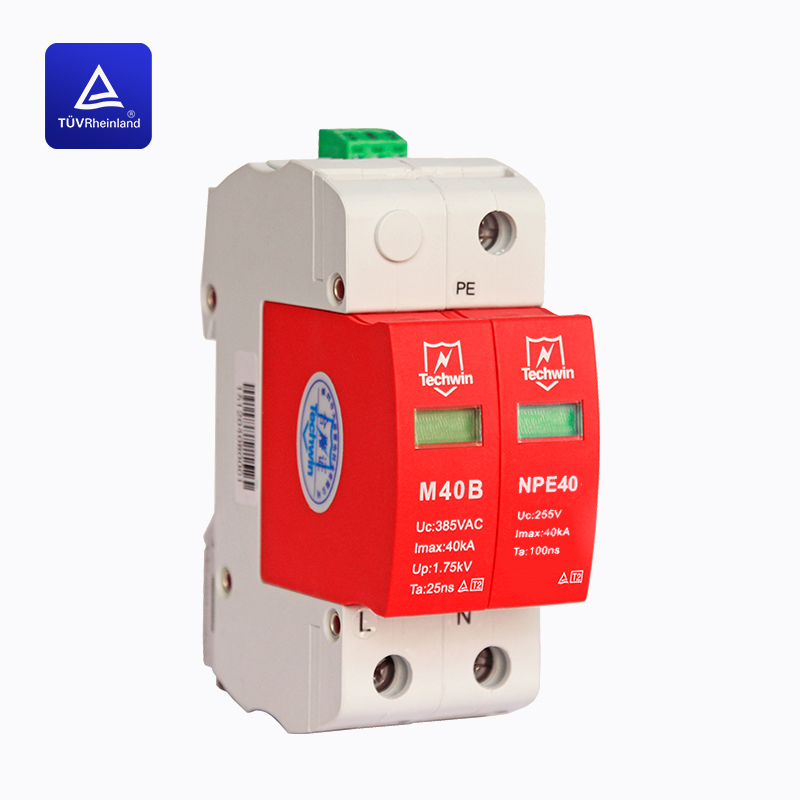

Techwin DIN rail 40kA ClassCSurge protection device(SPD)TV Certificated for Single-phase 220VAC system
Model: M40B1+N
APPLICATIONS:
Class C Surge Protective Device for AC Power System.
A. Power distribution box(cabinet)
B. AC cabinet, cabinet air conditioner,
C. PV inverter, Solar inverter, inverter charger, inverter cabinet
D. Switching mode power supply(SMPS Box, SMPS cabinet), high-frequency switching mode power supply,UPS system
E. Data center, IDC power system, Column head cabinet
F. Charging station/charging point
Sensitive electronic equipment
Pulse width modulation(PWM box)
Automatic control panels, motor control panels
IT,TT,TN-C,TN-S,TN-C-S and other power supply system.
FEATURES:
DIN rail mounting for easy installation
Plug connectors for quick and easy connection or rewiring
40kA maximum surge current
Thermal disconnect device
Status indicators visually verify protection level
Surge protection device with N-PE residual current spark gap as 1+N circuit
ISO 9001:2008 certificated,ISO14000:2004 certificated and OHSAS18000:2007 certificated
High quality products with TV, CE, UL certificate
TECHNICAL PARAMETER: |
|
Model |
M40B1+N |
Electrical parameter | |
Nominal working voltage Un |
50/60Hz 220/380V, 230/440V |
Max. Continuous operating voltage Uc |
385V |
Nominal discharge current(8/20s)in |
20kA |
Max. Discharge current (8/20s)Imax |
40kA |
Protection level @20kA, 8/20s up |
1500V |
Let through voltage @3kA, 8/20s |
800V |
Response time tA |
25ns |
Protection model |
L-N, N-PE |
General data |
|
Dimension |
90 (H)36 (W)65(L)mm |
Weight per unit |
250g |
Mounting |
35mm DIN rail |
Connecting diameter |
≥10mm2 |
IP code |
IP20 |
Working conditions |
Temperature: -40 to 80℃, Relative humidity: ≤95 |
Standards compliance |
IEC61643-1, UL94-V0, ROHS |
