| Brand Name: | Techwin |
|---|---|
| Color: | red |
| mesh size: | 144*90*65mm |
| Mesh wire diameter: | 144*90*65mm |
| Geotextile: | 144*90*65mm |
| Model Number: | M100W-690 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

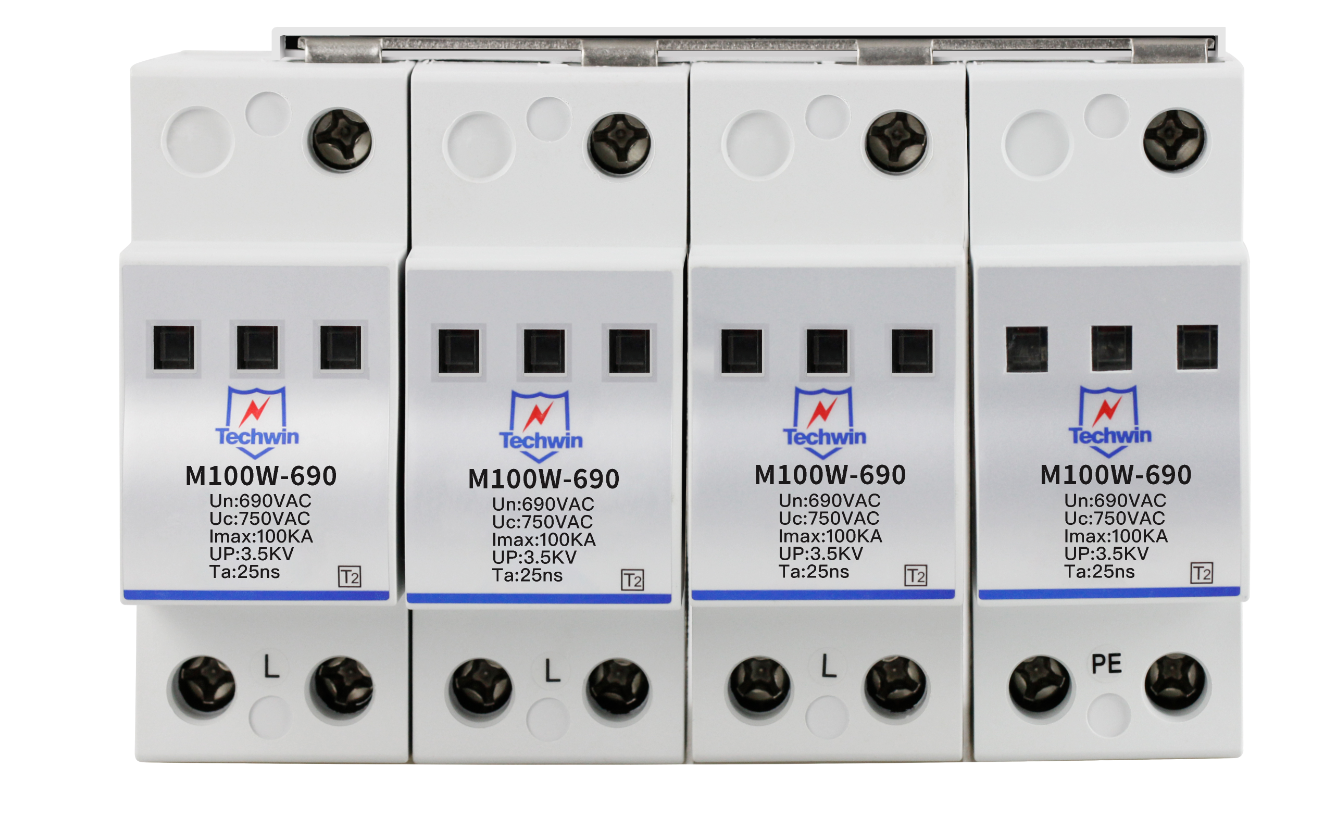

Techwin DIN rail 100kA Class B Surge protection device(SPD)for 400/690VAC Wind power system
Model: M100W-690
APPLICATIONS: Class B Power systems. Applied to wind power protection system. Wind Power generator Low Voltage side of box transformer,US and European box are applicable
|
FEATURES: 1. Adopt temperature control Circuit-breaking technology and built-in overcurrent protection circuit to Completely avoid fire danger 2.Working state and failure state are clear and intuitive. 3.Kevin wiring is workable. 4.Convenient installation and simple maintenance. Exquisite workmanship, can work in harsh environments such as acid, Alkali, dust, salt spray and humidity for a long time. 5.ISO 9001:2008 certificated,ISO14000:2004 certificated and OHSAS18000:2007 Certificated 6.High quality products with CE, ROHS certificatons. |
TECHNICAL PARAMETER: |
|
Model |
M100W-690 |
Electrical Parameter | |
Nominal Working voltage Un |
690v |
Max. Continuous operating VoltageUc |
750VAC |
Nominal Discharge current(8/20s)in |
50kA |
Max. Discharge Current (8/20s)Imax |
100kA |
Protection Level (8/20s)up |
3.5kV@20kA,5.5kV@50kA |
Response TimeTa |
25ns |
Mechanical Characteristics |
|
Dimension |
144*90*65mm |
IP Code |
IP20 |
Working Conditions |
Temperature: -40 to 80℃, Relative humidity: ≤95 |
Mounting |
35mm DIN rail |
Complying Standard |
IEC61643-1, UL 94-V0, RoHS |
Recommend Cross-sectional area |
L/N ≥16mm2 PE≥25mm2 |
