| Brand Name: | Techwin |
|---|---|
| Color: | red |
| mesh size: | 7.4*4.72*3.07cm |
| Mesh wire diameter: | 7.4*4.72*3.07cm |
| Geotextile: | 7.4*4.72*3.07cm |
| Model Number: | HM100F2N-H |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

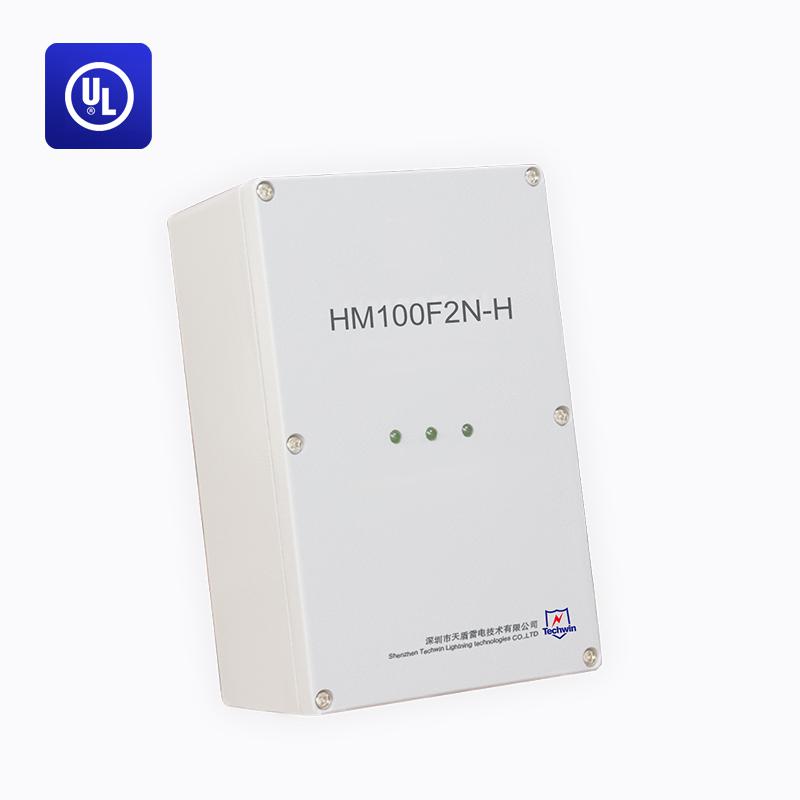

Techwin TVSS 100kA Class B surge protection Device(SPD)withUL certificatedfor 127/220V AC system
HM100F2N-H
APPLICATIONS:
Class B Surge Protective Device for AC Power System.
Power Distribution box(cabinet);AC Cabinet;Column Head cabinet;Charging Station/charging point
CommunicationBase Station
Telecom Centers
Automatic Control centers
Intelligent Buildings
Industrial Enterprises
Medical Institutes
IT,TT,TN-C,TN-S,TN-C-S and other power supply system.
Features:
UL 14494th Edition Listed
Thermal disconnect device
Heat turn-off technology
Temperature control to protect circuit.
STatus indicators
Remote alarm contact, easy to remote Control
Easy to install and simple for maintenance
Built with electromagnetic interference and Radio frequency interference(EMI/RFI) filtering sine wave tracking circuitry
International Famous brand for core component with excellent performance
Technical Parameter
Model |
HM100F2N-H |
Electrical Parameter |
|
Surge Protection Device (SPD) Type to UL |
Type 2 |
Standard compliance |
UL 1449 4th Edition;IEC61643-1;ROHS |
SPD Technology |
MOV |
Nominal operating VoltageUn |
1Φ,127 / 220VAC 3W+G |
Max. Continuous operation voltageUc |
180VAC( L-N) / 280VAC( L-L) |
Nominal discharge current((8/20μs)in |
20kA |
Max. Discharge Current(8/20μs)Imax |
100kA |
Voltage Protection Rating ( VPR) up |
0.9kV(L-N),1.5kV(L-G),0.8kV(N-G) |
Fault Current Rating |
65 kA with no breaker |
Response TimeTa |
25ns |
Protection Mode |
L-N, L-G, N-G |
Temperature & Humidity rating |
Temperature: -20 to 80℃,
(-4-176F) |
Mechanical characteristics |
|
Mounting style |
Parallel Hardwire |
Alarm Type |
Visual& Remote |
Connection terminal(Alarm) hardwire |
#22 AWG |
Connection terminal(SPD) hardwire |
#10AWG |
Dimension(Inches) |
7.4*4.72*3.07(L*W*H) |
Enclosure Type (Outdoor) |
Type 4 Aluminum |
