| Brand Name: | Techwin |
|---|---|
| Color: | blue |
| mesh size: | 83*25*25mm |
| Mesh wire diameter: | 83*25*25mm |
| Geotextile: | 83*25*25mm |
| Model Number: | D05J4 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

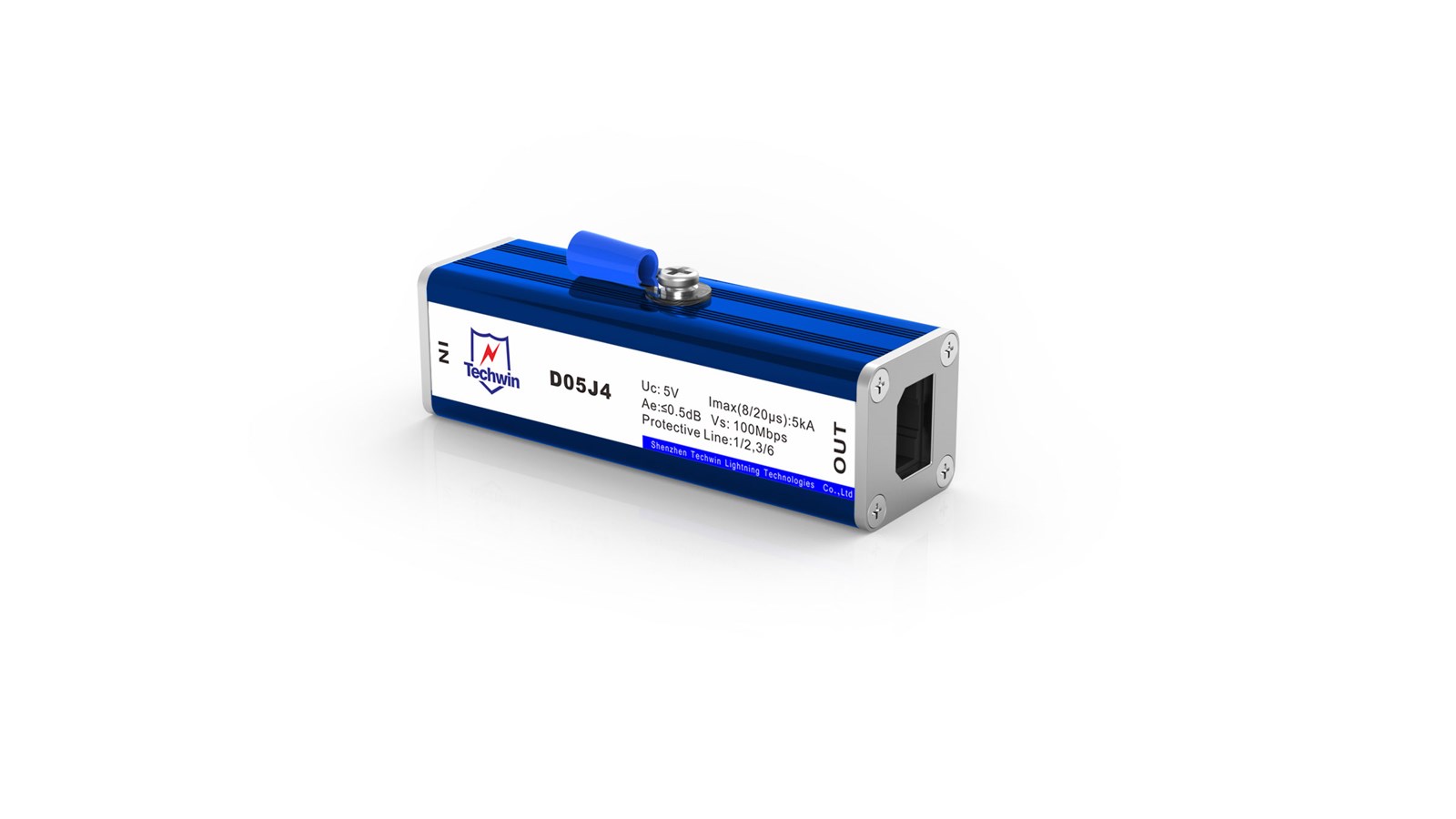

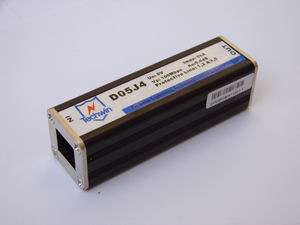

Techwin RJ45 Lightning Arrester(SPD)for cat5e 100 Base-T Ethernet arrester
Model: D05J4
APPLICATIONS: CAT5e and CAT5 Compatible 10/100 Base-T Ethernet protection LAN, FDDI,CDDI, ATM PDH, SDH, SPDH Industrial control lLoss prevention system device; Security system; Security integration. L IASP; VSCS; ESA; ACS; |
FEATURES: Multi. Protection Circuits, Gas-Tube+ TVS technology Dual protection in Common mode and differential Mode TVS array technology, Low capacitance Multi-Strike Capability RJ45 Connector |
TECHNICAL PARAMETER: |
|
Model |
D05J4 |
Electrical Parameter | |
Max. Continuous operating Voltage Uc |
5V |
Nominal Discharge current(8/20s)in |
3kA |
Max. Discharge Current (8/20s)Imax |
5kA |
Limiting Voltage (10/700s) up |
|
Line-line |
25V |
Line-ground |
500V |
Adapt Transmission rate |
100Mbps |
Insertion Loss |
0.5dB |
Protection Line |
1/2, 3/6 |
Response Time tA |
1ns |
Interface form |
RJ45 |
Protection way |
2 |
Protection port |
1 |
Mechanical characteristics |
|
Dimension |
83(L) 25(W) 25(H)mm |
Weight Per unit |
76g |
IP Code |
IP20 |
Working Conditions |
Temperature: -40 to 80℃, Relative Humidity: ≤95 |
Standards Compliance |
IEC61643-1, RoHS |
Why choose us?
Strong R & D team and own lab.
14 years experience on Lighting protection solution.
OEM & ODM services are available.
CE, FCC, ROHS, TUV, UL, ISO certificates.
A number of technology patents
Test reports certificated by the third party.
