| Brand Name: | Techwin |
|---|---|
| Color: | blue |
| mesh size: | 482*86*44mm |
| Mesh wire diameter: | 482*86*44mm |
| Geotextile: | 482*86*44mm |
| Model Number: | D05J4-24 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

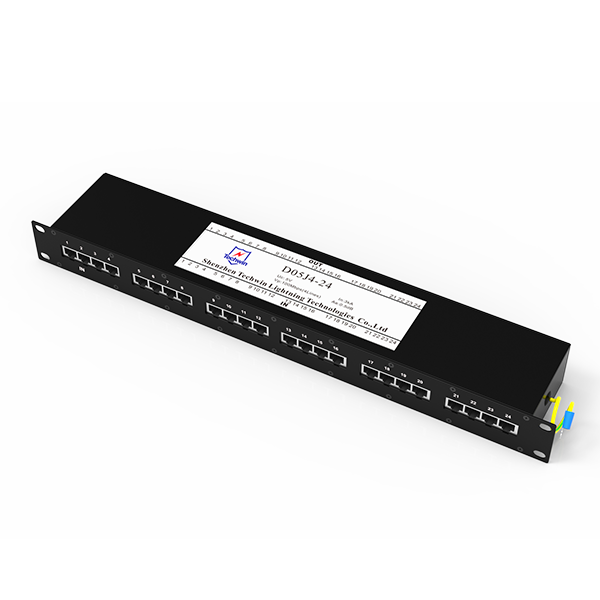

Techwin 19 inch Rack-mounted Switch Surge Arrester cat5e RJ45 protector
Model: D05J4-24
APPLICATIONS: CAT 5e and CAT5 Compatible 10/100 Base-T Ethernet protection LAN, FDDI,CDDI, ATM PDH, SDH, SPDH Industrial control Guard tour system, Guarding,Burglar Alarm, Parking lot, Car park management, Big data application,CCTV system, Protection for the monitoring system, the leader for safety and security System. RJ45 Ports, IP Camera. 24 ports. 100Bbps
|
FEATURES: Multi. Protection Circuits, Gas-Tube+ TVS technology Dual protection in Common module and different Module TVS array technology, Low capacitance Multi-Strike Capability 19 inches Rack-mounted
|
TECHNICAL PARAMETER: |
|
Model |
D05J4-24 |
Electrical Parameter | |
Max. Continuous operating Voltage Uc |
5V |
Nominal Discharge current(8/20s)in |
3kA |
Max. Discharge Current (8/20s)Imax |
5kA |
Limiting Voltage (10/700s) up |
|
Line-line |
20V |
Line-ground |
500V |
Adapt Transmission rate |
100Mbps |
Insertion Loss |
0.5dB |
Protection Line |
1/2, 3/6 |
Response Time tA |
1ns |
Interface form |
RJ45 |
Protection way |
2 |
Protection port |
24 |
Mechanical characteristics |
|
Dimension |
482(L) 86(W) 44(H)mm |
Weight Per unit |
1950g |
IP Code |
IP40 |
Working Conditions |
Temperature: -40 to 85℃, Relative Humidity: ≤95 |
Standards Compliance |
IEC61000, RoHS |
