Quick Details

Brand Name: Techwin
Color: blue
mesh size: 83*25*25mm
Mesh wire diameter: 83*25*25mm
Geotextile: 83*25*25mm
Model Number: D05J8H
Place of Origin: China (Mainland)

Specifications

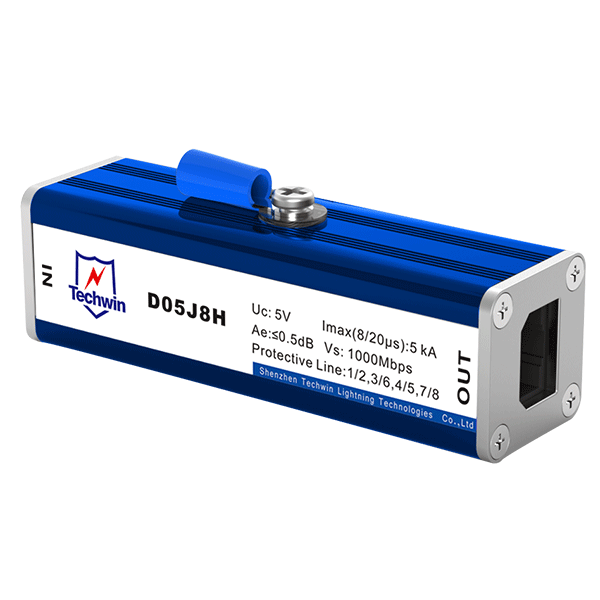

Techwin RJ45 Lightning Arrester for cat5e 1000 BaseT Ethernet arresterTechwin RJ45 Lightning Arrester(SPD)for cat5e 1000 Base-T Ethernet arrester


Model: D05J8H

APPLICATIONS:

L CAT5e and CAT5 Compatible

L 10/100/1000 Base-T Ethernet protection

L LAN, FDDI,CDDI, ATM

L PDH, SDH, SPDH

L Industrial control

l Loss prevention system device; Security system; Security integration.

L IASP; VSCS; ESA; ACS;

FEATURES:

Multi. Protection Circuits, Gas-Tube+ TVS technology

Dual protection in Common mode and differential Mode

TVS array technology, Low capacitance

Multi-Strike Capability


RJ45 Connector

TECHNICAL PARAMETER:



Model

D05J8H

Electrical Parameter

Max. Continuous operating Voltage Uc

5V

Nominal Discharge current(8/20s)in

3kA

Max. Discharge Current (8/20s)Imax

5kA

Limiting Voltage (10/700s) up



Line-line

25V

Line-ground

500V

Adapt Transmission rate

1000Mbps

Insertion Loss

0.5dB

Protection Line

1/2, 3/6,4/5,7/8

Response Time tA

1ns

Interface form

RJ45

Protection way

2

Protection port

1

Mechanical characteristics



Dimension

83(L) 25(W) 25(H)mm

Weight Per unit

76g

IP Code

IP20

Working Conditions

Temperature: -40 to 80℃,

Relative Humidity: ≤95

Standards Compliance

IEC61643-1, RoHS



Why choose us?

  1. Strong R & D team and own lab.

  2. 14 years experience on Lighting protection solution.

  3. OEM & ODM services are available.

  4. CE, FCC, ROHS, TUV, UL, ISO certificates.

  5. A number of technology patents

    Test reports certificated by the third party.
