| Brand Name: | HS |
|---|---|
| color: | Yellow |
| Theory: | Electronic |
| Resolution: | 0.5m |
| Size: | 350mm*280mm*170mm |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

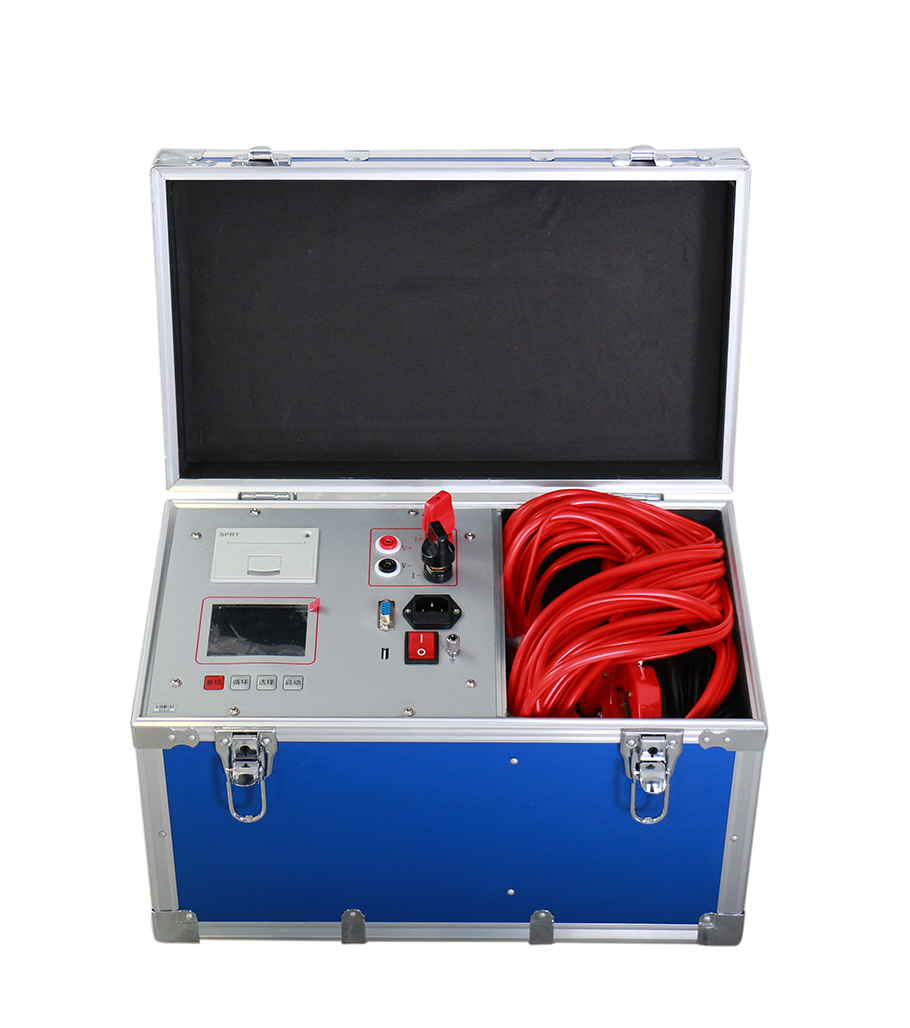

100A 200A 300A DC Contact Resistance Tester Loop Resistance Tester
Loop resistance tester, test current is not less than 100A, continuous current time is not less than one minute. Also suitable for busbars, welds, wires and cables.
Output current: 100A
Work mode: regular or continuous work
Measuring range: 100A: 0 ~ 50mΩ 200A: 0 ~ 10mΩ
Resolution: 0.1μΩ
Measurement accuracy: ± (0.5% + 3 words)
Ambient temperature: -10 C ~ 50 C ≤85% RH
Working power: AC 220V ± 10% 50 ± 1Hz
Loop resistance tester, test current is not less than 100A, continuous current time is not less than one minute. Also suitable for busbars, welds, wires and cables.
Output current: 100A
Work mode: regular or continuous work
Measuring range: 100A: 0 ~ 50mΩ 200A: 0 ~ 10mΩ
Resolution: 0.1μΩ
Measurement accuracy: ± (0.5% + 3 words)
Ambient temperature: -10 C ~ 50 C ≤85% RH
Working power: AC 220V ± 10% 50 ± 1Hz
