| Drawtube: | Monocular |
|---|---|
| Theory: | Video Microscope |
| Brand Name: | EOC |
| Resolution: | 5MP |
| Frame rate: | 60 |
| Model Number: | EC-S3 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Manual 3D digital microscope

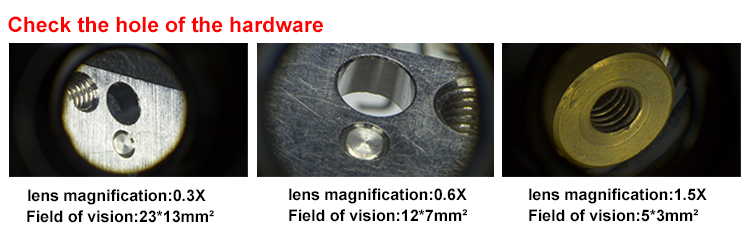

Product effect image:

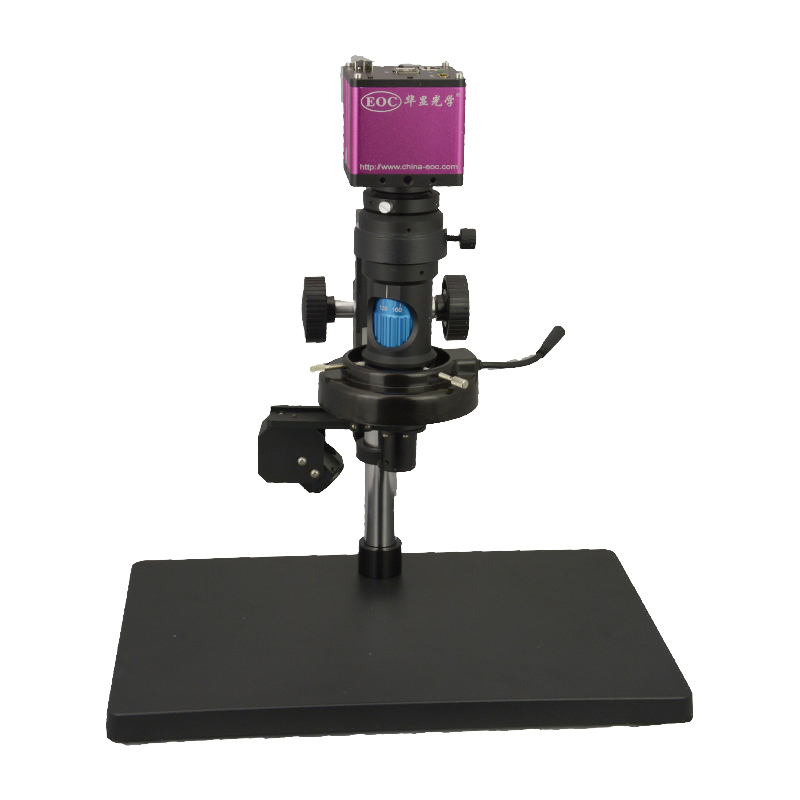

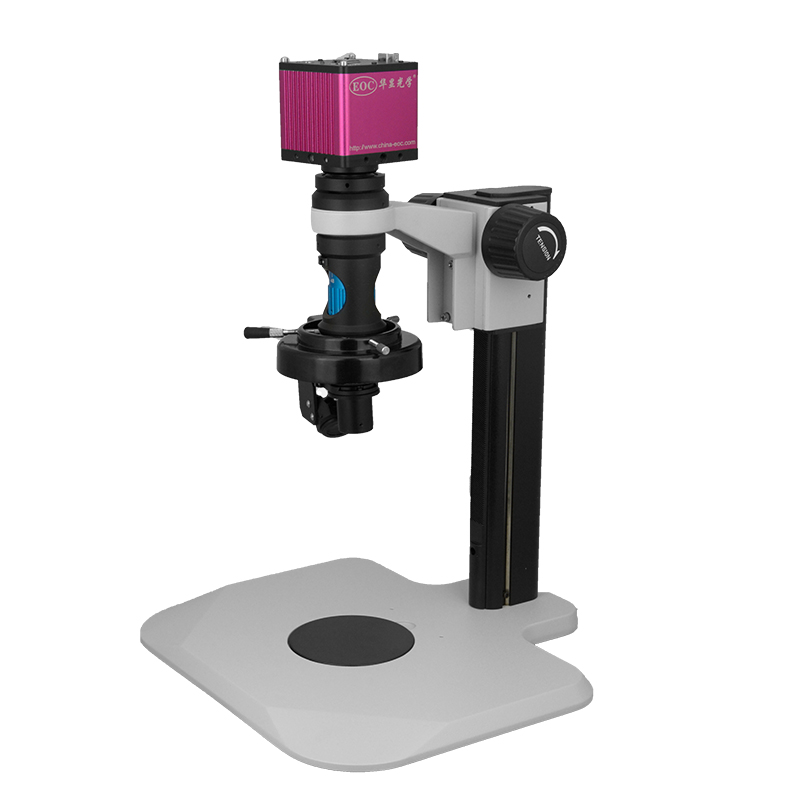

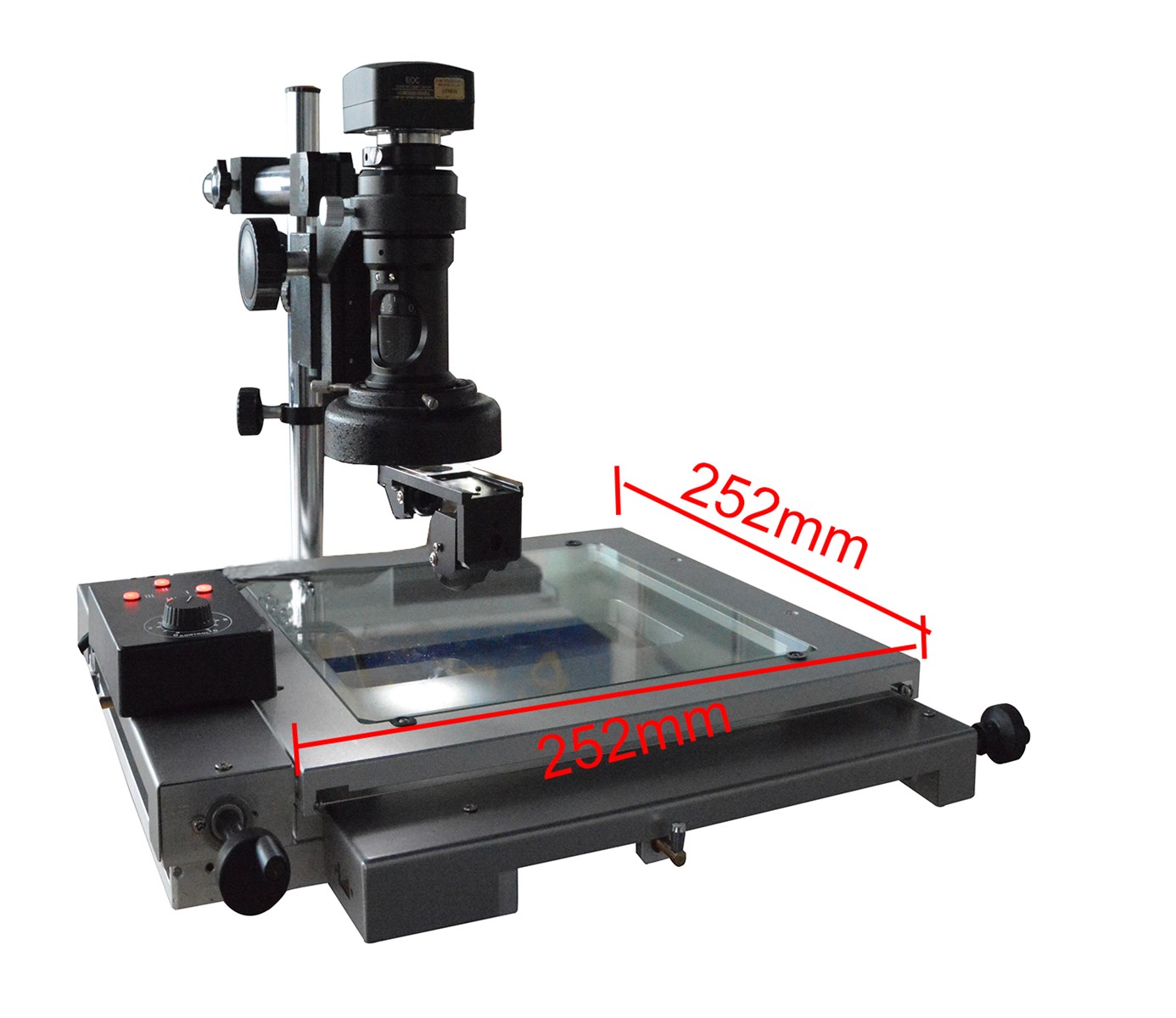

3D digital microscope with difference stand:

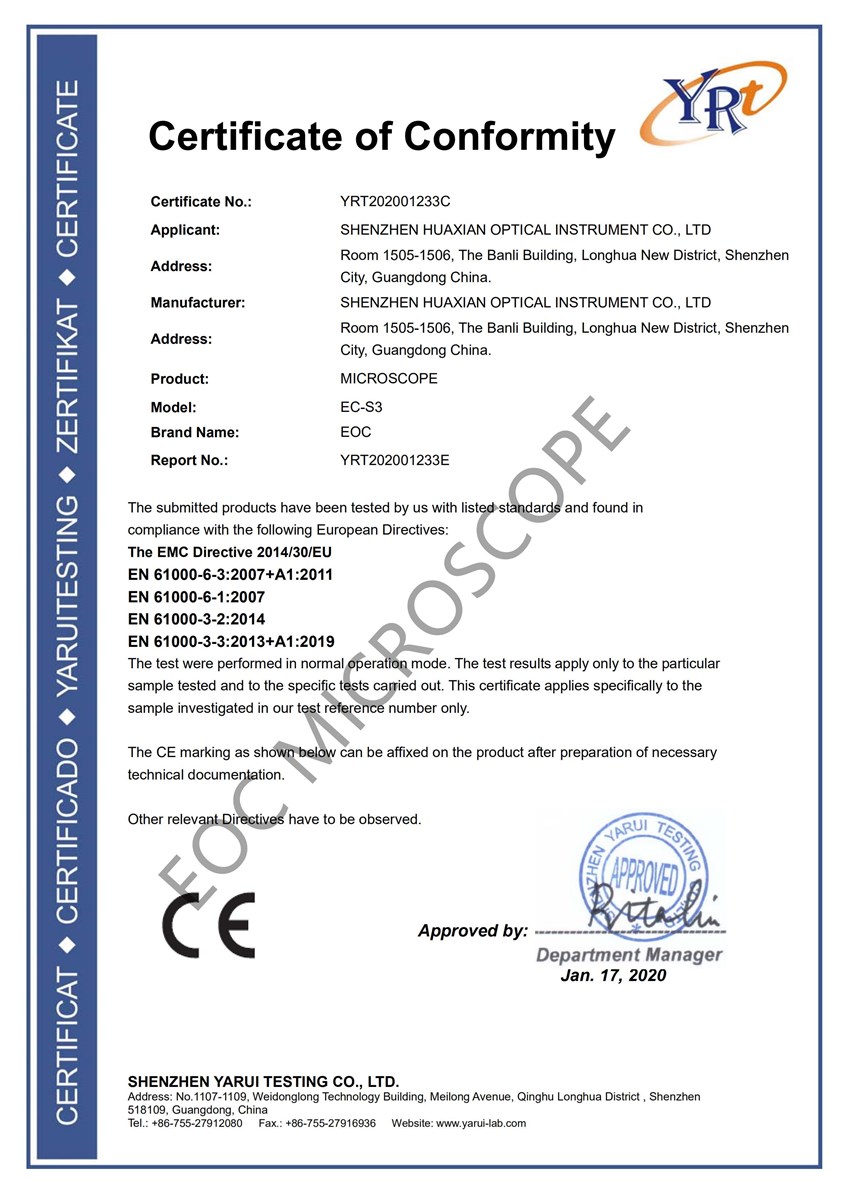

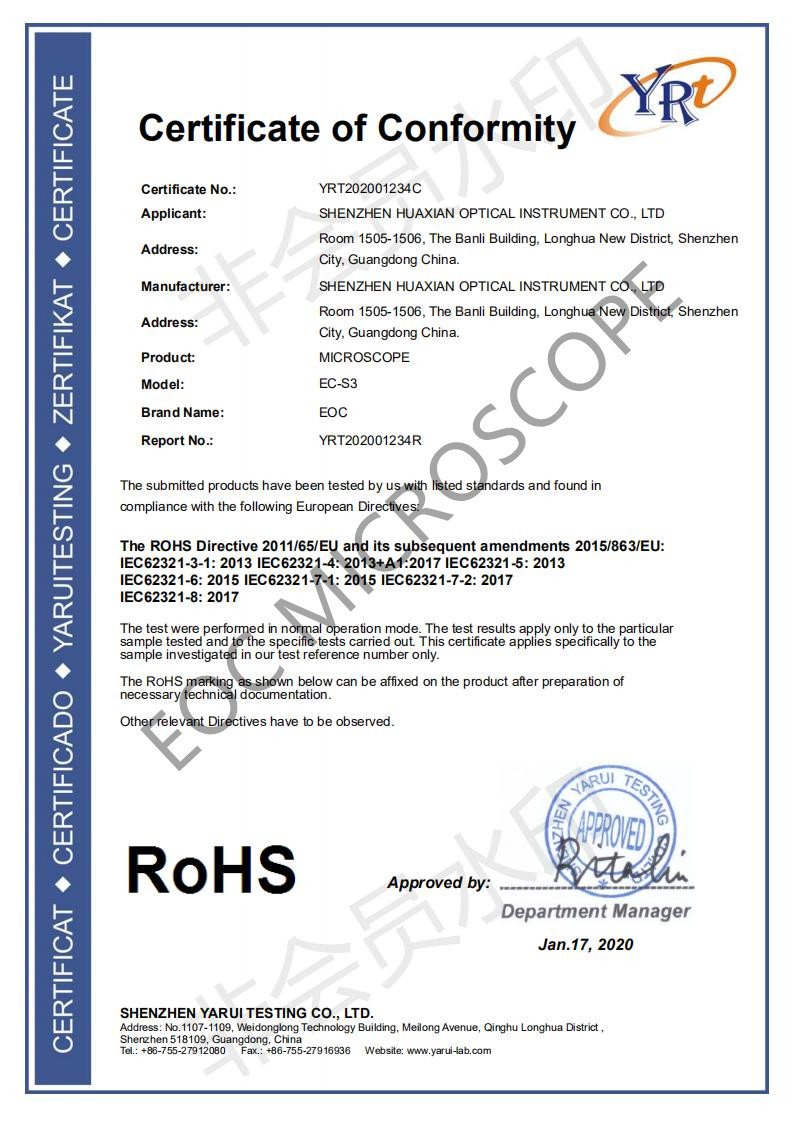

Certificate:
| Item | Digital Microscope 3D observe | |
| Objective | 0.3-2 3D Lens | |
| Zoom Ratio | 7.5 :1 | |
| Digital Magnification | 30 - 180 | |
| Resolution | 19201080(adjustable) 60/FPS | |
| Pixel | 2.0 MP | |
| Image sensor | 1/2.5" | |
| 3D Operation | Manual operation | |
| Automatical operation | ||
| Lighting | 4sides independent control ring LED | |
| Video output | HDMI | |
| Standard monitor | 21" (not included) | |
| WD(Working distance) | 45.66-99mm (95mm is standard) | |
| Base and Lifting parts | Pillar Stand | |
| Base size 360250mm | ||
| Function | 3D-2D exchange, 360° observing Taking photo, Screenshot, USB memory function Manual/Automation White balance RGB 3 primary colors adjustment Statistics, Mark, Label Cross-reference, X/Y 4 reference lines | |
Product effect image:
3D digital microscope with difference stand:
Certificate:
