Product Description

Plate and frame heat exchanger as a patented product of THT (patent no.: 200520127761.X) is one kind of welded plate heat exchanger.the basic components are plate pack, side plate, clamping plate, column, bolt, nut, sealing gasket, partition plate, foot and so on. THT series plate and frame heat exchanger integrates international advanced heat transfer technology and quality. As per user' requirement, THT strictly implements NB/T47004 standard & the pressure vessel standard & American petroleum institute (API662) & American society of mechanical engineers (ASME) standards etc.

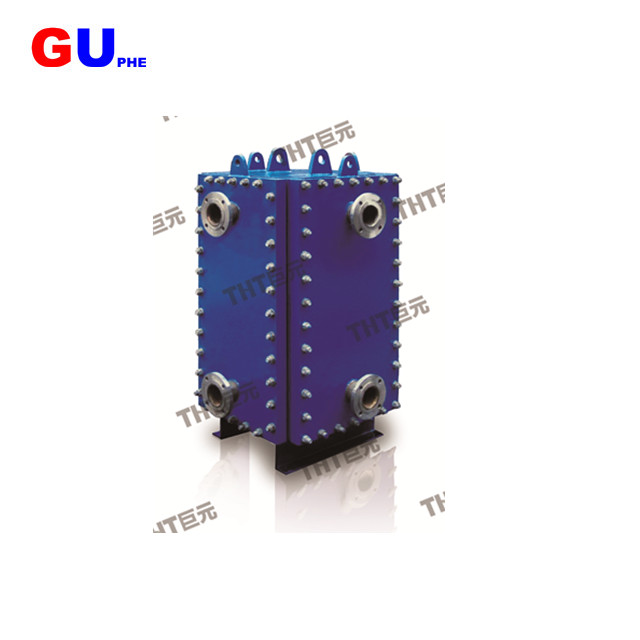

Product Picture





Technical Parameters

Max. Heat exchange area: 800m2

Max. Design pressure: 2.5MPa

Plate thickness≥0.8mm

Max. Installed area: 600m2



Product Feature

High heat transfer coefficient and low resistance, Adaptable in different working conditions, flexible process combination according to different process requirements. Compared with brazed PHE, it has better cleaning performance,high temperature and pressure resistance suitable for special media; smaller space etc.



Product Advantage

High heat transfer coefficient and low pressure drop. the equipment can not only achieve technology heat transfer performance, but also save numerous operating costs in the process of usage.
