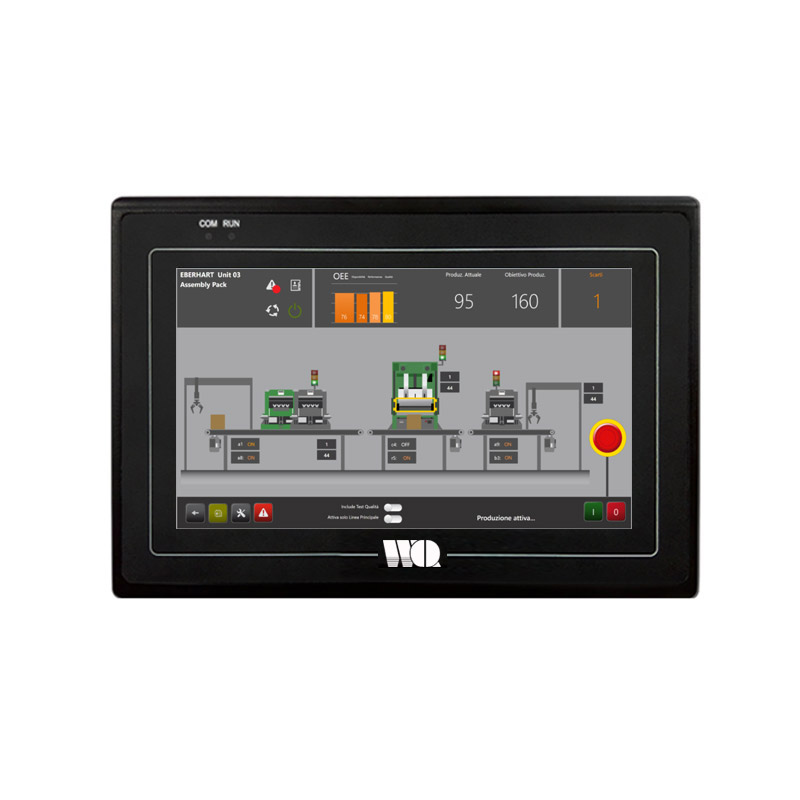

Product   model

WAR-070C-SS10

Basic   parameters

 CPU: Cortex-A9 architecture,4   core, frequency 1.0GHZ

Memory: 1GB DDR3

 Flash:8GB EMMC

Display   screen

 size:7 inch

 Resolution:1024x600

Fargong-tempreature,16,000K colors or 24-bit true color

LED backlight:Liftetime > 25000 hour

Touch   screen

Capacitive touch screen with 5 point   multi-touch

Hareware   interface

1 channel DB9(COM1)

 1 channel 3-wire RS-232 uart(COM2)

1 channel RS-485(COM3)

 1 channel isolating CAN bus(optional)

 1 channel external earial

 1 channel USB Device   interface,Support ADB connect to PC to exchange data and debug application.

2 channel USB Host interface,   support usual USB deivices, such as mouse,keyboard, U disk and so on.

 1 channel 10/100 ethernet.

1 channel TF slot, to support   mini SD card or TF card.

 1 channel audio output   interface.

 1 channel speaker with dual   tracks.

1 channel slot for SIM card   to support 4G.

DC12V~24V power input.

l4G/WiFi/bluetooth module is built-in for option.

OS

Android 4.4.2

Defend   degree

IP65(frontpanel)

Working   environment

 power:DC12V ~ 24V(24V as recommendation),600mA

 Working temperature:-10~60℃

 Storage temperature:-20~85℃

Humidity:1090%RH

size

 Shell structure:plastics

Panel size:206.00142.00(mm)

 Trepanning size:195.6131.6(mm)

Application   Area

Industrial control,Detection device,Instruments and   meters,Security monitoring,Medical apparatus   and instruments, intelligent terminal and so on.

 Support canbus network   deployment.

Software   support

IDE supported:Eclipse+ADT,Android Studio,QT Creator,Visual Studio 2015/2017

Development language: JAVA/C/C++/C#   and so on.

Easy change the user-defined   splash screen.
