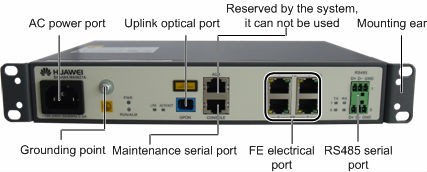

MartAX MA5621A Power Grid ONUsRuggedized Optical Networking Units (ONUs) for automated meter reading in Smart Grid networks. MA5621 and MA5621A ONUs enable remote data collection and video monitoring systems; also suitable for broadband access for high-speed Internet or HDTV for multiple dwelling customers.
Downstream ports support GE or FE connections, with up to 4 x RS485 or RS232 interfaces for connecting to PCs, ammeters, or concentrators. Upstream GPON support complies with ITU G.984 standards.
Anti-electromagnetic interference enclosure, shock resistance, and 6 kV surge protection provide high reliability, making MA5621 Series ONUs an excellent choice for Smart Grid power systems.
Product DescriptionSupport automatic meter-reading Smart Grid applications in multiple dwelling and commercial properties with Huawei SmartAX MA5621 and MA5621A Optical Networking Units
- Full-protection capabilities for PON networks with Type B, Type C, and Type D protection, dual upstream PON ports, and xPON hand-in-hand networking protect against multi-point failures
- Industrial-grade design includes sealed cast aluminum enclosure that protects in temperatures ranging from 40°C to 85°C, provides shock resistance and anti-electromagnetic interference
- Built-in 6 kV surge protection
- Highly efficient operations, administration, and maintenance with one-stop deployment, plug and play, automatic configuration, remote monitoring, and maintenance of devices
Specifications
MA5621
MA5621A
Dimensions (H x W x D)
44.4 mm x 235 mm x 180 mm
43.6 mm x 250 mm x 180 mm
Operating
Environment
40°C to +85°C
5% RH to 95% RH
40°C to +55°C
5% RH to 95% RH
Power
AC: 220V/110V
DC: 12V/24V/48V
AC: 220V/110V
Network-side Ports
2 x GPON
2 x GE (optical)
1 x GE + 1 x GPON
1 x GPON
User-side Ports
4 x GE/FE + 4 x RS485/RS232
4 x FE + 2 x RS485
Surge Protection
Power port: 6 kV
GE: 6 kV
Power port: 6 kV
GE: 6 kV
POTS: 4 kV
Weight
0.5 kg
1.5 kg
